Tefcold's Cold Room Panels 80 mm - CR 150x240x220 are designed to provide optimal insulation and flexibility for commercial kitchens. Constructed with high-quality materials, these panels offer easy assembly and customization options to suit your specific needs.With their interlocking connection system, you can quickly and easily assemble the panels to create a seamless cold room environment. The 80 mm panel insulation ensures efficient temperature control, while the modular design allows for easy reconfiguration as needed.Technical specificationsOnly panels - without cooling unit Interlocking connection system 80 mm panel insulation Many customisation possibilities Easy access to products Easy assembly Anti-slip floor in SS304 stainless steel Shelves available as accessory Ramp available as accessory for easy accessOur range of cold room panels are available with 80 mm or 120 mm of effective polyurethane insulation and comes in various sizes. They have an easy interlocking system which makes assembly quick and hassle-free. The modular panels are interchangeable, so you can move the position of the door and adapt the room to fit your needs. Monoblock refrigeration units can be ordered separately.Technical specificationsMeasures and Content
Gross / Net Weight:
246 / 226 kg
40ft Container Load :
14 pcs
Internal Volume:
6.12 m³
Design and Material
Exterior Finish:
White
Interior Finish:
White
Door No & Type:
1 hinged solid door
Door Reversible:
Yes
Lock:
Yes
Dimensions
External Dimension (WxDxH):
1500 x 2400 x 2200
mm
Internal Dimension (WxDxH):
1340 x 2240 x 2040 mm
Packed Dimension (WxDxH):
2200 x 1600 x 1280 mm
Other
GTIN / EAN:
5708181711894
Insulation Density:
42 kg/m³
Wall Thickness:
80 mm
Max Load on Floor:
1500 kg/m²
Plug-In - ready after assembly Many customisation possibilities Easy access to products Freezing unit Easy assembly 120 mm panel insulation Anti-slip floor in SS304 stainless steel Strip curtain included Alarm kit as accessory Shelves available as accessory Ramp available as accessory for easy accessThe CRNF range of freezer rooms can be used in both restaurants, delis, cafes, retail stores etc. They are a great way to create optimal and efficient freezing space at a very affordable price. The modular panel rooms are easy to assemble and come in many different sizes, so you can get a perfect fit for your business. Also available in a cooler version.Technical specificationsMeasures and Content
Gross / Net Weight:
550 / 520 kg
40ft Container Load :
12 pcs
Internal Volume:
3.85 m³
Design and Material
Exterior Finish:
White
Interior Finish:
White
Door No & Type:
1 hinged solid door W:700 H:1765
Door Reversible:
Yes
Lock:
Yes
Interior Light:
LED
Cooling and Functions
Type of Controller:
Electronic
Type of Defrost:
Automatic, hot gas
Refrigerant:
R290
Refrigerant Charge:
150 g
Power and Consumption
Energy Consumption:
22.49 kWh/24h
Annual Energy Cons.:
8208 kWh/year
Input Power:
1100 W
Voltage / Frequency:
220-240/50 V/Hz
Noise Level:
60 dB(A)
Dimensions
External Dimension (WxDxH):
1800 x 1500 x 2200
mm
Internal Dimension (WxDxH):
1560 x 1260 x 1960 mm
Packed Dimension (WxDxH):
2200 x 1600 x 2400 mm
Other
GTIN / EAN:
5708181711641
Temperature Range:
-20 to -10 °C
Insulation Density:
42 kg/m³
Thermometer:
Yes
Wall Thickness:
120 mm
Max Load on Floor:
2000 kg/m²
Technical specificationsPlug-In - ready after assembly Many customisation possibilities Easy access to products Freezing unit Easy assembly 120 mm panel insulation Anti-slip floor in SS304 stainless steel Strip curtain included Alarm kit as accessory Shelves available as accessory Ramp available as accessory for easy accessThe CRNF range of freezer rooms can be used in both restaurants, delis, cafes, retail stores etc. They are a great way to create optimal and efficient freezing space at a very affordable price. The modular panel rooms are easy to assemble and come in many different sizes, so you can get a perfect fit for your business. Also available in a cooler version.Technical specificationsMeasures and Content
Gross / Net Weight:
550 / 520 kg
40ft Container Load :
12 pcs
Internal Volume:
3.85 m³
Design and Material
Exterior Finish:
White
Interior Finish:
White
Door No & Type:
1 hinged solid door W:700 H:1765
Door Reversible:
Yes
Lock:
Yes
Interior Light:
LED
Cooling and Functions
Type of Controller:
Electronic
Type of Defrost:
Automatic, hot gas
Refrigerant:
R290
Refrigerant Charge:
150 g
Power and Consumption
Energy Consumption:
22.49 kWh/24h
Annual Energy Cons.:
8208 kWh/year
Input Power:
1100 W
Voltage / Frequency:
220-240/50 V/Hz
Noise Level:
60 dB(A)
Dimensions
External Dimension (WxDxH):
1800 x 1500 x 2200
mm
Internal Dimension (WxDxH):
1560 x 1260 x 1960 mm
Packed Dimension (WxDxH):
2200 x 1600 x 2400 mm
Other
GTIN / EAN:
5708181711641
Temperature Range:
-20 to -10 °C
Insulation Density:
42 kg/m³
Thermometer:
Yes
Wall Thickness:
120 mm
Max Load on Floor:
2000 kg/m²
Black finish Ventilated cooling Anti mist front glass Multiplexing kit as accessory LED top light Stainless steel bumper bars Excellent product visibility Glass front lifts up for easy cleaning Stainless steel rear shelfThe SOC corner modules offer the opportunity of creating complete counter solutions in combination with other serve over counters from the same range. Choose between 45° or 90° counter displays for your perfect counter installation.Technical specificationsMeasures and Content
Gross / Net Weight:
290 / 245 kg
40ft Container Load :
8 pcs
Gross / Net Volume:
/ 155 l
Climate Class:
3
Design and Material
Exterior Finish:
Black RAL9005
Interior Finish:
Stainless Steel
Feet / Legs:
Adjustable feet
Interior Light:
LED
Cooling and Functions
Type of Controller:
Electronic
Type of Cooling:
Ventilated
Type of Defrost:
Automatic, electric
Refrigerant:
R290
Refrigerant Charge:
150 g
Power and Consumption
Energy Consumption:
5.98 kWh/24h
Annual Energy Cons.:
2182.7 kWh/year
Input Power:
530 W
Voltage / Frequency:
220-240/50 V/Hz
Noise Level:
60 dB(A)
Dimensions
External Dimension (WxDxH):
x 1120 x 1190
mm
Internal Dimension (WxDxH):
x 900 x 545 mm
Packed Dimension (WxDxH):
1500 x 1450 x 1400 mm
Other
GTIN / EAN:
5708181754167
Total Display Area:
1.65 m²
Temperature Range:
0 to +4 °C
Insulation Density:
50 kg/m³
Thermometer:
Yes
Max Ambient:
+25°C, 60% RH
Technical specificationsBlack finish Ventilated cooling Anti mist front glass Multiplexing kit as accessory LED top light Stainless steel bumper bars Excellent product visibility Glass front lifts up for easy cleaning Stainless steel rear shelfThe SOC corner modules offer the opportunity of creating complete counter solutions in combination with other serve over counters from the same range. Choose between 45° or 90° counter displays for your perfect counter installation.Technical specificationsMeasures and Content
Gross / Net Weight:
290 / 245 kg
40ft Container Load :
8 pcs
Gross / Net Volume:
/ 155 l
Climate Class:
3
Design and Material
Exterior Finish:
Black RAL9005
Interior Finish:
Stainless Steel
Feet / Legs:
Adjustable feet
Interior Light:
LED
Cooling and Functions
Type of Controller:
Electronic
Type of Cooling:
Ventilated
Type of Defrost:
Automatic, electric
Refrigerant:
R290
Refrigerant Charge:
150 g
Power and Consumption
Energy Consumption:
5.98 kWh/24h
Annual Energy Cons.:
2182.7 kWh/year
Input Power:
530 W
Voltage / Frequency:
220-240/50 V/Hz
Noise Level:
60 dB(A)
Dimensions
External Dimension (WxDxH):
x 1120 x 1190
mm
Internal Dimension (WxDxH):
x 900 x 545 mm
Packed Dimension (WxDxH):
1500 x 1450 x 1400 mm
Other
GTIN / EAN:
5708181754167
Total Display Area:
1.65 m²
Temperature Range:
0 to +4 °C
Insulation Density:
50 kg/m³
Thermometer:
Yes
Max Ambient:
+25°C, 60% RH
Plug-In - ready after assembly Many customisation possibilities Easy access to products Easy assembly Anti-slip floor in SS304 stainless steel 80 mm panel insulation Shelves available as accessory Ramp available as accessory for easy accessThe CRPF range of cold rooms can be used in both restaurants, delis, cafes etc. They are a great way to create optimal and efficient cooling space at a very affordable price. Cold rooms are a perfect and easy accessable way to store foods, dairy products and beverages.Technical specificationsMeasures and Content
Gross / Net Weight:
362 / 332 kg
40ft Container Load :
14 pcs
Internal Volume:
4.48 m³
Design and Material
Exterior Finish:
White
Interior Finish:
White
Door No & Type:
1 hinged solid door W:700 H:1845
Door Reversible:
Yes
Lock:
Yes
Interior Light:
LED
Cooling and Functions
Type of Controller:
Electronic
Type of Defrost:
Automatic, hot gas
Refrigerant:
R290
Refrigerant Charge:
130 g
Power and Consumption
Energy Consumption:
17.93 kWh/24h
Annual Energy Cons.:
6545 kWh/year
Input Power:
830 W
Voltage / Frequency:
220-240/50 V/Hz
Noise Level:
60 dB(A)
Dimensions
External Dimension (WxDxH):
1800 x 1500 x 2200
mm
Internal Dimension (WxDxH):
1640 x 1340 x 2040 mm
Packed Dimension (WxDxH):
2200 x 1300 x 2400 mm
Other
GTIN / EAN:
5708181711597
Temperature Range:
0 to +8 °C
Insulation Density:
42 kg/m³
Thermometer:
Yes
Wall Thickness:
80 mm
Max Load on Floor:
1500 kg/m²
Technical specificationsPlug-In - ready after assembly Many customisation possibilities Easy access to products Easy assembly Anti-slip floor in SS304 stainless steel 80 mm panel insulation Shelves available as accessory Ramp available as accessory for easy accessThe CRPF range of cold rooms can be used in both restaurants, delis, cafes etc. They are a great way to create optimal and efficient cooling space at a very affordable price. Cold rooms are a perfect and easy accessable way to store foods, dairy products and beverages.Technical specificationsMeasures and Content
Gross / Net Weight:
362 / 332 kg
40ft Container Load :
14 pcs
Internal Volume:
4.48 m³
Design and Material
Exterior Finish:
White
Interior Finish:
White
Door No & Type:
1 hinged solid door W:700 H:1845
Door Reversible:
Yes
Lock:
Yes
Interior Light:
LED
Cooling and Functions
Type of Controller:
Electronic
Type of Defrost:
Automatic, hot gas
Refrigerant:
R290
Refrigerant Charge:
130 g
Power and Consumption
Energy Consumption:
17.93 kWh/24h
Annual Energy Cons.:
6545 kWh/year
Input Power:
830 W
Voltage / Frequency:
220-240/50 V/Hz
Noise Level:
60 dB(A)
Dimensions
External Dimension (WxDxH):
1800 x 1500 x 2200
mm
Internal Dimension (WxDxH):
1640 x 1340 x 2040 mm
Packed Dimension (WxDxH):
2200 x 1300 x 2400 mm
Other
GTIN / EAN:
5708181711597
Temperature Range:
0 to +8 °C
Insulation Density:
42 kg/m³
Thermometer:
Yes
Wall Thickness:
80 mm
Max Load on Floor:
1500 kg/m²
850 mm wide door Plug-In - ready after assembly 120 mm panel insulation Freezing unit Easy assembly Interlocking connection system Anti-slip floor in SS304 stainless steel Strip curtain included Alarm kit as accessory Door position is fixed Shelves available as accessory Ramp available as accessory for easy accessThe CRNF range of freezer rooms can be used in both restaurants, delis, cafes, retail stores etc. They are a great way to create optimal and efficient freezing space at a very affordable price. The modular panel rooms are easy to assemble and come in many different sizes, so you can get a perfect fit for your business. Also available in a cooler version.Technical specificationsMeasures and Content
Gross / Net Weight:
865 / 835 kg
40ft Container Load :
3 pcs
Internal Volume:
14.93 m³
Design and Material
Exterior Finish:
White
Interior Finish:
White
Door No & Type:
1 hinged solid door
Door Reversible:
Yes
Lock:
Yes
Interior Light:
LED
Cooling and Functions
Type of Controller:
Electronic
Type of Defrost:
Automatic, hot gas
Refrigerant:
R290
Refrigerant Charge:
200 g
Power and Consumption
Energy Consumption:
31.78 kWh/24h
Annual Energy Cons.:
11598 kWh/year
Input Power:
1630 W
Voltage / Frequency:
220-240/50 V/Hz
Noise Level:
60 dB(A)
Dimensions
External Dimension (WxDxH):
3000 x 3000 x 2200
mm
Internal Dimension (WxDxH):
2760 x 2760 x 1960 mm
Packed Dimension (WxDxH):
1900 x 3100 x 1600 mm
Other
GTIN / EAN:
5708181711672
Temperature Range:
-20 to -10 °C
Insulation Density:
42 kg/m³
Thermometer:
Yes
Wall Thickness:
120 mm
Max Load on Floor:
2000 kg/m²
Technical specifications850 mm wide door Plug-In - ready after assembly 120 mm panel insulation Freezing unit Easy assembly Interlocking connection system Anti-slip floor in SS304 stainless steel Strip curtain included Alarm kit as accessory Door position is fixed Shelves available as accessory Ramp available as accessory for easy accessThe CRNF range of freezer rooms can be used in both restaurants, delis, cafes, retail stores etc. They are a great way to create optimal and efficient freezing space at a very affordable price. The modular panel rooms are easy to assemble and come in many different sizes, so you can get a perfect fit for your business. Also available in a cooler version.Technical specificationsMeasures and Content
Gross / Net Weight:
865 / 835 kg
40ft Container Load :
3 pcs
Internal Volume:
14.93 m³
Design and Material
Exterior Finish:
White
Interior Finish:
White
Door No & Type:
1 hinged solid door
Door Reversible:
Yes
Lock:
Yes
Interior Light:
LED
Cooling and Functions
Type of Controller:
Electronic
Type of Defrost:
Automatic, hot gas
Refrigerant:
R290
Refrigerant Charge:
200 g
Power and Consumption
Energy Consumption:
31.78 kWh/24h
Annual Energy Cons.:
11598 kWh/year
Input Power:
1630 W
Voltage / Frequency:
220-240/50 V/Hz
Noise Level:
60 dB(A)
Dimensions
External Dimension (WxDxH):
3000 x 3000 x 2200
mm
Internal Dimension (WxDxH):
2760 x 2760 x 1960 mm
Packed Dimension (WxDxH):
1900 x 3100 x 1600 mm
Other
GTIN / EAN:
5708181711672
Temperature Range:
-20 to -10 °C
Insulation Density:
42 kg/m³
Thermometer:
Yes
Wall Thickness:
120 mm
Max Load on Floor:
2000 kg/m²

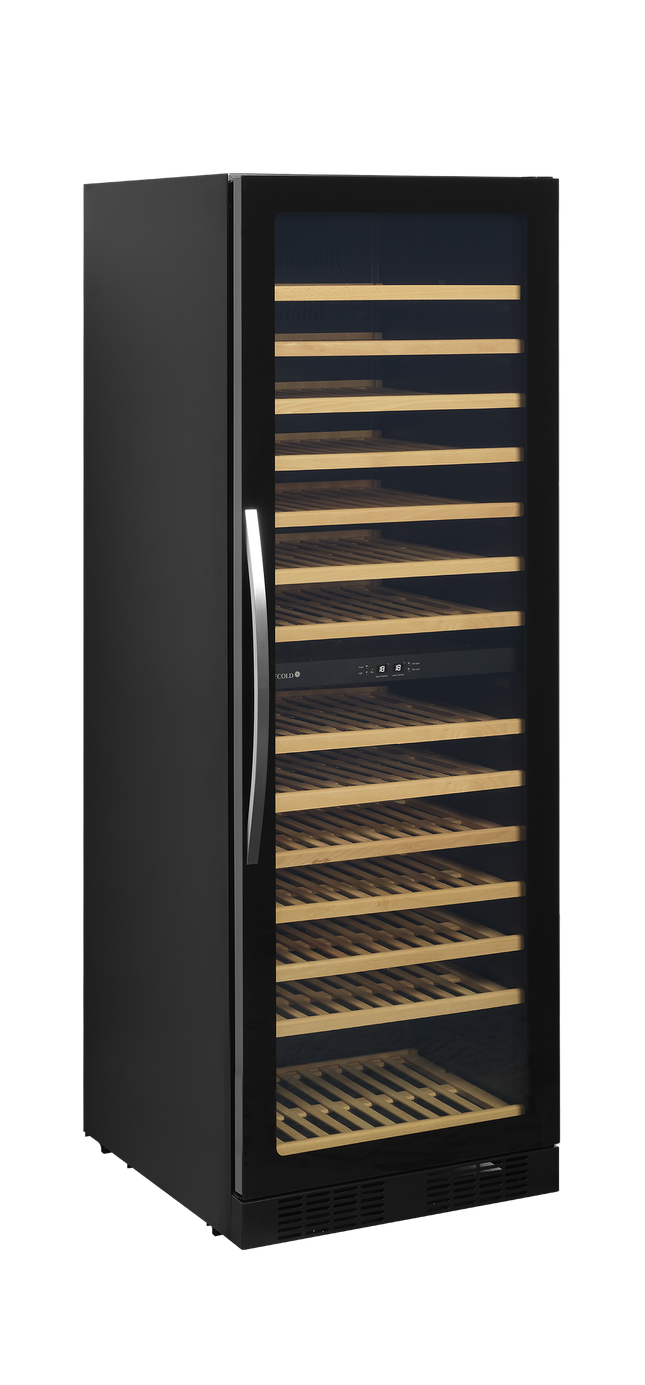

Frameless glass door 2 temperature zones with a max. of 10°C variation Energy efficient cooling system Very low noise level LED interior light with switch Reversible door Curved stainless steel handle Wooden shelves High/low temperature alarm Presentation shelves available as optionThe TFW-F range of frameless wine display coolers offers an elegant solution to storing and displaying wine. It has a contemporary design with an edge-to-edge glass door, soft LED lighting, and slide out wooden shelves. The wine cooler also features a modern cooling system that reduces the heat, noise, and energy consumption of the cabinet.Technical specificationsMeasures and Content
Gross / Net Weight:
111 / 106 kg
40ft Container Load :
54 pcs
Gross / Net Volume:
416 / 350 l
Climate Class:
4
Wine Bottles 750 ml:
163 pcs
Design and Material
Exterior Finish:
Black
Interior Finish:
Black ABS
Door No & Type:
1 hinged frameless door
Door Reversible:
Yes
Feet / Legs:
4 adjustable feet
Lock:
Yes
Interior Light:
LED
Cooling and Functions
Type of Controller:
Electronic
Type of Cooling:
Fan assisted
Type of Defrost:
Automatic
Refrigerant:
R600a
Refrigerant Charge:
55 g
Power and Consumption
Energy Class:
G
Energy Consumption:
0.48 kWh/24h
Annual Energy Cons.:
175 kWh/year
EEI:
167 %
Input Power:
220 W
Voltage / Frequency:
220-240/50 V/Hz
Noise Level:
40 dB(A)
Dimensions
External Dimension (WxDxH):
595 x 680 x 1760
mm
Internal Dimension (WxDxH):
515 x 532 x 1585 mm
Packed Dimension (WxDxH):
650 x 760 x 2000 mm
Other
GTIN / EAN:
5708181995102
Temperature Range:
+5 to +10 / +10 to +18 °C
Shelves No & Type:
14 wooden wine shelves
Max load on Shelves:
35 kg/m²
Thermometer:
Yes
EPREL No:
734371
Max Ambient:
+30°C, 55% RH
Technical specificationsFrameless glass door 2 temperature zones with a max. of 10°C variation Energy efficient cooling system Very low noise level LED interior light with switch Reversible door Curved stainless steel handle Wooden shelves High/low temperature alarm Presentation shelves available as optionThe TFW-F range of frameless wine display coolers offers an elegant solution to storing and displaying wine. It has a contemporary design with an edge-to-edge glass door, soft LED lighting, and slide out wooden shelves. The wine cooler also features a modern cooling system that reduces the heat, noise, and energy consumption of the cabinet.Technical specificationsMeasures and Content
Gross / Net Weight:
111 / 106 kg
40ft Container Load :
54 pcs
Gross / Net Volume:
416 / 350 l
Climate Class:
4
Wine Bottles 750 ml:
163 pcs
Design and Material
Exterior Finish:
Black
Interior Finish:
Black ABS
Door No & Type:
1 hinged frameless door
Door Reversible:
Yes
Feet / Legs:
4 adjustable feet
Lock:
Yes
Interior Light:
LED
Cooling and Functions
Type of Controller:
Electronic
Type of Cooling:
Fan assisted
Type of Defrost:
Automatic
Refrigerant:
R600a
Refrigerant Charge:
55 g
Power and Consumption
Energy Class:
G
Energy Consumption:
0.48 kWh/24h
Annual Energy Cons.:
175 kWh/year
EEI:
167 %
Input Power:
220 W
Voltage / Frequency:
220-240/50 V/Hz
Noise Level:
40 dB(A)
Dimensions
External Dimension (WxDxH):
595 x 680 x 1760
mm
Internal Dimension (WxDxH):
515 x 532 x 1585 mm
Packed Dimension (WxDxH):
650 x 760 x 2000 mm
Other
GTIN / EAN:
5708181995102
Temperature Range:
+5 to +10 / +10 to +18 °C
Shelves No & Type:
14 wooden wine shelves
Max load on Shelves:
35 kg/m²
Thermometer:
Yes
EPREL No:
734371
Max Ambient:
+30°C, 55% RH
Black finish Ventilated cooling Anti mist front glass Multiplexing kit as accessory LED top light Stainless steel bumper bars Excellent product visibility Glass front lifts up for easy cleaning Stainless steel rear shelfThe SOC corner modules offer the opportunity of creating complete counter solutions in combination with other serve over counters from the same range. Choose between 45° or 90° counter displays for your perfect counter installation.Technical specificationsMeasures and Content
Gross / Net Weight:
235 / 190 kg
40ft Container Load :
8 pcs
Gross / Net Volume:
/ 345 l
Climate Class:
3
Design and Material
Exterior Finish:
Black RAL9005
Interior Finish:
Stainless Steel
Feet / Legs:
Adjustable feet
Interior Light:
LED
Cooling and Functions
Type of Controller:
Electronic
Type of Defrost:
Automatic, electric
Refrigerant:
R290
Refrigerant Charge:
150 g
Type of Cooling:
Ventilated
Power and Consumption
Energy Consumption:
4.6 kWh/24h
Annual Energy Cons.:
1679 kWh/year
Input Power:
315 W
Voltage / Frequency:
220-240/50 V/Hz
Noise Level:
60 dB(A)
Dimensions
External Dimension (WxDxH):
x 1120 x 1190
mm
Internal Dimension (WxDxH):
x 900 x 545 mm
Packed Dimension (WxDxH):
1500 x 1450 x 1400 mm
Other
GTIN / EAN:
5708181754143
Total Display Area:
1.07 m²
Temperature Range:
0 to +4 °C
Insulation Density:
50 kg/m³
Thermometer:
Yes
Max Ambient:
+25°C, 60% RH
Technical specificationsBlack finish Ventilated cooling Anti mist front glass Multiplexing kit as accessory LED top light Stainless steel bumper bars Excellent product visibility Glass front lifts up for easy cleaning Stainless steel rear shelfThe SOC corner modules offer the opportunity of creating complete counter solutions in combination with other serve over counters from the same range. Choose between 45° or 90° counter displays for your perfect counter installation.Technical specificationsMeasures and Content
Gross / Net Weight:
235 / 190 kg
40ft Container Load :
8 pcs
Gross / Net Volume:
/ 345 l
Climate Class:
3
Design and Material
Exterior Finish:
Black RAL9005
Interior Finish:
Stainless Steel
Feet / Legs:
Adjustable feet
Interior Light:
LED
Cooling and Functions
Type of Controller:
Electronic
Type of Defrost:
Automatic, electric
Refrigerant:
R290
Refrigerant Charge:
150 g
Type of Cooling:
Ventilated
Power and Consumption
Energy Consumption:
4.6 kWh/24h
Annual Energy Cons.:
1679 kWh/year
Input Power:
315 W
Voltage / Frequency:
220-240/50 V/Hz
Noise Level:
60 dB(A)
Dimensions
External Dimension (WxDxH):
x 1120 x 1190
mm
Internal Dimension (WxDxH):
x 900 x 545 mm
Packed Dimension (WxDxH):
1500 x 1450 x 1400 mm
Other
GTIN / EAN:
5708181754143
Total Display Area:
1.07 m²
Temperature Range:
0 to +4 °C
Insulation Density:
50 kg/m³
Thermometer:
Yes
Max Ambient:
+25°C, 60% RH
Tefcold Cold Room Panels 80 mm - CR 150x180x220Our Tefcold cold room panels are designed for efficient and reliable temperature control in commercial kitchens. With 80 mm of effective polyurethane insulation, these panels provide excellent thermal performance and energy efficiency.The interlocking connection system makes assembly quick and hassle-free, while the modular design allows for easy customization to meet your specific needs.Technical specificationsOnly panels - without cooling unit Interlocking connection system 80 mm panel insulation Many customisation possibilities Easy access to products Easy assembly Anti-slip floor in SS304 stainless steel Shelves available as accessory Ramp available as accessory for easy accessOur range of cold room panels are available with 80 mm or 120 mm of effective polyurethane insulation and comes in various sizes. They have an easy interlocking system which makes assembly quick and hassle-free. The modular panels are interchangeable, so you can move the position of the door and adapt the room to fit your needs. Monoblock refrigeration units can be ordered separately.Technical specificationsMeasures and Content
Gross / Net Weight:
229 / 219 kg
40ft Container Load :
16 pcs
Internal Volume:
4.48 m³
Design and Material
Exterior Finish:
White
Interior Finish:
White
Door No & Type:
1 hinged solid door
Door Reversible:
Yes
Lock:
Yes
Dimensions
External Dimension (WxDxH):
1500 x 1800 x 2200
mm
Internal Dimension (WxDxH):
1340 x 1640 x 2040 mm
Packed Dimension (WxDxH):
2180 x 1270 x 1060 mm
Other
GTIN / EAN:
5708181711863
Insulation Density:
42 kg/m³
Wall Thickness:
80 mm
Max Load on Floor:
1500 kg/m²

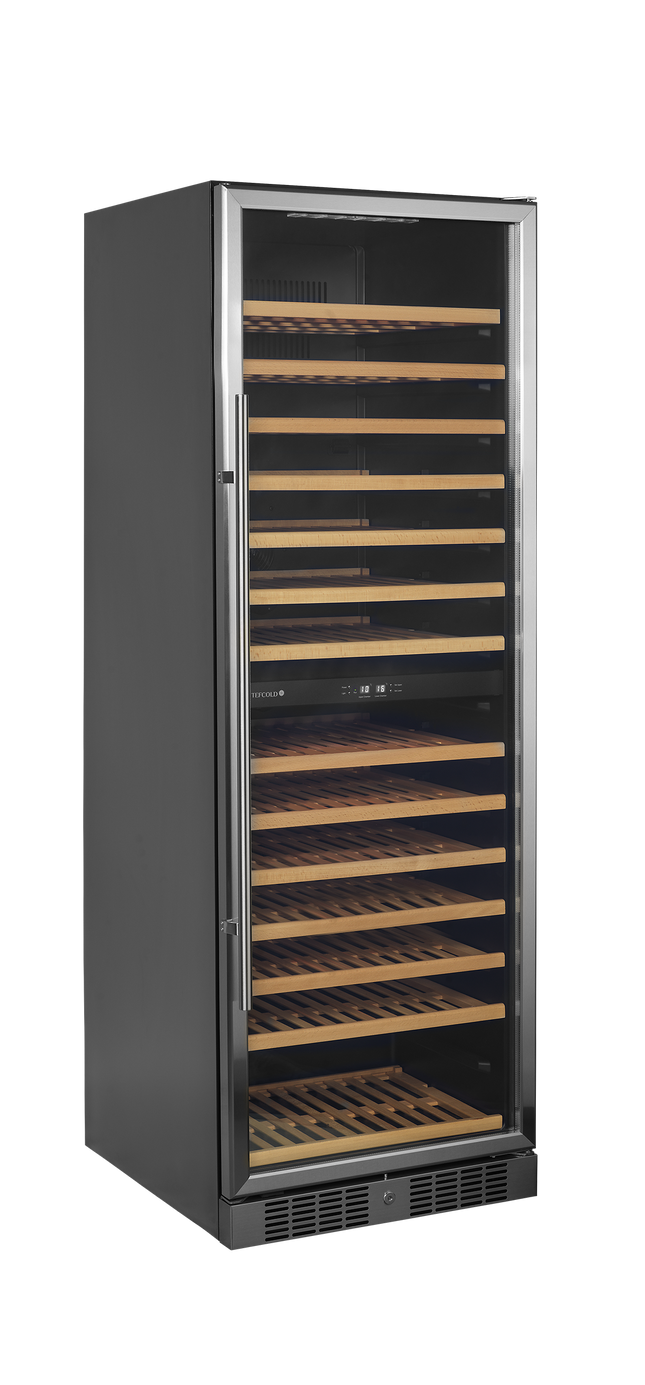

Stainless steel door frame and handle 2 temperature zones with a max. of 10°C variation Energy efficient cooling system Very low noise level LED interior light with switch Reversible glass door Wooden shelves High/low temperature alarm Presentation shelves available as optionThe TFW-S range of stainless steel wine display coolers offers a contemporary solution to displaying and storing wine bottles. It has an elegant design with a stainless steel front, black interior, soft LED lighting, and slide out wooden shelves. The modern cooling system is very efficient and reduces the noise, heat, and energy consumption of the cooler.Technical specificationsMeasures and Content
Gross / Net Weight:
111 / 106 kg
40ft Container Load :
54 pcs
Gross / Net Volume:
416 / 350 l
Climate Class:
4
Wine Bottles 750 ml:
163 pcs
Design and Material
Exterior Finish:
Black
Interior Finish:
Black ABS
Door No & Type:
1 hinged glass door
Door Reversible:
Yes
Feet / Legs:
4 adjustable feet
Lock:
No
Interior Light:
LED
Cooling and Functions
Type of Controller:
Electronic
Type of Cooling:
Fan assisted
Type of Defrost:
Automatic
Refrigerant:
R600a
Refrigerant Charge:
55 g
Power and Consumption
Energy Class:
G
Energy Consumption:
0.48 kWh/24h
Annual Energy Cons.:
175 kWh/year
EEI:
167 %
Input Power:
220 W
Voltage / Frequency:
220-240/50 V/Hz
Noise Level:
40 dB(A)
Dimensions
External Dimension (WxDxH):
595 x 680 x 1760
mm
Internal Dimension (WxDxH):
515 x 532 x 1585 mm
Packed Dimension (WxDxH):
650 x 760 x 2000 mm
Other
GTIN / EAN:
5708181995096
Temperature Range:
+5 to +10 / +10 to +18 °C
Shelves No & Type:
14 wooden wine shelves
Max load on Shelves:
35 kg/m²
Thermometer:
Yes
EPREL No:
734371
Max Ambient:
+30°C, 55% RH
Technical specificationsStainless steel door frame and handle 2 temperature zones with a max. of 10°C variation Energy efficient cooling system Very low noise level LED interior light with switch Reversible glass door Wooden shelves High/low temperature alarm Presentation shelves available as optionThe TFW-S range of stainless steel wine display coolers offers a contemporary solution to displaying and storing wine bottles. It has an elegant design with a stainless steel front, black interior, soft LED lighting, and slide out wooden shelves. The modern cooling system is very efficient and reduces the noise, heat, and energy consumption of the cooler.Technical specificationsMeasures and Content
Gross / Net Weight:
111 / 106 kg
40ft Container Load :
54 pcs
Gross / Net Volume:
416 / 350 l
Climate Class:
4
Wine Bottles 750 ml:
163 pcs
Design and Material
Exterior Finish:
Black
Interior Finish:
Black ABS
Door No & Type:
1 hinged glass door
Door Reversible:
Yes
Feet / Legs:
4 adjustable feet
Lock:
No
Interior Light:
LED
Cooling and Functions
Type of Controller:
Electronic
Type of Cooling:
Fan assisted
Type of Defrost:
Automatic
Refrigerant:
R600a
Refrigerant Charge:
55 g
Power and Consumption
Energy Class:
G
Energy Consumption:
0.48 kWh/24h
Annual Energy Cons.:
175 kWh/year
EEI:
167 %
Input Power:
220 W
Voltage / Frequency:
220-240/50 V/Hz
Noise Level:
40 dB(A)
Dimensions
External Dimension (WxDxH):
595 x 680 x 1760
mm
Internal Dimension (WxDxH):
515 x 532 x 1585 mm
Packed Dimension (WxDxH):
650 x 760 x 2000 mm
Other
GTIN / EAN:
5708181995096
Temperature Range:
+5 to +10 / +10 to +18 °C
Shelves No & Type:
14 wooden wine shelves
Max load on Shelves:
35 kg/m²
Thermometer:
Yes
EPREL No:
734371
Max Ambient:
+30°C, 55% RH
Cold Room Panels 80 mm - CR 180x150x220Tefcold's Cold Room Panels are designed to provide optimal insulation and flexibility for your commercial kitchen. Made with high-quality materials, these panels feature an interlocking connection system for easy assembly and customization options. With a wall thickness of 80 mm, they offer excellent thermal performance and can be easily integrated into your existing cold room setup.Key benefits include:
Easy installation and customization
High-quality insulation for optimal temperature control
Durable construction for long-lasting performance
Technical specificationsOnly panels - without cooling unit Interlocking connection system 80 mm panel insulation Many customisation possibilities Easy access to products Easy assembly Anti-slip floor in SS304 stainless steel Shelves available as accessory Ramp available as accessory for easy accessOur range of cold room panels are available with 80 mm or 120 mm of effective polyurethane insulation and comes in various sizes. They have an easy interlocking system which makes assembly quick and hassle-free. The modular panels are interchangeable, so you can move the position of the door and adapt the room to fit your needs. Monoblock refrigeration units can be ordered separately.Technical specificationsMeasures and Content
Gross / Net Weight:
287 / 267 kg
40ft Container Load :
16 pcs
Internal Volume:
4.48 m³
Design and Material
Exterior Finish:
White
Interior Finish:
White
Door No & Type:
1 hinged solid door
Door Reversible:
Yes
Lock:
Yes
Dimensions
External Dimension (WxDxH):
1800 x 1500 x 2200
mm
Internal Dimension (WxDxH):
1640 x 1340 x 2040 mm
Packed Dimension (WxDxH):
2180 x 1280 x 1080 mm
Other
GTIN / EAN:
5708181712990
Insulation Density:
42 kg/m³
Wall Thickness:
80 mm
Max Load on Floor:
1500 kg/m²
Stainless steel door frame and handle 1 temperature zone Energy efficient cooling system Very low noise level LED interior light with switch Reversible glass door Wooden shelves Presentation shelves available as option High/low temperature alarmThe TFW-S range of stainless steel wine display coolers offers a contemporary solution to displaying and storing wine bottles. It has an elegant design with a stainless steel front, black interior, soft LED lighting, and slide out wooden shelves. The modern cooling system is very efficient and reduces the noise, heat, and energy consumption of the cooler.Technical specificationsMeasures and Content
Gross / Net Weight:
49 / 44 kg
40ft Container Load :
108 pcs
Gross / Net Volume:
155 / 141 l
Climate Class:
4
Wine Bottles 750 ml:
48 pcs
Design and Material
Exterior Finish:
Black
Interior Finish:
Black ABS
Door No & Type:
1 hinged glass door
Door Reversible:
Yes
Feet / Legs:
4 adjustable feet
Lock:
Yes
Interior Light:
LED
Cooling and Functions
Type of Controller:
Electronic
Type of Cooling:
Fan assisted
Type of Defrost:
Automatic
Refrigerant:
R600a
Refrigerant Charge:
35 g
Power and Consumption
Energy Class:
G
Energy Consumption:
0.36 kWh/24h
Annual Energy Cons.:
130 kWh/year
EEI:
152 %
Input Power:
160 W
Voltage / Frequency:
220-240/50 V/Hz
Noise Level:
40 dB(A)
Dimensions
External Dimension (WxDxH):
595 x 570 x 820
mm
Internal Dimension (WxDxH):
520 x 445 x 605 mm
Packed Dimension (WxDxH):
670 x 670 x 880 mm
Other
GTIN / EAN:
5708181995089
Temperature Range:
+5 to +18 °C
Shelves No & Type:
4 wooden wine shelves
Max load on Shelves:
35 kg/m²
Thermometer:
Yes
EPREL No:
734408
Max Ambient:
+30°C, 55% RH
Technical specificationsStainless steel door frame and handle 1 temperature zone Energy efficient cooling system Very low noise level LED interior light with switch Reversible glass door Wooden shelves Presentation shelves available as option High/low temperature alarmThe TFW-S range of stainless steel wine display coolers offers a contemporary solution to displaying and storing wine bottles. It has an elegant design with a stainless steel front, black interior, soft LED lighting, and slide out wooden shelves. The modern cooling system is very efficient and reduces the noise, heat, and energy consumption of the cooler.Technical specificationsMeasures and Content
Gross / Net Weight:
49 / 44 kg
40ft Container Load :
108 pcs
Gross / Net Volume:
155 / 141 l
Climate Class:
4
Wine Bottles 750 ml:
48 pcs
Design and Material
Exterior Finish:
Black
Interior Finish:
Black ABS
Door No & Type:
1 hinged glass door
Door Reversible:
Yes
Feet / Legs:
4 adjustable feet
Lock:
Yes
Interior Light:
LED
Cooling and Functions
Type of Controller:
Electronic
Type of Cooling:
Fan assisted
Type of Defrost:
Automatic
Refrigerant:
R600a
Refrigerant Charge:
35 g
Power and Consumption
Energy Class:
G
Energy Consumption:
0.36 kWh/24h
Annual Energy Cons.:
130 kWh/year
EEI:
152 %
Input Power:
160 W
Voltage / Frequency:
220-240/50 V/Hz
Noise Level:
40 dB(A)
Dimensions
External Dimension (WxDxH):
595 x 570 x 820
mm
Internal Dimension (WxDxH):
520 x 445 x 605 mm
Packed Dimension (WxDxH):
670 x 670 x 880 mm
Other
GTIN / EAN:
5708181995089
Temperature Range:
+5 to +18 °C
Shelves No & Type:
4 wooden wine shelves
Max load on Shelves:
35 kg/m²
Thermometer:
Yes
EPREL No:
734408
Max Ambient:
+30°C, 55% RH
Stainless steel door frame and handle 2 temperature zones with a max. of 7°C variation Energy efficient cooling system Very low noise level LED interior light with switch Reversible glass door Wooden shelves High/low temperature alarmThe TFW-S range of stainless steel wine display coolers offers a contemporary solution to displaying and storing wine bottles. It has an elegant design with a stainless steel front, black interior, soft LED lighting, and slide out wooden shelves. The modern cooling system is very efficient and reduces the noise, heat, and energy consumption of the cooler.Technical specificationsMeasures and Content
Gross / Net Weight:
49 / 44 kg
40ft Container Load :
108 pcs
Gross / Net Volume:
155 / 131 l
Climate Class:
4
Wine Bottles 750 ml:
46 pcs
Design and Material
Exterior Finish:
Black
Interior Finish:
Black ABS
Door No & Type:
1 hinged glass door
Door Reversible:
Yes
Feet / Legs:
4 adjustable feet
Lock:
No
Interior Light:
LED
Cooling and Functions
Type of Controller:
Electronic
Type of Cooling:
Fan assisted
Type of Defrost:
Automatic
Refrigerant:
R600a
Refrigerant Charge:
35 g
Power and Consumption
Energy Class:
G
Energy Consumption:
0.4 kWh/24h
Annual Energy Cons.:
145 kWh/year
EEI:
171 %
Input Power:
160 W
Voltage / Frequency:
220-240/50 V/Hz
Noise Level:
40 dB(A)
Dimensions
External Dimension (WxDxH):
595 x 570 x 820
mm
Internal Dimension (WxDxH):
520 x 445 x 605 mm
Packed Dimension (WxDxH):
670 x 670 x 880 mm
Other
GTIN / EAN:
5708181995072
Temperature Range:
+5 to +10 / +10 to +18 °C
Shelves No & Type:
6 wooden wine shelves
Max load on Shelves:
35 kg/m²
Thermometer:
Yes
EPREL No:
734217
Max Ambient:
+30°C, 55% RH
Technical specificationsStainless steel door frame and handle 2 temperature zones with a max. of 7°C variation Energy efficient cooling system Very low noise level LED interior light with switch Reversible glass door Wooden shelves High/low temperature alarmThe TFW-S range of stainless steel wine display coolers offers a contemporary solution to displaying and storing wine bottles. It has an elegant design with a stainless steel front, black interior, soft LED lighting, and slide out wooden shelves. The modern cooling system is very efficient and reduces the noise, heat, and energy consumption of the cooler.Technical specificationsMeasures and Content
Gross / Net Weight:
49 / 44 kg
40ft Container Load :
108 pcs
Gross / Net Volume:
155 / 131 l
Climate Class:
4
Wine Bottles 750 ml:
46 pcs
Design and Material
Exterior Finish:
Black
Interior Finish:
Black ABS
Door No & Type:
1 hinged glass door
Door Reversible:
Yes
Feet / Legs:
4 adjustable feet
Lock:
No
Interior Light:
LED
Cooling and Functions
Type of Controller:
Electronic
Type of Cooling:
Fan assisted
Type of Defrost:
Automatic
Refrigerant:
R600a
Refrigerant Charge:
35 g
Power and Consumption
Energy Class:
G
Energy Consumption:
0.4 kWh/24h
Annual Energy Cons.:
145 kWh/year
EEI:
171 %
Input Power:
160 W
Voltage / Frequency:
220-240/50 V/Hz
Noise Level:
40 dB(A)
Dimensions
External Dimension (WxDxH):
595 x 570 x 820
mm
Internal Dimension (WxDxH):
520 x 445 x 605 mm
Packed Dimension (WxDxH):
670 x 670 x 880 mm
Other
GTIN / EAN:
5708181995072
Temperature Range:
+5 to +10 / +10 to +18 °C
Shelves No & Type:
6 wooden wine shelves
Max load on Shelves:
35 kg/m²
Thermometer:
Yes
EPREL No:
734217
Max Ambient:
+30°C, 55% RH
Plug-In - ready after assembly Many customisation possibilities Easy access to products Freezing unit Easy assembly 120 mm panel insulation Anti-slip floor in SS304 stainless steel Strip curtain included Alarm kit as accessory Shelves available as accessory Ramp available as accessory for easy accessThe CRNF range of freezer rooms can be used in both restaurants, delis, cafes, retail stores etc. They are a great way to create optimal and efficient freezing space at a very affordable price. The modular panel rooms are easy to assemble and come in many different sizes, so you can get a perfect fit for your business. Also available in a cooler version.Technical specificationsMeasures and Content
Gross / Net Weight:
825 / 795 kg
40ft Container Load :
4 pcs
Internal Volume:
11.68 m³
Design and Material
Exterior Finish:
White
Interior Finish:
White
Door No & Type:
1 hinged solid door W:700 H:1765
Door Reversible:
Yes
Interior Light:
LED
Lock:
Yes
Cooling and Functions
Type of Controller:
Electronic
Type of Defrost:
Automatic, hot gas
Refrigerant:
R290
Refrigerant Charge:
200 g
Power and Consumption
Energy Consumption:
31.78 kWh/24h
Annual Energy Cons.:
11598 kWh/year
Input Power:
1630 W
Voltage / Frequency:
220-240/50 V/Hz
Noise Level:
60 dB(A)
Dimensions
External Dimension (WxDxH):
2400 x 3000 x 2200
mm
Internal Dimension (WxDxH):
2160 x 2760 x 1960 mm
Packed Dimension (WxDxH):
2500 x 1600 x 2400 mm
Other
GTIN / EAN:
5708181711672
Temperature Range:
-20 to -10 °C
Thermometer:
Yes
Insulation Density:
42 kg/m³
Wall Thickness:
120 mm
Max Load on Floor:
2000 kg/m²
Technical specificationsPlug-In - ready after assembly Many customisation possibilities Easy access to products Freezing unit Easy assembly 120 mm panel insulation Anti-slip floor in SS304 stainless steel Strip curtain included Alarm kit as accessory Shelves available as accessory Ramp available as accessory for easy accessThe CRNF range of freezer rooms can be used in both restaurants, delis, cafes, retail stores etc. They are a great way to create optimal and efficient freezing space at a very affordable price. The modular panel rooms are easy to assemble and come in many different sizes, so you can get a perfect fit for your business. Also available in a cooler version.Technical specificationsMeasures and Content
Gross / Net Weight:
825 / 795 kg
40ft Container Load :
4 pcs
Internal Volume:
11.68 m³
Design and Material
Exterior Finish:
White
Interior Finish:
White
Door No & Type:
1 hinged solid door W:700 H:1765
Door Reversible:
Yes
Interior Light:
LED
Lock:
Yes
Cooling and Functions
Type of Controller:
Electronic
Type of Defrost:
Automatic, hot gas
Refrigerant:
R290
Refrigerant Charge:
200 g
Power and Consumption
Energy Consumption:
31.78 kWh/24h
Annual Energy Cons.:
11598 kWh/year
Input Power:
1630 W
Voltage / Frequency:
220-240/50 V/Hz
Noise Level:
60 dB(A)
Dimensions
External Dimension (WxDxH):
2400 x 3000 x 2200
mm
Internal Dimension (WxDxH):
2160 x 2760 x 1960 mm
Packed Dimension (WxDxH):
2500 x 1600 x 2400 mm
Other
GTIN / EAN:
5708181711672
Temperature Range:
-20 to -10 °C
Thermometer:
Yes
Insulation Density:
42 kg/m³
Wall Thickness:
120 mm
Max Load on Floor:
2000 kg/m²
Tefcold Monoblock Freezers Unit - WRA-L8-1The Tefcold WRA-L8-1 monoblock freezer unit is a premium cooling solution for cold rooms. Suitable for panels up to 200 mm thick, this unit features a digital controller and temperature display for precise temperature control.With ventilated cooling and automatic defrost, this unit ensures efficient and reliable performance in demanding commercial kitchen environments.Technical specificationsMonoblock freezing unit Suitable for panels up to 200 mm thick Serial connection possible Digital controller and temperature display Ventilated coolingThe WRA range of premium monoblock cooling units for cold rooms is suitable for panels with a thickness of up to 200 mm. They are designed for saddle mounting and are available in a wide range of capacities. Serial connection is possible.Technical specificationsMeasures and Content
Gross / Net Weight:
58 / 46 kg
40ft Container Load :
52 pcs
Design and Material
Exterior Finish:
White RAL9003
Cooling and Functions
Type of Defrost:
Automatic, hot gas
Refrigerant:
R290
Refrigerant Charge:
150 g
Power and Consumption
Energy Consumption:
11.7 kWh/24h
Annual Energy Cons.:
4271 kWh/year
Input Power:
650 W
Voltage / Frequency:
220-240/50 V/Hz
Noise Level:
31.4 dB(A)
Dimensions
External Dimension (WxDxH):
421 x 876 x 728
mm
Packed Dimension (WxDxH):
500 x 970 x 890 mm
Other
GTIN / EAN:
5708181753689
Temperature Range:
-25 to -10 °C
Frameless glass door 1 temperature zone Energy efficient cooling system Very low noise level LED interior light with switch Reversible door Curved stainless steel handle Wooden shelves Presentation shelves available as option High/low temperature alarmThe TFW-F range of frameless wine display coolers offers an elegant solution to storing and displaying wine. It has a contemporary design with an edge-to-edge glass door, soft LED lighting, and slide out wooden shelves. The wine cooler also features a modern cooling system that reduces the heat, noise, and energy consumption of the cabinet.Technical specificationsMeasures and Content
Gross / Net Weight:
49 / 44 kg
40ft Container Load :
108 pcs
Gross / Net Volume:
155 / 141 l
Climate Class:
4
Wine Bottles 750 ml:
48 pcs
Design and Material
Exterior Finish:
Black
Interior Finish:
Black ABS
Door No & Type:
1 hinged frameless door
Door Reversible:
Yes
Feet / Legs:
4 adjustable feet
Lock:
No
Interior Light:
LED
Cooling and Functions
Type of Controller:
Electronic
Type of Cooling:
Fan assisted
Type of Defrost:
Automatic
Refrigerant:
R600a
Refrigerant Charge:
35 g
Power and Consumption
Energy Class:
G
Energy Consumption:
0.36 kWh/24h
Annual Energy Cons.:
130 kWh/year
EEI:
152 %
Input Power:
160 W
Voltage / Frequency:
220-240/50 V/Hz
Noise Level:
40 dB(A)
Dimensions
External Dimension (WxDxH):
595 x 570 x 820
mm
Internal Dimension (WxDxH):
520 x 445 x 605 mm
Packed Dimension (WxDxH):
670 x 670 x 880 mm
Other
GTIN / EAN:
5708181995065
Temperature Range:
+5 to +18 °C
Shelves No & Type:
4 wooden wine shelves
Max load on Shelves:
35 kg/m²
Thermometer:
Yes
EPREL No:
734408
Max Ambient:
+30°C, 55% RH
Technical specificationsFrameless glass door 1 temperature zone Energy efficient cooling system Very low noise level LED interior light with switch Reversible door Curved stainless steel handle Wooden shelves Presentation shelves available as option High/low temperature alarmThe TFW-F range of frameless wine display coolers offers an elegant solution to storing and displaying wine. It has a contemporary design with an edge-to-edge glass door, soft LED lighting, and slide out wooden shelves. The wine cooler also features a modern cooling system that reduces the heat, noise, and energy consumption of the cabinet.Technical specificationsMeasures and Content
Gross / Net Weight:
49 / 44 kg
40ft Container Load :
108 pcs
Gross / Net Volume:
155 / 141 l
Climate Class:
4
Wine Bottles 750 ml:
48 pcs
Design and Material
Exterior Finish:
Black
Interior Finish:
Black ABS
Door No & Type:
1 hinged frameless door
Door Reversible:
Yes
Feet / Legs:
4 adjustable feet
Lock:
No
Interior Light:
LED
Cooling and Functions
Type of Controller:
Electronic
Type of Cooling:
Fan assisted
Type of Defrost:
Automatic
Refrigerant:
R600a
Refrigerant Charge:
35 g
Power and Consumption
Energy Class:
G
Energy Consumption:
0.36 kWh/24h
Annual Energy Cons.:
130 kWh/year
EEI:
152 %
Input Power:
160 W
Voltage / Frequency:
220-240/50 V/Hz
Noise Level:
40 dB(A)
Dimensions
External Dimension (WxDxH):
595 x 570 x 820
mm
Internal Dimension (WxDxH):
520 x 445 x 605 mm
Packed Dimension (WxDxH):
670 x 670 x 880 mm
Other
GTIN / EAN:
5708181995065
Temperature Range:
+5 to +18 °C
Shelves No & Type:
4 wooden wine shelves
Max load on Shelves:
35 kg/m²
Thermometer:
Yes
EPREL No:
734408
Max Ambient:
+30°C, 55% RH
Frameless glass door 2 temperature zones with a max. of 7°C variation Energy efficient cooling system Very low noise level LED interior light with switch Reversible door Curved stainless steel handle Wooden shelves High/low temperature alarmThe TFW-F range of frameless wine display coolers offers an elegant solution to storing and displaying wine. It has a contemporary design with an edge-to-edge glass door, soft LED lighting, and slide out wooden shelves. The wine cooler also features a modern cooling system that reduces the heat, noise, and energy consumption of the cabinet.Technical specificationsMeasures and Content
Gross / Net Weight:
49 / 44 kg
40ft Container Load :
108 pcs
Gross / Net Volume:
155 / 131 l
Climate Class:
4
Wine Bottles 750 ml:
46 pcs
Design and Material
Exterior Finish:
Black
Interior Finish:
Black ABS
Door No & Type:
1 hinged frameless door
Door Reversible:
Yes
Feet / Legs:
4 adjustable feet
Lock:
No
Interior Light:
LED
Cooling and Functions
Type of Controller:
Electronic
Type of Cooling:
Fan assisted
Type of Defrost:
Automatic
Refrigerant:
R600a
Refrigerant Charge:
35 g
Power and Consumption
Energy Class:
G
Energy Consumption:
0.4 kWh/24h
Annual Energy Cons.:
145 kWh/year
EEI:
171 %
Input Power:
160 W
Voltage / Frequency:
220-240/50 V/Hz
Noise Level:
40 dB(A)
Dimensions
External Dimension (WxDxH):
595 x 570 x 820
mm
Internal Dimension (WxDxH):
520 x 445 x 605 mm
Packed Dimension (WxDxH):
670 x 670 x 880 mm
Other
GTIN / EAN:
5708181995058
Temperature Range:
+5 to +10 / +10 to +18 °C
Shelves No & Type:
6 wooden wine shelves
Max load on Shelves:
35 kg/m²
Thermometer:
Yes
EPREL No:
734217
Max Ambient:
+30°C, 55% RH
Technical specificationsFrameless glass door 2 temperature zones with a max. of 7°C variation Energy efficient cooling system Very low noise level LED interior light with switch Reversible door Curved stainless steel handle Wooden shelves High/low temperature alarmThe TFW-F range of frameless wine display coolers offers an elegant solution to storing and displaying wine. It has a contemporary design with an edge-to-edge glass door, soft LED lighting, and slide out wooden shelves. The wine cooler also features a modern cooling system that reduces the heat, noise, and energy consumption of the cabinet.Technical specificationsMeasures and Content
Gross / Net Weight:
49 / 44 kg
40ft Container Load :
108 pcs
Gross / Net Volume:
155 / 131 l
Climate Class:
4
Wine Bottles 750 ml:
46 pcs
Design and Material
Exterior Finish:
Black
Interior Finish:
Black ABS
Door No & Type:
1 hinged frameless door
Door Reversible:
Yes
Feet / Legs:
4 adjustable feet
Lock:
No
Interior Light:
LED
Cooling and Functions
Type of Controller:
Electronic
Type of Cooling:
Fan assisted
Type of Defrost:
Automatic
Refrigerant:
R600a
Refrigerant Charge:
35 g
Power and Consumption
Energy Class:
G
Energy Consumption:
0.4 kWh/24h
Annual Energy Cons.:
145 kWh/year
EEI:
171 %
Input Power:
160 W
Voltage / Frequency:
220-240/50 V/Hz
Noise Level:
40 dB(A)
Dimensions
External Dimension (WxDxH):
595 x 570 x 820
mm
Internal Dimension (WxDxH):
520 x 445 x 605 mm
Packed Dimension (WxDxH):
670 x 670 x 880 mm
Other
GTIN / EAN:
5708181995058
Temperature Range:
+5 to +10 / +10 to +18 °C
Shelves No & Type:
6 wooden wine shelves
Max load on Shelves:
35 kg/m²
Thermometer:
Yes
EPREL No:
734217
Max Ambient:
+30°C, 55% RH
Tefcold Monoblock Cooler Unit - WRA-M24-1The Tefcold Monoblock Cooler Unit - WRA-M24-1 is a premium cooling solution designed for cold rooms. With its compact design and high-performance capabilities, this unit is perfect for applications where space is limited.Featuring a digital controller and temperature display, the WRA-M24-1 provides precise control over your storage environment. Its ventilated cooling system ensures efficient heat transfer and optimal performance.Technical specificationsMonoblock cooling unit Suitable for panels up to 200 mm thick Serial connection possible Digital controller and temperature display Ventilated coolingThe WRA range of premium monoblock cooling units for cold rooms is suitable for panels with a thickness of up to 200 mm. They are designed for saddle mounting and are available in a wide range of capacities. Serial connection is possible.Technical specificationsMeasures and Content
Gross / Net Weight:
89 / 65 kg
40ft Container Load :
66 pcs
Design and Material
Exterior Finish:
White RAL9003
Cooling and Functions
Type of Defrost:
Automatic, hot gas
Refrigerant Charge:
150 g
Refrigerant:
R290
Power and Consumption
Annual Energy Cons.:
7884 kWh/year
Energy Consumption:
21.6 kWh/24h
Input Power:
1200 W
Voltage / Frequency:
220-240/50 V/Hz
Noise Level:
34.3 dB(A)
Dimensions
External Dimension (WxDxH):
671 x 975 x 828
mm
Packed Dimension (WxDxH):
765 x 1070 x 980 mm
Other
GTIN / EAN:
5708181753634
Temperature Range:
-5 to +15 °C
Plug-In - ready after assembly Many customisation possibilities Easy access to products Freezing unit Easy assembly 120 mm panel insulation Anti-slip floor in SS304 stainless steel Strip curtain included Alarm kit as accessory Shelves available as accessory Ramp available as accessory for easy accessThe CRNF range of freezer rooms can be used in both restaurants, delis, cafes, retail stores etc. They are a great way to create optimal and efficient freezing space at a very affordable price. The modular panel rooms are easy to assemble and come in many different sizes, so you can get a perfect fit for your business. Also available in a cooler version.Technical specificationsMeasures and Content
Gross / Net Weight:
750 / 720 kg
40ft Container Load :
6 pcs
Internal Volume:
8.97 m³
Design and Material
Exterior Finish:
White
Interior Finish:
White
Door No & Type:
1 hinged solid door W:700 H:1765
Door Reversible:
Yes
Interior Light:
LED
Lock:
Yes
Cooling and Functions
Type of Controller:
Electronic
Type of Defrost:
Automatic, hot gas
Refrigerant:
R290
Refrigerant Charge:
200 g
Power and Consumption
Energy Consumption:
29.52 kWh/24h
Annual Energy Cons.:
10775 kWh/year
Input Power:
1394.73 W
Voltage / Frequency:
220-240/50 V/Hz
Noise Level:
60 dB(A)
Dimensions
External Dimension (WxDxH):
2100 x 2700 x 2200
mm
Internal Dimension (WxDxH):
1860 x 2460 x 1960 mm
Packed Dimension (WxDxH):
2150 x 2750 x 2400 mm
Other
GTIN / EAN:
5708181711665
Temperature Range:
-20 to -10 °C
Thermometer:
Yes
Insulation Density:
42 kg/m³
Wall Thickness:
120 mm
Max Load on Floor:
2000 kg/m²
Technical specificationsPlug-In - ready after assembly Many customisation possibilities Easy access to products Freezing unit Easy assembly 120 mm panel insulation Anti-slip floor in SS304 stainless steel Strip curtain included Alarm kit as accessory Shelves available as accessory Ramp available as accessory for easy accessThe CRNF range of freezer rooms can be used in both restaurants, delis, cafes, retail stores etc. They are a great way to create optimal and efficient freezing space at a very affordable price. The modular panel rooms are easy to assemble and come in many different sizes, so you can get a perfect fit for your business. Also available in a cooler version.Technical specificationsMeasures and Content
Gross / Net Weight:
750 / 720 kg
40ft Container Load :
6 pcs
Internal Volume:
8.97 m³
Design and Material
Exterior Finish:
White
Interior Finish:
White
Door No & Type:
1 hinged solid door W:700 H:1765
Door Reversible:
Yes
Interior Light:
LED
Lock:
Yes
Cooling and Functions
Type of Controller:
Electronic
Type of Defrost:
Automatic, hot gas
Refrigerant:
R290
Refrigerant Charge:
200 g
Power and Consumption
Energy Consumption:
29.52 kWh/24h
Annual Energy Cons.:
10775 kWh/year
Input Power:
1394.73 W
Voltage / Frequency:
220-240/50 V/Hz
Noise Level:
60 dB(A)
Dimensions
External Dimension (WxDxH):
2100 x 2700 x 2200
mm
Internal Dimension (WxDxH):
1860 x 2460 x 1960 mm
Packed Dimension (WxDxH):
2150 x 2750 x 2400 mm
Other
GTIN / EAN:
5708181711665
Temperature Range:
-20 to -10 °C
Thermometer:
Yes
Insulation Density:
42 kg/m³
Wall Thickness:
120 mm
Max Load on Floor:
2000 kg/m²
Plug-In - ready after assembly Many customisation possibilities Easy access to products Freezing unit Easy assembly 120 mm panel insulation Anti-slip floor in SS304 stainless steel Strip curtain included Alarm kit as accessory Shelves available as accessory Ramp available as accessory for easy accessThe CRNF range of freezer rooms can be used in both restaurants, delis, cafes, retail stores etc. They are a great way to create optimal and efficient freezing space at a very affordable price. The modular panel rooms are easy to assemble and come in many different sizes, so you can get a perfect fit for your business. Also available in a cooler version.Technical specificationsMeasures and Content
Gross / Net Weight:
760 / 730 kg
40ft Container Load :
6 pcs
Internal Volume:
10.06 m³
Design and Material
Exterior Finish:
White
Interior Finish:
White
Door No & Type:
1 hinged solid door W:700 H:1765
Door Reversible:
Yes
Interior Light:
LED
Lock:
Yes
Cooling and Functions
Type of Controller:
Electronic
Type of Defrost:
Automatic, hot gas
Refrigerant:
R290
Refrigerant Charge:
200 g
Power and Consumption
Energy Consumption:
31.78 kWh/24h
Annual Energy Cons.:
11598 kWh/year
Input Power:
1630 W
Voltage / Frequency:
220-240/50 V/Hz
Noise Level:
60 dB(A)
Dimensions
External Dimension (WxDxH):
2100 x 3000 x 2200
mm
Internal Dimension (WxDxH):
1860 x 2760 x 1960 mm
Packed Dimension (WxDxH):
2200 x 1900 x 2400 mm
Other
GTIN / EAN:
5708181711672
Temperature Range:
-20 to -10 °C
Thermometer:
Yes
Insulation Density:
42 kg/m³
Wall Thickness:
120 mm
Max Load on Floor:
2000 kg/m²
Technical specificationsPlug-In - ready after assembly Many customisation possibilities Easy access to products Freezing unit Easy assembly 120 mm panel insulation Anti-slip floor in SS304 stainless steel Strip curtain included Alarm kit as accessory Shelves available as accessory Ramp available as accessory for easy accessThe CRNF range of freezer rooms can be used in both restaurants, delis, cafes, retail stores etc. They are a great way to create optimal and efficient freezing space at a very affordable price. The modular panel rooms are easy to assemble and come in many different sizes, so you can get a perfect fit for your business. Also available in a cooler version.Technical specificationsMeasures and Content
Gross / Net Weight:
760 / 730 kg
40ft Container Load :
6 pcs
Internal Volume:
10.06 m³
Design and Material
Exterior Finish:
White
Interior Finish:
White
Door No & Type:
1 hinged solid door W:700 H:1765
Door Reversible:
Yes
Interior Light:
LED
Lock:
Yes
Cooling and Functions
Type of Controller:
Electronic
Type of Defrost:
Automatic, hot gas
Refrigerant:
R290
Refrigerant Charge:
200 g
Power and Consumption
Energy Consumption:
31.78 kWh/24h
Annual Energy Cons.:
11598 kWh/year
Input Power:
1630 W
Voltage / Frequency:
220-240/50 V/Hz
Noise Level:
60 dB(A)
Dimensions
External Dimension (WxDxH):
2100 x 3000 x 2200
mm
Internal Dimension (WxDxH):
1860 x 2760 x 1960 mm
Packed Dimension (WxDxH):
2200 x 1900 x 2400 mm
Other
GTIN / EAN:
5708181711672
Temperature Range:
-20 to -10 °C
Thermometer:
Yes
Insulation Density:
42 kg/m³
Wall Thickness:
120 mm
Max Load on Floor:
2000 kg/m²
Tefcold Monoblock Cooler Unit - WRA-M18-1Streamline your cooling needs with Tefcold's premium monoblock cooler units. Suitable for panels up to 200 mm thick, these units offer excellent temperature control and are designed for saddle mounting.Technical specificationsMonoblock cooling unit Suitable for panels up to 200 mm thick Serial connection possible Digital controller and temperature display Ventilated coolingThe WRA range of premium monoblock cooling units for cold rooms is suitable for panels with a thickness of up to 200 mm. They are designed for saddle mounting and are available in a wide range of capacities. Serial connection is possible.Technical specificationsMeasures and Content
Gross / Net Weight:
81 / 59 kg
40ft Container Load :
66 pcs
Design and Material
Exterior Finish:
White RAL9003
Cooling and Functions
Type of Defrost:
Automatic, hot gas
Refrigerant:
R290
Refrigerant Charge:
150 g
Power and Consumption
Energy Consumption:
16.92 kWh/24h
Annual Energy Cons.:
6176 kWh/year
Input Power:
940 W
Voltage / Frequency:
220-240/50 V/Hz
Noise Level:
35.6 dB(A)
Dimensions
External Dimension (WxDxH):
671 x 975 x 828
mm
Packed Dimension (WxDxH):
765 x 1070 x 980 mm
Other
GTIN / EAN:
5708181753627
Temperature Range:
-5 to +15 °C
Frameless glass door 2 temperature zones with a max. of 10°C variation Energy efficient cooling system Very low noise level LED interior light with switch Reversible door Curved stainless steel handle Wooden shelves Presentation shelves available as option High/low temperature alarmThe TFW-F range of frameless wine display coolers offers an elegant solution to storing and displaying wine. It has a contemporary design with an edge-to-edge glass door, soft LED lighting, and slide out wooden shelves. The wine cooler also features a modern cooling system that reduces the heat, noise, and energy consumption of the cabinet.Technical specificationsMeasures and Content
Gross / Net Weight:
94 / 89 kg
40ft Container Load :
54 pcs
Gross / Net Volume:
270 / 250 l
Climate Class:
4
Wine Bottles 750 ml:
119 pcs
Design and Material
Exterior Finish:
Black
Interior Finish:
Black ABS
Door No & Type:
1 hinged frameless door
Door Reversible:
Yes
Feet / Legs:
4 adjustable feet
Lock:
No
Interior Light:
LED
Cooling and Functions
Type of Controller:
Electronic
Type of Cooling:
Fan assisted
Type of Defrost:
Automatic
Refrigerant:
R600a
Refrigerant Charge:
60 g
Power and Consumption
Energy Class:
G
Energy Consumption:
0.41 kWh/24h
Annual Energy Cons.:
150 kWh/year
EEI:
154 %
Input Power:
155 W
Voltage / Frequency:
220-240/50 V/Hz
Noise Level:
40 dB(A)
Dimensions
External Dimension (WxDxH):
595 x 680 x 1390
mm
Internal Dimension (WxDxH):
510 x 540 x 1130 mm
Packed Dimension (WxDxH):
650 x 750 x 1590 mm
Other
GTIN / EAN:
5708181995041
Temperature Range:
+5 to +10 / +10 to +18 °C
Shelves No & Type:
10 wooden wine shelves
Max load on Shelves:
35 kg/m²
Thermometer:
Yes
EPREL No:
966534
Max Ambient:
+30°C, 55% RH
Technical specificationsFrameless glass door 2 temperature zones with a max. of 10°C variation Energy efficient cooling system Very low noise level LED interior light with switch Reversible door Curved stainless steel handle Wooden shelves Presentation shelves available as option High/low temperature alarmThe TFW-F range of frameless wine display coolers offers an elegant solution to storing and displaying wine. It has a contemporary design with an edge-to-edge glass door, soft LED lighting, and slide out wooden shelves. The wine cooler also features a modern cooling system that reduces the heat, noise, and energy consumption of the cabinet.Technical specificationsMeasures and Content
Gross / Net Weight:
94 / 89 kg
40ft Container Load :
54 pcs
Gross / Net Volume:
270 / 250 l
Climate Class:
4
Wine Bottles 750 ml:
119 pcs
Design and Material
Exterior Finish:
Black
Interior Finish:
Black ABS
Door No & Type:
1 hinged frameless door
Door Reversible:
Yes
Feet / Legs:
4 adjustable feet
Lock:
No
Interior Light:
LED
Cooling and Functions
Type of Controller:
Electronic
Type of Cooling:
Fan assisted
Type of Defrost:
Automatic
Refrigerant:
R600a
Refrigerant Charge:
60 g
Power and Consumption
Energy Class:
G
Energy Consumption:
0.41 kWh/24h
Annual Energy Cons.:
150 kWh/year
EEI:
154 %
Input Power:
155 W
Voltage / Frequency:
220-240/50 V/Hz
Noise Level:
40 dB(A)
Dimensions
External Dimension (WxDxH):
595 x 680 x 1390
mm
Internal Dimension (WxDxH):
510 x 540 x 1130 mm
Packed Dimension (WxDxH):
650 x 750 x 1590 mm
Other
GTIN / EAN:
5708181995041
Temperature Range:
+5 to +10 / +10 to +18 °C
Shelves No & Type:
10 wooden wine shelves
Max load on Shelves:
35 kg/m²
Thermometer:
Yes
EPREL No:
966534
Max Ambient:
+30°C, 55% RH
Black interior and exterior LED illuminated canopy Self-closing hinged glass door LED light in door frame Adjustable shelves Fan assisted cooling Internal stainless steel base Digital temperature display Fully automaticThe FSC Slim range offers excellent build quality at a competitive price. The slim model has a hinged glass door and is available in white or black. You get great product presentation combined with a powerful refrigeration system, and the adjustable shelves add flexibility. The display cooler is ideal for branding and with the illuminated canopy at the top, it is sure to grab the attention of customers.Technical specificationsMeasures and Content
Gross / Net Weight:
76 / 64 kg
40ft Container Load :
96 pcs
Bottles 330 ml:
100 pcs
Bottles 500 ml PET:
92 pcs
Cans 330 ml:
180 pcs
Cans 500 ml:
120 pcs
Gross / Net Volume:
190 / 116 l
Climate Class:
CC2
Canopy Type:
L-Shape
Design and Material
Exterior Finish:
Black
Interior Finish:
Black
Door No & Type:
1 hinged self-closing glass door
Door Reversible:
No
Shelf Color:
Black
Shelf Dimensions:
342 x 266
Feet / Legs:
2 adjustable feet
Castors:
2 rollers
Lock:
Yes
Interior Light:
LED
Cooling and Functions
Type of Controller:
Mechanical
Type of Cooling:
Fan assisted
Type of Defrost:
Automatic
Refrigerant:
R600a
Refrigerant Charge:
40 g
Power and Consumption
Energy Class:
F
Energy Consumption:
2.65 kWh/24h
Annual Energy Cons.:
967 kWh/year
EEI:
78 %
Input Power:
140 W
Voltage / Frequency:
220-240/50 V/Hz
Noise Level:
56 dB(A)
Dimensions
External Dimension (WxDxH):
435 x 460 x 2013
mm
Internal Dimension (WxDxH):
357 x 362 x 1410 mm
Packed Dimension (WxDxH):
470 x 535 x 2045 mm
Other
GTIN / EAN:
5708181994853
Temperature Range:
0 to +7 °C
Insulation Density:
32 kg/m³
Shelves No & Type:
5 wire shelves black
Max load on Shelves:
171 kg/m²
Thermometer:
Yes
EPREL No:
469946
Max Ambient:
+32,2°C, 65% RH
Technical specificationsBlack interior and exterior LED illuminated canopy Self-closing hinged glass door LED light in door frame Adjustable shelves Fan assisted cooling Internal stainless steel base Digital temperature display Fully automaticThe FSC Slim range offers excellent build quality at a competitive price. The slim model has a hinged glass door and is available in white or black. You get great product presentation combined with a powerful refrigeration system, and the adjustable shelves add flexibility. The display cooler is ideal for branding and with the illuminated canopy at the top, it is sure to grab the attention of customers.Technical specificationsMeasures and Content
Gross / Net Weight:
76 / 64 kg
40ft Container Load :
96 pcs
Bottles 330 ml:
100 pcs
Bottles 500 ml PET:
92 pcs
Cans 330 ml:
180 pcs
Cans 500 ml:
120 pcs
Gross / Net Volume:
190 / 116 l
Climate Class:
CC2
Canopy Type:
L-Shape
Design and Material
Exterior Finish:
Black
Interior Finish:
Black
Door No & Type:
1 hinged self-closing glass door
Door Reversible:
No
Shelf Color:
Black
Shelf Dimensions:
342 x 266
Feet / Legs:
2 adjustable feet
Castors:
2 rollers
Lock:
Yes
Interior Light:
LED
Cooling and Functions
Type of Controller:
Mechanical
Type of Cooling:
Fan assisted
Type of Defrost:
Automatic
Refrigerant:
R600a
Refrigerant Charge:
40 g
Power and Consumption
Energy Class:
F
Energy Consumption:
2.65 kWh/24h
Annual Energy Cons.:
967 kWh/year
EEI:
78 %
Input Power:
140 W
Voltage / Frequency:
220-240/50 V/Hz
Noise Level:
56 dB(A)
Dimensions
External Dimension (WxDxH):
435 x 460 x 2013
mm
Internal Dimension (WxDxH):
357 x 362 x 1410 mm
Packed Dimension (WxDxH):
470 x 535 x 2045 mm
Other
GTIN / EAN:
5708181994853
Temperature Range:
0 to +7 °C
Insulation Density:
32 kg/m³
Shelves No & Type:
5 wire shelves black
Max load on Shelves:
171 kg/m²
Thermometer:
Yes
EPREL No:
469946
Max Ambient:
+32,2°C, 65% RH
Tefcold Monoblock Cooler Unit - WRA-M12-1Efficiently cool your storage space with Tefcold's premium monoblock cooler units. Suitable for panels up to 200 mm thick, these units offer excellent temperature control and are designed for saddle mounting.Technical specificationsMonoblock cooling unit Suitable for panels up to 200 mm thick Serial connection possible Digital controller and temperature display Ventilated coolingThe WRA range of premium monoblock cooling units for cold rooms is suitable for panels with a thickness of up to 200 mm. They are designed for saddle mounting and are available in a wide range of capacities. Serial connection is possible.Technical specificationsMeasures and Content
Gross / Net Weight:
58 / 47 kg
40ft Container Load :
52 pcs
Design and Material
Exterior Finish:
White RAL9003
Cooling and Functions
Type of Defrost:
Automatic, hot gas
Refrigerant Charge:
150 g
Refrigerant:
R290
Power and Consumption
Annual Energy Cons.:
5125 kWh/year
Energy Consumption:
14.04 kWh/24h
Input Power:
780 W
Voltage / Frequency:
220-240/50 V/Hz
Noise Level:
35.5 dB(A)
Dimensions
External Dimension (WxDxH):
421 x 876 x 728
mm
Packed Dimension (WxDxH):
500 x 970 x 890 mm
Other
GTIN / EAN:
5708181753610
Temperature Range:
-5 to +15 °C
Monoblock Cooler Unit - WRA-M8-1The Tefcold Monoblock Cooler Unit is a reliable and efficient solution for cooling panels up to 200mm thick. With its compact design, this unit is perfect for small to medium-sized cold rooms.Technical specificationsMonoblock cooling unit Suitable for panels up to 200 mm thick Serial connection possible Digital controller and temperature display Ventilated coolingThe WRA range of premium monoblock cooling units for cold rooms is suitable for panels with a thickness of up to 200 mm. They are designed for saddle mounting and are available in a wide range of capacities. Serial connection is possible.Technical specificationsMeasures and Content
Gross / Net Weight:
57 / 46 kg
40ft Container Load :
52 pcs
Design and Material
Exterior Finish:
White RAL9003
Cooling and Functions
Type of Defrost:
Automatic, hot gas
Refrigerant:
R290
Refrigerant Charge:
150 g
Power and Consumption
Energy Consumption:
10.26 kWh/24h
Annual Energy Cons.:
3745 kWh/year
Input Power:
570 W
Voltage / Frequency:
220-240/50 V/Hz
Noise Level:
32.1 dB(A)
Dimensions
External Dimension (WxDxH):
421 x 876 x 728
mm
Packed Dimension (WxDxH):
500 x 970 x 890 mm
Other
GTIN / EAN:
5708181753603
Temperature Range:
-5 to +15 °C
