Tefcold's Cold Room Panels 80 mm - CR 180x240x220 are designed to provide optimal insulation and temperature control in commercial kitchens. Constructed with high-quality materials, these panels ensure efficient energy usage and minimize heat transfer.With their easy interlocking system, assembly is quick and hassle-free, allowing for maximum flexibility in room design. The modular panels can be easily rearranged or replaced as needed, making them an ideal solution for businesses requiring frequent layout changes.Technical specificationsOnly panels - without cooling unit Interlocking connection system 80 mm panel insulation Many customisation possibilities Easy access to products Easy assembly Anti-slip floor in SS304 stainless steel Shelves available as accessory Ramp available as accessory for easy accessOur range of cold room panels are available with 80 mm or 120 mm of effective polyurethane insulation and comes in various sizes. They have an easy interlocking system which makes assembly quick and hassle-free. The modular panels are interchangeable, so you can move the position of the door and adapt the room to fit your needs. Monoblock refrigeration units can be ordered separately.Technical specificationsMeasures and Content
Gross / Net Weight:
420 / 400 kg
40ft Container Load :
14 pcs
Internal Volume:
7.49 m³
Design and Material
Exterior Finish:
White
Interior Finish:
White
Door No & Type:
1 hinged solid door
Door Reversible:
Yes
Lock:
Yes
Dimensions
External Dimension (WxDxH):
1800 x 2400 x 2200
mm
Internal Dimension (WxDxH):
1640 x 2240 x 2040 mm
Packed Dimension (WxDxH):
2100 x 1250 x 1500 mm
Other
GTIN / EAN:
5708181711993
Insulation Density:
42 kg/m³
Wall Thickness:
80 mm
Max Load on Floor:
1500 kg/m²
Suitable for all KEG types Skinplate exterior/interior Reinforced base plate Removable cooling unit for easy service Throughput for (beer) lines Low energy consumption LED interior light Adjustable legs (from inside the cabinet) Electronic thermostat Ventilated cooling Optional lockThe SFK range of keg coolers is a favorite among breweries, preserving open kegs for up to three weeks to ensure optimal freshness and taste. With shorter beer lines, lower CO2 pressure, and minimized foam, it delivers consistently perfect pours. Its removable cooling unit ensures quick service and minimal downtime, making it ideal for busy bar environments where reliability and quality matter most.Technical specificationsMeasures and Content
Gross / Net Weight:
88 / 78.5 kg
40ft Container Load :
76 pcs
Gross / Net Volume:
292 / 276 l
Climate Class:
4
Design and Material
Exterior Finish:
Anthracite RAL 7021
Interior Finish:
Silver
Door No & Type:
2 hinged solid doors
Door Reversible:
No
Feet / Legs:
Adjustable feet
Lock:
Factory Option
Interior Light:
LED
Cooling and Functions
Type of Controller:
Electronic
Type of Cooling:
Ventilated
Type of Defrost:
Automatic
Refrigerant:
R290
Refrigerant Charge:
80 g
Power and Consumption
Input Power:
200 W
Voltage / Frequency:
220-240/50 V/Hz
Noise Level:
41 dB(A)
Dimensions
External Dimension (WxDxH):
1110 x 580 x 840
mm
Internal Dimension (WxDxH):
745 x 500 x 735 mm
Packed Dimension (WxDxH):
1150 x 610 x 980 mm
Other
GTIN / EAN:
5708181755461
Temperature Range:
+2 to +10 °C
Thermometer:
Yes
20 l KEG:
6 pcs
30 l KEG:
1 pcs
50 l KEG:
1 pcs
Technical specificationsSuitable for all KEG types Skinplate exterior/interior Reinforced base plate Removable cooling unit for easy service Throughput for (beer) lines Low energy consumption LED interior light Adjustable legs (from inside the cabinet) Electronic thermostat Ventilated cooling Optional lockThe SFK range of keg coolers is a favorite among breweries, preserving open kegs for up to three weeks to ensure optimal freshness and taste. With shorter beer lines, lower CO2 pressure, and minimized foam, it delivers consistently perfect pours. Its removable cooling unit ensures quick service and minimal downtime, making it ideal for busy bar environments where reliability and quality matter most.Technical specificationsMeasures and Content
Gross / Net Weight:
88 / 78.5 kg
40ft Container Load :
76 pcs
Gross / Net Volume:
292 / 276 l
Climate Class:
4
Design and Material
Exterior Finish:
Anthracite RAL 7021
Interior Finish:
Silver
Door No & Type:
2 hinged solid doors
Door Reversible:
No
Feet / Legs:
Adjustable feet
Lock:
Factory Option
Interior Light:
LED
Cooling and Functions
Type of Controller:
Electronic
Type of Cooling:
Ventilated
Type of Defrost:
Automatic
Refrigerant:
R290
Refrigerant Charge:
80 g
Power and Consumption
Input Power:
200 W
Voltage / Frequency:
220-240/50 V/Hz
Noise Level:
41 dB(A)
Dimensions
External Dimension (WxDxH):
1110 x 580 x 840
mm
Internal Dimension (WxDxH):
745 x 500 x 735 mm
Packed Dimension (WxDxH):
1150 x 610 x 980 mm
Other
GTIN / EAN:
5708181755461
Temperature Range:
+2 to +10 °C
Thermometer:
Yes
20 l KEG:
6 pcs
30 l KEG:
1 pcs
50 l KEG:
1 pcs

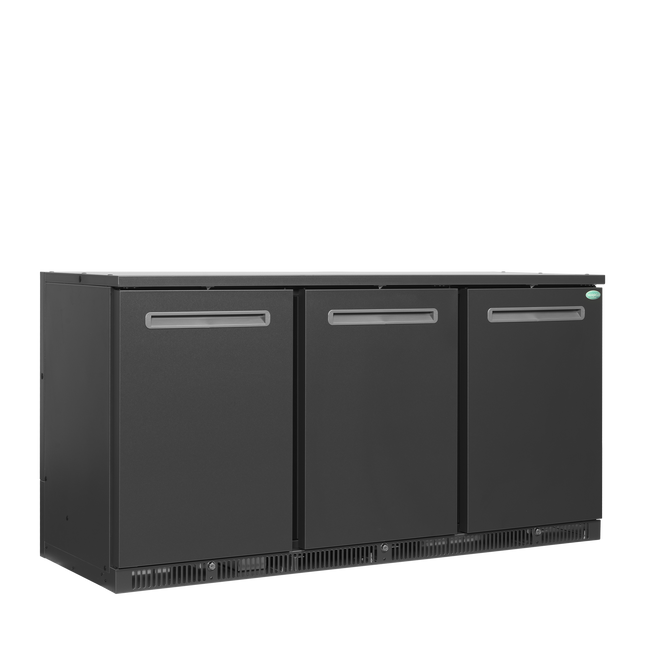

Suitable for bottles and KEGS Low energy consumption Adjustable plate shelves LED interior light (when door is open) Adjustable legs Skinplate exterior/interior Digital controller and temperature display Automatic defrost Easy maintenance condenser LockThe SGD range of bottle coolers/keg coolers combines versatility, durability, and style. Designed for storing bottles or 20L/30L kegs, it features energy-efficient cooling, adjustable shelves, and a scratch-resistant anthracite finish. Choose between solid doors or glass doors to suit your needs. Perfect for hospitality environments, the SGD delivers reliable performance and a sleek, modern look.Technical specificationsMeasures and Content
Gross / Net Weight:
151 / 135 kg
40ft Container Load :
50 pcs
Bottles 330 ml:
365 pcs
Bottles 500 ml PET:
381 pcs
Cans 330 ml:
603 pcs
Cans 500 ml:
372 pcs
Gross / Net Volume:
434 / 401 l
Climate Class:
4
Design and Material
Bottom Shelf Dimensions:
1605 x 220 mm
Exterior Finish:
Anthracite RAL 7021
Interior Finish:
Silver
Door No & Type:
3 hinged solid doors
Door Reversible:
No
Shelf Color:
Silver
Shelf Dimensions:
510 x 355 mm & 546 x 355 mm
Feet / Legs:
Adjustable feet
Lock:
Yes
Interior Light:
LED
Cooling and Functions
Type of Controller:
Electronic
Type of Cooling:
Ventilated
Type of Defrost:
Automatic
Refrigerant Charge:
85 g
Refrigerant:
R290
Power and Consumption
Energy Class:
D
Annual Energy Cons.:
855 kWh/year
Energy Consumption:
2.34 kWh/24h
EEI:
49.4 %
Input Power:
280 W
Voltage / Frequency:
220-240/50 V/Hz
Noise Level:
47 dB(A)
Dimensions
External Dimension (WxDxH):
1670 x 600 x 840
mm
Internal Dimension (WxDxH):
1605 x 425 x 682 mm
Packed Dimension (WxDxH):
1705 x 640 x 975 mm
Other
GTIN / EAN:
5708181755355
Temperature Range:
+2 to +10 °C
Shelves No & Type:
6 adjustable
Max load on Shelves:
165 kg/m²
Thermometer:
Yes
EPREL No:
1074751
Technical specificationsSuitable for bottles and KEGS Low energy consumption Adjustable plate shelves LED interior light (when door is open) Adjustable legs Skinplate exterior/interior Digital controller and temperature display Automatic defrost Easy maintenance condenser LockThe SGD range of bottle coolers/keg coolers combines versatility, durability, and style. Designed for storing bottles or 20L/30L kegs, it features energy-efficient cooling, adjustable shelves, and a scratch-resistant anthracite finish. Choose between solid doors or glass doors to suit your needs. Perfect for hospitality environments, the SGD delivers reliable performance and a sleek, modern look.Technical specificationsMeasures and Content
Gross / Net Weight:
151 / 135 kg
40ft Container Load :
50 pcs
Bottles 330 ml:
365 pcs
Bottles 500 ml PET:
381 pcs
Cans 330 ml:
603 pcs
Cans 500 ml:
372 pcs
Gross / Net Volume:
434 / 401 l
Climate Class:
4
Design and Material
Bottom Shelf Dimensions:
1605 x 220 mm
Exterior Finish:
Anthracite RAL 7021
Interior Finish:
Silver
Door No & Type:
3 hinged solid doors
Door Reversible:
No
Shelf Color:
Silver
Shelf Dimensions:
510 x 355 mm & 546 x 355 mm
Feet / Legs:
Adjustable feet
Lock:
Yes
Interior Light:
LED
Cooling and Functions
Type of Controller:
Electronic
Type of Cooling:
Ventilated
Type of Defrost:
Automatic
Refrigerant Charge:
85 g
Refrigerant:
R290
Power and Consumption
Energy Class:
D
Annual Energy Cons.:
855 kWh/year
Energy Consumption:
2.34 kWh/24h
EEI:
49.4 %
Input Power:
280 W
Voltage / Frequency:
220-240/50 V/Hz
Noise Level:
47 dB(A)
Dimensions
External Dimension (WxDxH):
1670 x 600 x 840
mm
Internal Dimension (WxDxH):
1605 x 425 x 682 mm
Packed Dimension (WxDxH):
1705 x 640 x 975 mm
Other
GTIN / EAN:
5708181755355
Temperature Range:
+2 to +10 °C
Shelves No & Type:
6 adjustable
Max load on Shelves:
165 kg/m²
Thermometer:
Yes
EPREL No:
1074751
Black interior and exterior Internal vertical LED light Low energy consumption Self-closing heated glass doors Ventilated cooling Adjustable shelves behind each door Digital controller and temperature display Perfect display for frozen foods Triple glazed insulated glass Stainless steel base with mirror effectThe Atom Maxi range of display freezers offers great quality at a competitive price. It comes with or 1, 2 or 3 self-closing glass doors, LED lighting, and adjustable shelves for optimal product presentation. It has an efficient ventilated cooling system, automatic defrost, and an easy-to-use temperature controller. Also available in a cooler version.Technical specificationsMeasures and Content
Gross / Net Weight:
270 / 240 kg
40ft Container Load :
27 pcs
Gross / Net Volume:
1006 / 702 l
Climate Class:
3
Design and Material
Exterior Finish:
Black RAL9005
Interior Finish:
Black
Door No & Type:
2 hinged glass doors
Door Reversible:
No
Shelf Color:
Black
Shelf Dimensions:
551 x 470 mm
Castors:
4 castors
Interior Light:
LED
Cooling and Functions
Type of Controller:
Electronic
Type of Cooling:
Ventilated
Type of Defrost:
Automatic
Refrigerant:
R290
Refrigerant Charge:
2 x 80 g
Power and Consumption
Energy Class:
D
Energy Consumption:
17.47 kWh/24h
Annual Energy Cons.:
6377 kWh/year
EEI:
46.3 %
Input Power:
1205 W
Voltage / Frequency:
220-240/50 V/Hz
Noise Level:
65 dB(A)
Dimensions
External Dimension (WxDxH):
1253 x 760 x 2003
mm
Internal Dimension (WxDxH):
1133 x 580 x 1538 mm
Packed Dimension (WxDxH):
1278 x 780 x 2090 mm
Other
GTIN / EAN:
5708181738624
Total Display Area:
1.39 m²
Temperature Range:
-18 to -22 °C
Shelves No & Type:
10 adjustable
Max load on Shelves:
140 kg/m²
Thermometer:
Yes
EPREL No:
1556603
Max Ambient:
+25°C, 60% RH
Technical specificationsBlack interior and exterior Internal vertical LED light Low energy consumption Self-closing heated glass doors Ventilated cooling Adjustable shelves behind each door Digital controller and temperature display Perfect display for frozen foods Triple glazed insulated glass Stainless steel base with mirror effectThe Atom Maxi range of display freezers offers great quality at a competitive price. It comes with or 1, 2 or 3 self-closing glass doors, LED lighting, and adjustable shelves for optimal product presentation. It has an efficient ventilated cooling system, automatic defrost, and an easy-to-use temperature controller. Also available in a cooler version.Technical specificationsMeasures and Content
Gross / Net Weight:
270 / 240 kg
40ft Container Load :
27 pcs
Gross / Net Volume:
1006 / 702 l
Climate Class:
3
Design and Material
Exterior Finish:
Black RAL9005
Interior Finish:
Black
Door No & Type:
2 hinged glass doors
Door Reversible:
No
Shelf Color:
Black
Shelf Dimensions:
551 x 470 mm
Castors:
4 castors
Interior Light:
LED
Cooling and Functions
Type of Controller:
Electronic
Type of Cooling:
Ventilated
Type of Defrost:
Automatic
Refrigerant:
R290
Refrigerant Charge:
2 x 80 g
Power and Consumption
Energy Class:
D
Energy Consumption:
17.47 kWh/24h
Annual Energy Cons.:
6377 kWh/year
EEI:
46.3 %
Input Power:
1205 W
Voltage / Frequency:
220-240/50 V/Hz
Noise Level:
65 dB(A)
Dimensions
External Dimension (WxDxH):
1253 x 760 x 2003
mm
Internal Dimension (WxDxH):
1133 x 580 x 1538 mm
Packed Dimension (WxDxH):
1278 x 780 x 2090 mm
Other
GTIN / EAN:
5708181738624
Total Display Area:
1.39 m²
Temperature Range:
-18 to -22 °C
Shelves No & Type:
10 adjustable
Max load on Shelves:
140 kg/m²
Thermometer:
Yes
EPREL No:
1556603
Max Ambient:
+25°C, 60% RH
Tefcold CRPF2430 - Shelf Rack System KitEnhance your storage capacity with the Tefcold CRPF2430 - Shelf Rack System Kit. This high-quality shelf rack system features durable construction, advanced design, and easy assembly.Perfect for storing food, beverages, and other essentials, the Tefcold CRPF2430 - Shelf Rack System Kit is designed to meet the demands of busy commercial kitchens.Technical specificationsArrayArrayTechnical specificationsMeasures and Content
Gross / Net Weight:
88 / 76 kg
40ft Container Load :
100 pcs
Other
GTIN / EAN:
5708181722104
Suitable for bottles and KEGS Low energy consumption Adjustable plate shelves Lock Adjustable legs Skinplate exterior/interior Digital controller and temperature display LED interior light (when door is open) Automatic defrost Easy maintenance condenserThe SGD range of bottle coolers/keg coolers combines versatility, durability, and style. Designed for storing bottles or 20L/30L kegs, it features energy-efficient cooling, adjustable shelves, and a scratch-resistant anthracite finish. Choose between solid doors or glass doors to suit your needs. Perfect for hospitality environments, the SGD delivers reliable performance and a sleek, modern look.Technical specificationsMeasures and Content
Gross / Net Weight:
111 / 98 kg
40ft Container Load :
76 pcs
Bottles 330 ml:
231 pcs
Bottles 500 ml PET:
241 pcs
Cans 330 ml:
386 pcs
Cans 500 ml:
268 pcs
Gross / Net Volume:
282 / 260 l
Climate Class:
4
Design and Material
Bottom Shelf Dimensions:
1042 x 220 mm
Exterior Finish:
Anthracite RAL 7021
Interior Finish:
Silver
Door No & Type:
2 hinged solid doors
Door Reversible:
No
Shelf Color:
Silver
Shelf Dimensions:
510 x 355 mm
Feet / Legs:
Adjustable feet
Lock:
Yes
Interior Light:
LED
Cooling and Functions
Type of Controller:
Electronic
Type of Cooling:
Ventilated
Type of Defrost:
Automatic
Refrigerant Charge:
85 g
Refrigerant:
R290
Power and Consumption
Energy Class:
E
Annual Energy Cons.:
889 kWh/year
Energy Consumption:
2.44 kWh/24h
EEI:
63.7 %
Input Power:
280 W
Voltage / Frequency:
220-240/50 V/Hz
Noise Level:
47 dB(A)
Dimensions
External Dimension (WxDxH):
1110 x 600 x 840
mm
Internal Dimension (WxDxH):
1040 x 425 x 682 mm
Packed Dimension (WxDxH):
1145 x 640 x 965 mm
Other
GTIN / EAN:
5708181755331
Temperature Range:
+2 to +10 °C
Shelves No & Type:
4 adjustable
Max load on Shelves:
165 kg/m²
Thermometer:
Yes
EPREL No:
1074643
Technical specificationsSuitable for bottles and KEGS Low energy consumption Adjustable plate shelves Lock Adjustable legs Skinplate exterior/interior Digital controller and temperature display LED interior light (when door is open) Automatic defrost Easy maintenance condenserThe SGD range of bottle coolers/keg coolers combines versatility, durability, and style. Designed for storing bottles or 20L/30L kegs, it features energy-efficient cooling, adjustable shelves, and a scratch-resistant anthracite finish. Choose between solid doors or glass doors to suit your needs. Perfect for hospitality environments, the SGD delivers reliable performance and a sleek, modern look.Technical specificationsMeasures and Content
Gross / Net Weight:
111 / 98 kg
40ft Container Load :
76 pcs
Bottles 330 ml:
231 pcs
Bottles 500 ml PET:
241 pcs
Cans 330 ml:
386 pcs
Cans 500 ml:
268 pcs
Gross / Net Volume:
282 / 260 l
Climate Class:
4
Design and Material
Bottom Shelf Dimensions:
1042 x 220 mm
Exterior Finish:
Anthracite RAL 7021
Interior Finish:
Silver
Door No & Type:
2 hinged solid doors
Door Reversible:
No
Shelf Color:
Silver
Shelf Dimensions:
510 x 355 mm
Feet / Legs:
Adjustable feet
Lock:
Yes
Interior Light:
LED
Cooling and Functions
Type of Controller:
Electronic
Type of Cooling:
Ventilated
Type of Defrost:
Automatic
Refrigerant Charge:
85 g
Refrigerant:
R290
Power and Consumption
Energy Class:
E
Annual Energy Cons.:
889 kWh/year
Energy Consumption:
2.44 kWh/24h
EEI:
63.7 %
Input Power:
280 W
Voltage / Frequency:
220-240/50 V/Hz
Noise Level:
47 dB(A)
Dimensions
External Dimension (WxDxH):
1110 x 600 x 840
mm
Internal Dimension (WxDxH):
1040 x 425 x 682 mm
Packed Dimension (WxDxH):
1145 x 640 x 965 mm
Other
GTIN / EAN:
5708181755331
Temperature Range:
+2 to +10 °C
Shelves No & Type:
4 adjustable
Max load on Shelves:
165 kg/m²
Thermometer:
Yes
EPREL No:
1074643
Tefcold Cold Room Panels 80 mm - CR 180x210x220Designed for high-end cold storage applications, the Tefcold Cold Room Panels 80 mm - CR 180x210x220 are a premium storage solution. Constructed from durable materials, these panels feature advanced insulation system and sleek design.Perfect for storing food, beverages, and other essentials, the Tefcold Cold Room Panels 80 mm - CR 180x210x220 are designed to meet the demands of busy commercial kitchens.Technical specificationsOnly panels - without cooling unit Interlocking connection system 80 mm panel insulation Many customisation possibilities Easy access to products Easy assembly Anti-slip floor in SS304 stainless steel Shelves available as accessory Ramp available as accessory for easy accessOur range of cold room panels are available with 80 mm or 120 mm of effective polyurethane insulation and comes in various sizes. They have an easy interlocking system which makes assembly quick and hassle-free. The modular panels are interchangeable, so you can move the position of the door and adapt the room to fit your needs. Monoblock refrigeration units can be ordered separately.Technical specificationsMeasures and Content
Gross / Net Weight:
405 / 382 kg
40ft Container Load :
16 pcs
Internal Volume:
6.49 m³
Design and Material
Exterior Finish:
White
Interior Finish:
White
Door No & Type:
1 hinged solid door
Door Reversible:
Yes
Lock:
Yes
Dimensions
External Dimension (WxDxH):
1800 x 2100 x 2200
mm
Internal Dimension (WxDxH):
1640 x 1940 x 2040 mm
Packed Dimension (WxDxH):
2180 x 1270 x 1230 mm
Other
GTIN / EAN:
5708181711979
Insulation Density:
42 kg/m³
Wall Thickness:
80 mm
Max Load on Floor:
1500 kg/m²
Reversible glass door Flat integrated evaporator Silent operation Low energy consumption Adjustable shelves Lock LED interior lightThe TM range of absorption minibars is a popular choice for hotel rooms, meeting rooms, and boardrooms. With a silent running absorption refrigeration system, it will not disturb your guests. The minibar comes with internal LED lighting that turns on when the door is opened. The unit can easily be integrated into the existing interior. Choose between solid door or glass door models in different sizes.Technical specificationsMeasures and Content
Gross / Net Weight:
22 / 20 kg
40ft Container Load :
360 pcs
Gross / Net Volume:
36 / 35 l
Climate Class:
N
Design and Material
Exterior Finish:
Black
Interior Finish:
ABS, RAL7005
Door No & Type:
1 hinged glass door
Door Reversible:
Yes
Shelf Color:
Grey
Shelf Dimensions:
322x125
Feet / Legs:
4 adjustable feet
Lock:
Yes
Interior Light:
LED
Cooling and Functions
Type of Controller:
Electronic
Type of Cooling:
Absorption
Type of Defrost:
Automatic
Refrigerant:
NH3
Refrigerant Charge:
65 g
Power and Consumption
Energy Class:
G
Energy Consumption:
0.63 kWh/24h
Annual Energy Cons.:
231 kWh/year
EEI:
298.1 %
Input Power:
50 W
Voltage / Frequency:
220-240/50 V/Hz
Dimensions
External Dimension (WxDxH):
402 x 453 x 560
mm
Internal Dimension (WxDxH):
312 x 250 x 455 mm
Packed Dimension (WxDxH):
450 x 495 x 600 mm
Other
GTIN / EAN:
5708181738433
Temperature Range:
+5 to +14 °C
Shelves No & Type:
2 wire shelves grey
Max load on Shelves:
10 kg/m²
Thermometer:
Yes
EPREL No:
1989800
Technical specificationsReversible glass door Flat integrated evaporator Silent operation Low energy consumption Adjustable shelves Lock LED interior lightThe TM range of absorption minibars is a popular choice for hotel rooms, meeting rooms, and boardrooms. With a silent running absorption refrigeration system, it will not disturb your guests. The minibar comes with internal LED lighting that turns on when the door is opened. The unit can easily be integrated into the existing interior. Choose between solid door or glass door models in different sizes.Technical specificationsMeasures and Content
Gross / Net Weight:
22 / 20 kg
40ft Container Load :
360 pcs
Gross / Net Volume:
36 / 35 l
Climate Class:
N
Design and Material
Exterior Finish:
Black
Interior Finish:
ABS, RAL7005
Door No & Type:
1 hinged glass door
Door Reversible:
Yes
Shelf Color:
Grey
Shelf Dimensions:
322x125
Feet / Legs:
4 adjustable feet
Lock:
Yes
Interior Light:
LED
Cooling and Functions
Type of Controller:
Electronic
Type of Cooling:
Absorption
Type of Defrost:
Automatic
Refrigerant:
NH3
Refrigerant Charge:
65 g
Power and Consumption
Energy Class:
G
Energy Consumption:
0.63 kWh/24h
Annual Energy Cons.:
231 kWh/year
EEI:
298.1 %
Input Power:
50 W
Voltage / Frequency:
220-240/50 V/Hz
Dimensions
External Dimension (WxDxH):
402 x 453 x 560
mm
Internal Dimension (WxDxH):
312 x 250 x 455 mm
Packed Dimension (WxDxH):
450 x 495 x 600 mm
Other
GTIN / EAN:
5708181738433
Temperature Range:
+5 to +14 °C
Shelves No & Type:
2 wire shelves grey
Max load on Shelves:
10 kg/m²
Thermometer:
Yes
EPREL No:
1989800
Excellent product visibility LED light under each shelf Temperature Class 3M1 Front glass hinges forward if required Flat top/glass top Rear glass sliding doors Adjustable feet and castors Digital controller and temperature display Easy to clean condenser filterThe PDA3-CTF range of refrigerated display counters has a flat glass structure, where the front hinges forward for easy cleaning. It is a premium design made with high quality materials and comes in several sizes. It offers features such as glass shelves with LED lighting underneath, antimist front glass, and an efficient ventilated cooling system.Technical specificationsMeasures and Content
Gross / Net Weight:
320 / 253 kg
40ft Container Load :
15 pcs
Gross / Net Volume:
680 / 432 l
Climate Class:
3
Design and Material
Exterior Finish:
Black / Glass
Interior Finish:
Stainless steel / Glass
Door No & Type:
2 sliding glass doors
Door Reversible:
Yes
Shelf Dimensions:
1416 x 400 mm
Interior Light:
LED
Castors:
4 wheels
Cooling and Functions
Type of Controller:
Electronic
Type of Defrost:
Automatic
Refrigerant Charge:
145 g
Refrigerant:
R290
Power and Consumption
Energy Class:
B
Annual Energy Cons.:
2825 kWh/year
Energy Consumption:
7.74 kWh/24h
EEI:
16.9 %
Input Power:
790 W
Voltage / Frequency:
220-240/50 V/Hz
Noise Level:
65 dB(A)
Dimensions
External Dimension (WxDxH):
1500 x 750 x 1360
mm
Internal Dimension (WxDxH):
1446 x 600 x 808 mm
Packed Dimension (WxDxH):
1580 x 820 x 1475 mm
Other
GTIN / EAN:
5708181756291
Total Display Area:
2.98 m²
Temperature Range:
-1 to +5 °C
Shelves No & Type:
3 glass shelves + base
Thermometer:
Yes
EPREL No:
2427384
Technical specificationsExcellent product visibility LED light under each shelf Temperature Class 3M1 Front glass hinges forward if required Flat top/glass top Rear glass sliding doors Adjustable feet and castors Digital controller and temperature display Easy to clean condenser filterThe PDA3-CTF range of refrigerated display counters has a flat glass structure, where the front hinges forward for easy cleaning. It is a premium design made with high quality materials and comes in several sizes. It offers features such as glass shelves with LED lighting underneath, antimist front glass, and an efficient ventilated cooling system.Technical specificationsMeasures and Content
Gross / Net Weight:
320 / 253 kg
40ft Container Load :
15 pcs
Gross / Net Volume:
680 / 432 l
Climate Class:
3
Design and Material
Exterior Finish:
Black / Glass
Interior Finish:
Stainless steel / Glass
Door No & Type:
2 sliding glass doors
Door Reversible:
Yes
Shelf Dimensions:
1416 x 400 mm
Interior Light:
LED
Castors:
4 wheels
Cooling and Functions
Type of Controller:
Electronic
Type of Defrost:
Automatic
Refrigerant Charge:
145 g
Refrigerant:
R290
Power and Consumption
Energy Class:
B
Annual Energy Cons.:
2825 kWh/year
Energy Consumption:
7.74 kWh/24h
EEI:
16.9 %
Input Power:
790 W
Voltage / Frequency:
220-240/50 V/Hz
Noise Level:
65 dB(A)
Dimensions
External Dimension (WxDxH):
1500 x 750 x 1360
mm
Internal Dimension (WxDxH):
1446 x 600 x 808 mm
Packed Dimension (WxDxH):
1580 x 820 x 1475 mm
Other
GTIN / EAN:
5708181756291
Total Display Area:
2.98 m²
Temperature Range:
-1 to +5 °C
Shelves No & Type:
3 glass shelves + base
Thermometer:
Yes
EPREL No:
2427384
Reversible glass door Flat integrated evaporator Silent operation Low energy consumption Adjustable shelves Lock LED interior lightThe TM range of absorption minibars is a popular choice for hotel rooms, meeting rooms, and boardrooms. With a silent running absorption refrigeration system, it will not disturb your guests. The minibar comes with internal LED lighting that turns on when the door is opened. The unit can easily be integrated into the existing interior. Choose between solid door or glass door models in different sizes.Technical specificationsMeasures and Content
Gross / Net Weight:
22.5 / 20.5 kg
40ft Container Load :
500 pcs
Gross / Net Volume:
28 / 26 l
Climate Class:
N
Design and Material
Exterior Finish:
Black
Interior Finish:
ABS, RAL7005
Door No & Type:
1 hinged glass door
Door Reversible:
Yes
Shelf Dimensions:
322x125
Feet / Legs:
4 adjustable feet
Shelf Color:
Grey
Lock:
Yes
Interior Light:
LED
Cooling and Functions
Type of Controller:
Electronic
Type of Defrost:
Automatic
Refrigerant:
NH3
Refrigerant Charge:
65 g
Type of Cooling:
Absorption
Power and Consumption
Input Power:
50 W
Voltage / Frequency:
220-240/50 V/Hz
Energy Class:
G
Energy Consumption:
0.63 kWh/24h
Annual Energy Cons.:
230 kWh/year
EEI:
299.1 %
Dimensions
External Dimension (WxDxH):
402 x 429 x 500
mm
Internal Dimension (WxDxH):
312 x 225 x 395 mm
Packed Dimension (WxDxH):
450 x 470 x 540 mm
Other
GTIN / EAN:
5708181738426
Temperature Range:
+5 to +14 °C
Shelves No & Type:
1 wire shelves grey
Max load on Shelves:
10 kg/m²
Thermometer:
Yes
EPREL No:
1989785
Technical specificationsReversible glass door Flat integrated evaporator Silent operation Low energy consumption Adjustable shelves Lock LED interior lightThe TM range of absorption minibars is a popular choice for hotel rooms, meeting rooms, and boardrooms. With a silent running absorption refrigeration system, it will not disturb your guests. The minibar comes with internal LED lighting that turns on when the door is opened. The unit can easily be integrated into the existing interior. Choose between solid door or glass door models in different sizes.Technical specificationsMeasures and Content
Gross / Net Weight:
22.5 / 20.5 kg
40ft Container Load :
500 pcs
Gross / Net Volume:
28 / 26 l
Climate Class:
N
Design and Material
Exterior Finish:
Black
Interior Finish:
ABS, RAL7005
Door No & Type:
1 hinged glass door
Door Reversible:
Yes
Shelf Dimensions:
322x125
Feet / Legs:
4 adjustable feet
Shelf Color:
Grey
Lock:
Yes
Interior Light:
LED
Cooling and Functions
Type of Controller:
Electronic
Type of Defrost:
Automatic
Refrigerant:
NH3
Refrigerant Charge:
65 g
Type of Cooling:
Absorption
Power and Consumption
Input Power:
50 W
Voltage / Frequency:
220-240/50 V/Hz
Energy Class:
G
Energy Consumption:
0.63 kWh/24h
Annual Energy Cons.:
230 kWh/year
EEI:
299.1 %
Dimensions
External Dimension (WxDxH):
402 x 429 x 500
mm
Internal Dimension (WxDxH):
312 x 225 x 395 mm
Packed Dimension (WxDxH):
450 x 470 x 540 mm
Other
GTIN / EAN:
5708181738426
Temperature Range:
+5 to +14 °C
Shelves No & Type:
1 wire shelves grey
Max load on Shelves:
10 kg/m²
Thermometer:
Yes
EPREL No:
1989785

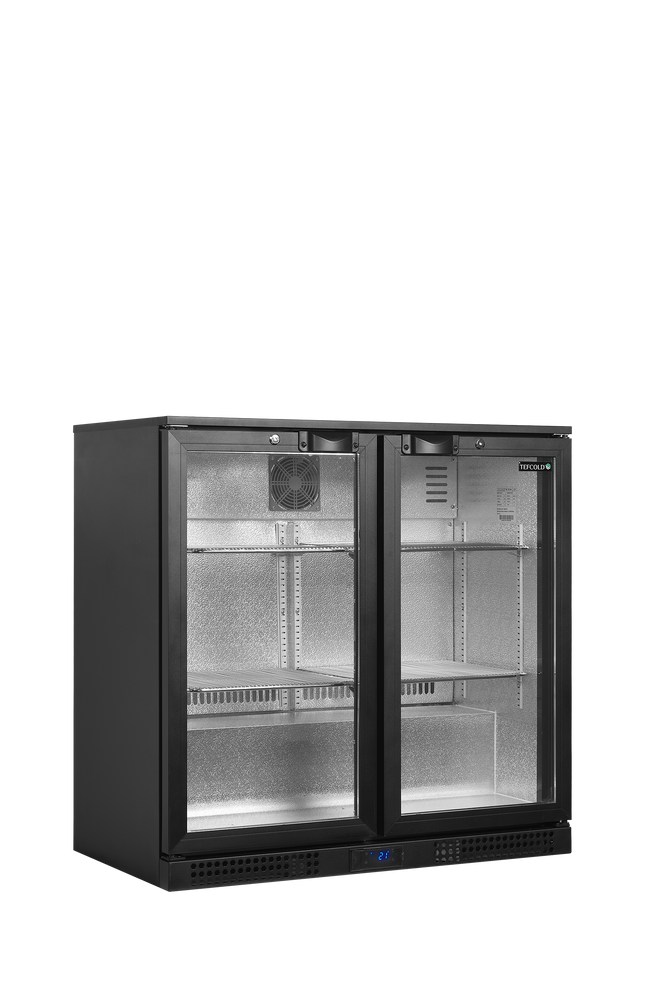

EU Energy Class A Approx. 59% more energy efficient than previous range Ventilated cooling for fast pull-down and even temperature Energy saving variable speed compressor Double glazed tempered glass Hinged alu-framed glass doors Easy access electronic thermostat Adjustable shelves behind each door LED interior light LockThe BA is a range of high-quality backbars. It features aluminium doors and chrome shelves with closely-spaced wires, to give stability and high capacity. Double glazed glass doors offer great product visibility as well as a lower energy consumption. It is available with 1, 2, and 3 doors – choose between hinged or sliding doors. To ensure that the backbar fits into any bar environment, it comes in two heights: 870 mm and 900 mm.
The new range of backbars is highly energy efficient and uses in average 59% less energy compared to the previous models from the same range.Technical specificationsMeasures and Content
Gross / Net Weight:
70 / 64 kg
40ft Container Load :
96 pcs
Bottles 330 ml:
143 pcs
Bottles 500 ml PET:
143 pcs
Cans 330 ml:
276 pcs
Cans 500 ml:
168 pcs
Gross / Net Volume:
196 / 188 l
Climate Class:
4
Design and Material
Exterior Finish:
Black
Interior Finish:
Stucco aluminium
Door No & Type:
2 hinged glass doors
Door Reversible:
No
Shelf Color:
Chrome
Shelf Dimensions:
395x328 mm
Feet / Legs:
4 adjustable feet
Lock:
Yes
Interior Light:
LED
Cooling and Functions
Type of Controller:
Electronic
Type of Cooling:
Ventilated
Type of Defrost:
Automatic
Refrigerant:
R600a
Refrigerant Charge:
70 g
Power and Consumption
Energy Class:
A
Energy Consumption:
1.08 kWh/24h
Annual Energy Cons.:
394 kWh/year
EEI:
9 %
Input Power:
115 W
Voltage / Frequency:
220-240/50 V/Hz
Noise Level:
44 dB(A)
Dimensions
External Dimension (WxDxH):
900 x 545 x 900
mm
Internal Dimension (WxDxH):
810 x 418 x 734 mm
Packed Dimension (WxDxH):
985 x 575 x 970 mm
Other
GTIN / EAN:
5708181721961
Total Display Area:
0.52 m²
Temperature Range:
+2 to +10 °C
Shelves No & Type:
4 wire shelves chrome
Thermometer:
Yes
EPREL No:
1431559
Max Ambient:
+30°C, 55% RH
Technical specificationsEU Energy Class A Approx. 59% more energy efficient than previous range Ventilated cooling for fast pull-down and even temperature Energy saving variable speed compressor Double glazed tempered glass Hinged alu-framed glass doors Easy access electronic thermostat Adjustable shelves behind each door LED interior light LockThe BA is a range of high-quality backbars. It features aluminium doors and chrome shelves with closely-spaced wires, to give stability and high capacity. Double glazed glass doors offer great product visibility as well as a lower energy consumption. It is available with 1, 2, and 3 doors – choose between hinged or sliding doors. To ensure that the backbar fits into any bar environment, it comes in two heights: 870 mm and 900 mm.
The new range of backbars is highly energy efficient and uses in average 59% less energy compared to the previous models from the same range.Technical specificationsMeasures and Content
Gross / Net Weight:
70 / 64 kg
40ft Container Load :
96 pcs
Bottles 330 ml:
143 pcs
Bottles 500 ml PET:
143 pcs
Cans 330 ml:
276 pcs
Cans 500 ml:
168 pcs
Gross / Net Volume:
196 / 188 l
Climate Class:
4
Design and Material
Exterior Finish:
Black
Interior Finish:
Stucco aluminium
Door No & Type:
2 hinged glass doors
Door Reversible:
No
Shelf Color:
Chrome
Shelf Dimensions:
395x328 mm
Feet / Legs:
4 adjustable feet
Lock:
Yes
Interior Light:
LED
Cooling and Functions
Type of Controller:
Electronic
Type of Cooling:
Ventilated
Type of Defrost:
Automatic
Refrigerant:
R600a
Refrigerant Charge:
70 g
Power and Consumption
Energy Class:
A
Energy Consumption:
1.08 kWh/24h
Annual Energy Cons.:
394 kWh/year
EEI:
9 %
Input Power:
115 W
Voltage / Frequency:
220-240/50 V/Hz
Noise Level:
44 dB(A)
Dimensions
External Dimension (WxDxH):
900 x 545 x 900
mm
Internal Dimension (WxDxH):
810 x 418 x 734 mm
Packed Dimension (WxDxH):
985 x 575 x 970 mm
Other
GTIN / EAN:
5708181721961
Total Display Area:
0.52 m²
Temperature Range:
+2 to +10 °C
Shelves No & Type:
4 wire shelves chrome
Thermometer:
Yes
EPREL No:
1431559
Max Ambient:
+30°C, 55% RH
Great product presentation Heated glass door Fixed freezing shelves Internal LED light Digital thermometer Defrost water drain Adjustable feetThe UFSC range of display freezers offers great product presentation and a competitive price. It has a heated glass door to prevent condensation and a defrost drain for easy maintenance. It has static cooling and fixed freezer shelves with built-in evaporator coils to ensure an even temperature throughout the cabinet. The display freezer comes in black and white, with or without an illuminated canopy.Technical specificationsMeasures and Content
Gross / Net Weight:
100 / 95 kg
40ft Container Load :
54 pcs
Gross / Net Volume:
300 / 270 l
Climate Class:
4
Canopy Type:
-
Design and Material
Exterior Finish:
White
Interior Finish:
White
Door No & Type:
1 heated hinged glass door
Door Reversible:
No
Shelf Color:
Chrome
Shelf Dimensions:
470 x 413 mm
Feet / Legs:
2 adjustable feet
Castors:
2 rollers
Lock:
Yes
Interior Light:
LED
Cooling and Functions
Type of Controller:
Mechanical
Type of Cooling:
Static
Type of Defrost:
Manual
Refrigerant:
R290
Refrigerant Charge:
85 g
Power and Consumption
Energy Class:
C
Energy Consumption:
8.267 kWh/24h
Annual Energy Cons.:
3017.45 kWh/year
EEI:
34.5 %
Input Power:
350 W
Voltage / Frequency:
220-240/50 V/Hz
Noise Level:
45 dB(A)
Dimensions
External Dimension (WxDxH):
595 x 640 x 1840
mm
Internal Dimension (WxDxH):
470 x 440 x 1545 mm
Packed Dimension (WxDxH):
680 x 710 x 1940 mm
Other
GTIN / EAN:
5708181722036
Total Display Area:
0.74 m²
Temperature Range:
-23 to -18 °C
Shelves No & Type:
6 fixed freezing shelves
Max load on Shelves:
110 kg/m²
Thermometer:
Yes
EPREL No:
2723529
Max Ambient:
+25°C, 60% RH
Technical specificationsGreat product presentation Heated glass door Fixed freezing shelves Internal LED light Digital thermometer Defrost water drain Adjustable feetThe UFSC range of display freezers offers great product presentation and a competitive price. It has a heated glass door to prevent condensation and a defrost drain for easy maintenance. It has static cooling and fixed freezer shelves with built-in evaporator coils to ensure an even temperature throughout the cabinet. The display freezer comes in black and white, with or without an illuminated canopy.Technical specificationsMeasures and Content
Gross / Net Weight:
100 / 95 kg
40ft Container Load :
54 pcs
Gross / Net Volume:
300 / 270 l
Climate Class:
4
Canopy Type:
-
Design and Material
Exterior Finish:
White
Interior Finish:
White
Door No & Type:
1 heated hinged glass door
Door Reversible:
No
Shelf Color:
Chrome
Shelf Dimensions:
470 x 413 mm
Feet / Legs:
2 adjustable feet
Castors:
2 rollers
Lock:
Yes
Interior Light:
LED
Cooling and Functions
Type of Controller:
Mechanical
Type of Cooling:
Static
Type of Defrost:
Manual
Refrigerant:
R290
Refrigerant Charge:
85 g
Power and Consumption
Energy Class:
C
Energy Consumption:
8.267 kWh/24h
Annual Energy Cons.:
3017.45 kWh/year
EEI:
34.5 %
Input Power:
350 W
Voltage / Frequency:
220-240/50 V/Hz
Noise Level:
45 dB(A)
Dimensions
External Dimension (WxDxH):
595 x 640 x 1840
mm
Internal Dimension (WxDxH):
470 x 440 x 1545 mm
Packed Dimension (WxDxH):
680 x 710 x 1940 mm
Other
GTIN / EAN:
5708181722036
Total Display Area:
0.74 m²
Temperature Range:
-23 to -18 °C
Shelves No & Type:
6 fixed freezing shelves
Max load on Shelves:
110 kg/m²
Thermometer:
Yes
EPREL No:
2723529
Max Ambient:
+25°C, 60% RH
Cold Room Panels 80 mm - CR 180x180x220Tefcold's Cold Room Panels are designed to provide optimal storage and display capabilities for restaurants, hotels, and professional kitchens. With its advanced features and high-quality construction, this panel offers reliable performance and easy maintenance.The CR 180x180x220 features durable materials and robust construction, ensuring long-lasting performance and minimizing downtime. Its modular design allows for easy assembly and customization to fit your specific needs.Perfect for storing and displaying a variety of products, the Cold Room Panels are an excellent addition to any commercial kitchen. Their benefits include improved inventory management, reduced storage costs, and enhanced food safety through precise temperature control.Technical specificationsOnly panels - without cooling unit Interlocking connection system 80 mm panel insulation Many customisation possibilities Easy access to products Easy assembly Anti-slip floor in SS304 stainless steel Shelves available as accessory Ramp available as accessory for easy accessOur range of cold room panels are available with 80 mm or 120 mm of effective polyurethane insulation and comes in various sizes. They have an easy interlocking system which makes assembly quick and hassle-free. The modular panels are interchangeable, so you can move the position of the door and adapt the room to fit your needs. Monoblock refrigeration units can be ordered separately.Technical specificationsMeasures and Content
Gross / Net Weight:
395 / 375 kg
40ft Container Load :
16 pcs
Internal Volume:
5.49 m³
Design and Material
Exterior Finish:
White
Interior Finish:
White
Door No & Type:
1 hinged solid door
Door Reversible:
Yes
Lock:
Yes
Dimensions
External Dimension (WxDxH):
1800 x 1800 x 2200
mm
Internal Dimension (WxDxH):
1640 x 1640 x 2040 mm
Packed Dimension (WxDxH):
2150 x 1250 x 1300 mm
Other
GTIN / EAN:
5708181711955
Insulation Density:
42 kg/m³
Wall Thickness:
80 mm
Max Load on Floor:
1500 kg/m²
Many customisation possibilities Removable cooling unit for easy service Fast pull-down of temperature Ventilated cooling Digital controller and temperature display Adjustable plate shelves Skinplate exterior/interior Optional lock LED Color light with remote controlThe SCL Combi-Line from Serrco offers a range of opportunities. It comes with solid doors as standard but can be customized with different modules/fronts to meet your needs. It features adjustable plate shelves and white LED lighting. The cooling unit is installed as a removable module, which reduces service time from hours to mere minutes.Technical specificationsMeasures and Content
Gross / Net Weight:
139 / 124.5 kg
40ft Container Load :
52 pcs
Gross / Net Volume:
455 / 422 l
Climate Class:
4
Design and Material
Exterior Finish:
Anthracite RAL 7021
Interior Finish:
Silver
Door No & Type:
3 hinged solid doors
Door Reversible:
Yes
Shelf Color:
Silver
Shelf Dimensions:
370 x 428 mm
Bottom Shelf Dimensions:
1345 x 460 mm
Feet / Legs:
Adjustable feet
Lock:
Factory Option
Interior Light:
LED
Cooling and Functions
Type of Controller:
Electronic
Type of Cooling:
Ventilated
Type of Defrost:
Automatic
Refrigerant:
R290
Refrigerant Charge:
80 g
Power and Consumption
Energy Class:
C
Energy Consumption:
1.26 kWh/24h
Annual Energy Cons.:
463 kWh/year
Input Power:
300 W
Voltage / Frequency:
220-240/50 V/Hz
Noise Level:
41 dB(A)
Dimensions
External Dimension (WxDxH):
1720 x 560 x 820
mm
Internal Dimension (WxDxH):
1345.5 x 470 x 735 mm
Packed Dimension (WxDxH):
1775 x 610 x 970 mm
Other
GTIN / EAN:
5708181754938
Temperature Range:
+2 to +10 °C
Shelves No & Type:
6 adjustable
Max load on Shelves:
180 kg/m²
Thermometer:
Yes
Technical specificationsMany customisation possibilities Removable cooling unit for easy service Fast pull-down of temperature Ventilated cooling Digital controller and temperature display Adjustable plate shelves Skinplate exterior/interior Optional lock LED Color light with remote controlThe SCL Combi-Line from Serrco offers a range of opportunities. It comes with solid doors as standard but can be customized with different modules/fronts to meet your needs. It features adjustable plate shelves and white LED lighting. The cooling unit is installed as a removable module, which reduces service time from hours to mere minutes.Technical specificationsMeasures and Content
Gross / Net Weight:
139 / 124.5 kg
40ft Container Load :
52 pcs
Gross / Net Volume:
455 / 422 l
Climate Class:
4
Design and Material
Exterior Finish:
Anthracite RAL 7021
Interior Finish:
Silver
Door No & Type:
3 hinged solid doors
Door Reversible:
Yes
Shelf Color:
Silver
Shelf Dimensions:
370 x 428 mm
Bottom Shelf Dimensions:
1345 x 460 mm
Feet / Legs:
Adjustable feet
Lock:
Factory Option
Interior Light:
LED
Cooling and Functions
Type of Controller:
Electronic
Type of Cooling:
Ventilated
Type of Defrost:
Automatic
Refrigerant:
R290
Refrigerant Charge:
80 g
Power and Consumption
Energy Class:
C
Energy Consumption:
1.26 kWh/24h
Annual Energy Cons.:
463 kWh/year
Input Power:
300 W
Voltage / Frequency:
220-240/50 V/Hz
Noise Level:
41 dB(A)
Dimensions
External Dimension (WxDxH):
1720 x 560 x 820
mm
Internal Dimension (WxDxH):
1345.5 x 470 x 735 mm
Packed Dimension (WxDxH):
1775 x 610 x 970 mm
Other
GTIN / EAN:
5708181754938
Temperature Range:
+2 to +10 °C
Shelves No & Type:
6 adjustable
Max load on Shelves:
180 kg/m²
Thermometer:
Yes
Ideal for optimizing store space Great product visibility Energy saving double glazed low-E glass lids LED interior light with switch Great branding possibilities Includes baskets 4 solid castors, 2 with brakes Canopy available upon requestThe TD500 is a two level display freezer with room for 5 baskets on each level. It is a great choice for optimizing store space and it provides a nice overview of the products inside. Comes with LED lighting, double low-emissivity glass lids, and strong castors for enhanced mobility. Ideal for branding.Technical specificationsMeasures and Content
Gross / Net Weight:
157 / 121 kg
40ft Container Load :
44 pcs
Gross / Net Volume:
450 / 408 l
Climate Class:
4
Design and Material
Exterior Finish:
White
Interior Finish:
White
Lock:
Yes
Interior Light:
LED
Castors:
4 wheels, 2 with brake
Cooling and Functions
Type of Controller:
Mechanical
Type of Cooling:
Static
Type of Defrost:
Manual
Refrigerant Charge:
80 g
Refrigerant:
R290
Power and Consumption
Energy Class:
F
Annual Energy Cons.:
2612 kWh/year
Energy Consumption:
7.16 kWh/24h
EEI:
75 %
Input Power:
650 W
Voltage / Frequency:
220-240/50 V/Hz
Noise Level:
55 dB(A)
Dimensions
External Dimension (WxDxH):
1210 x 790 x 1213
mm
Internal Dimension (WxDxH):
mm
Packed Dimension (WxDxH):
1300 x 885 x 1280 mm
Other
GTIN / EAN:
5708181720353
Temperature Range:
-21 to -15 °C
Thermometer:
No
EPREL No:
1429554
Max Ambient:
+30°C, 55% RH
Lid No & Type:
4 curved sliding temp. glass lids
Basket No & Type:
10 Wire baskets, white
Number of dividers:
10 pcs
Divider System:
Yes
Technical specificationsIdeal for optimizing store space Great product visibility Energy saving double glazed low-E glass lids LED interior light with switch Great branding possibilities Includes baskets 4 solid castors, 2 with brakes Canopy available upon requestThe TD500 is a two level display freezer with room for 5 baskets on each level. It is a great choice for optimizing store space and it provides a nice overview of the products inside. Comes with LED lighting, double low-emissivity glass lids, and strong castors for enhanced mobility. Ideal for branding.Technical specificationsMeasures and Content
Gross / Net Weight:
157 / 121 kg
40ft Container Load :
44 pcs
Gross / Net Volume:
450 / 408 l
Climate Class:
4
Design and Material
Exterior Finish:
White
Interior Finish:
White
Lock:
Yes
Interior Light:
LED
Castors:
4 wheels, 2 with brake
Cooling and Functions
Type of Controller:
Mechanical
Type of Cooling:
Static
Type of Defrost:
Manual
Refrigerant Charge:
80 g
Refrigerant:
R290
Power and Consumption
Energy Class:
F
Annual Energy Cons.:
2612 kWh/year
Energy Consumption:
7.16 kWh/24h
EEI:
75 %
Input Power:
650 W
Voltage / Frequency:
220-240/50 V/Hz
Noise Level:
55 dB(A)
Dimensions
External Dimension (WxDxH):
1210 x 790 x 1213
mm
Internal Dimension (WxDxH):
mm
Packed Dimension (WxDxH):
1300 x 885 x 1280 mm
Other
GTIN / EAN:
5708181720353
Temperature Range:
-21 to -15 °C
Thermometer:
No
EPREL No:
1429554
Max Ambient:
+30°C, 55% RH
Lid No & Type:
4 curved sliding temp. glass lids
Basket No & Type:
10 Wire baskets, white
Number of dividers:
10 pcs
Divider System:
Yes
Elegant design Great product presentation Black interior and exterior Extra high glass door Hinged alu-framed glass door Internal vertical and horizontal LED light Fan assisted coolingThe SCU1425 range of bottle coolers takes affordable display refrigeration to a new level of quality. A black exterior and interior give it an elegant touch. The cooler has a full-height reversible alu-framed glass door, adjustable shelves, and LED interior lighting for optimum product presentation. A fan assisted cooling system ensures even cooling over the whole cabinet. Also available in a frameless glass door model.Technical specificationsMeasures and Content
Gross / Net Weight:
91 / 84 kg
40ft Container Load :
54 pcs
Bottles 330 ml:
272 pcs
Bottles 500 ml PET:
238 pcs
Cans 330 ml:
441 pcs
Cans 500 ml:
308 pcs
Gross / Net Volume:
399 / 263 l
Climate Class:
CC2
Design and Material
Exterior Finish:
Black
Interior Finish:
Black ABS
Door No & Type:
1 hinged glass door
Door Reversible:
No
Shelf Color:
Black
Shelf Dimensions:
491 x 405 mm
Feet / Legs:
2 adjustable feet
Castors:
2 rollers
Lock:
Yes
Interior Light:
LED inside door frame
Cooling and Functions
Type of Controller:
Mechanical
Type of Cooling:
Fan assisted
Type of Defrost:
Automatic
Refrigerant:
R600a
Refrigerant Charge:
70 g
Power and Consumption
Energy Class:
D
Energy Consumption:
1.87 kWh/24h
Annual Energy Cons.:
683 kWh/year
EEI:
38.9 %
Input Power:
178 W
Voltage / Frequency:
220-240/50 V/Hz
Noise Level:
55 dB(A)
Dimensions
External Dimension (WxDxH):
595 x 595 x 1990
mm
Internal Dimension (WxDxH):
505 x 462 x 1742 mm
Packed Dimension (WxDxH):
665 x 715 x 2150 mm
Other
GTIN / EAN:
5708181737450
Temperature Range:
0 to +7 °C
Insulation Density:
32 kg/m³
Shelves No & Type:
5 black sheet metal
Max load on Shelves:
152 kg/m²
Thermometer:
Yes
EPREL No:
647357
Max Ambient:
+30°C, 55% RH
Technical specificationsElegant design Great product presentation Black interior and exterior Extra high glass door Hinged alu-framed glass door Internal vertical and horizontal LED light Fan assisted coolingThe SCU1425 range of bottle coolers takes affordable display refrigeration to a new level of quality. A black exterior and interior give it an elegant touch. The cooler has a full-height reversible alu-framed glass door, adjustable shelves, and LED interior lighting for optimum product presentation. A fan assisted cooling system ensures even cooling over the whole cabinet. Also available in a frameless glass door model.Technical specificationsMeasures and Content
Gross / Net Weight:
91 / 84 kg
40ft Container Load :
54 pcs
Bottles 330 ml:
272 pcs
Bottles 500 ml PET:
238 pcs
Cans 330 ml:
441 pcs
Cans 500 ml:
308 pcs
Gross / Net Volume:
399 / 263 l
Climate Class:
CC2
Design and Material
Exterior Finish:
Black
Interior Finish:
Black ABS
Door No & Type:
1 hinged glass door
Door Reversible:
No
Shelf Color:
Black
Shelf Dimensions:
491 x 405 mm
Feet / Legs:
2 adjustable feet
Castors:
2 rollers
Lock:
Yes
Interior Light:
LED inside door frame
Cooling and Functions
Type of Controller:
Mechanical
Type of Cooling:
Fan assisted
Type of Defrost:
Automatic
Refrigerant:
R600a
Refrigerant Charge:
70 g
Power and Consumption
Energy Class:
D
Energy Consumption:
1.87 kWh/24h
Annual Energy Cons.:
683 kWh/year
EEI:
38.9 %
Input Power:
178 W
Voltage / Frequency:
220-240/50 V/Hz
Noise Level:
55 dB(A)
Dimensions
External Dimension (WxDxH):
595 x 595 x 1990
mm
Internal Dimension (WxDxH):
505 x 462 x 1742 mm
Packed Dimension (WxDxH):
665 x 715 x 2150 mm
Other
GTIN / EAN:
5708181737450
Temperature Range:
0 to +7 °C
Insulation Density:
32 kg/m³
Shelves No & Type:
5 black sheet metal
Max load on Shelves:
152 kg/m²
Thermometer:
Yes
EPREL No:
647357
Max Ambient:
+30°C, 55% RH
Lock Adjustable shelves GN2/1 Digital controller and temperature display Stainless steel exterior and interior Fan assisted cooling Integrated handle Excellent energy efficiency Adjustable feet with rollers to rear Reversible door (spare parts needed)The UR range of storage coolers offers high quality and reliability, wrapped in a clean design with an integrated handle. It has fan assisted cooling to ensure a stabile temperature throughout the cabinet, which is easily controlled by an electronic thermostat. It comes in various sizes with adjustable shelves, making it easy to customize the interior to fit your needs.Technical specificationsMeasures and Content
Gross / Net Weight:
97 / 90 kg
40ft Container Load :
42 pcs
Gross / Net Volume:
620 / 570 l
Climate Class:
4
Design and Material
Exterior Finish:
SS430
Interior Finish:
SS304
Door No & Type:
1 hinged solid door
Door Reversible:
No
Shelf Dimensions:
GN2/1
Feet / Legs:
2 adjustable feet
Shelf Color:
Grey
Castors:
2 rollers
Lock:
Yes
Interior Light:
No
Cooling and Functions
Type of Controller:
Electronic
Type of Defrost:
Automatic, electric
Refrigerant:
R600a
Refrigerant Charge:
70 g
Type of Cooling:
Fan assisted
Power and Consumption
Input Power:
120 W
Voltage / Frequency:
220-240/50 V/Hz
Noise Level:
45 dB(A)
Energy Class:
A
Energy Consumption:
0.82 kWh/24h
Annual Energy Cons.:
299 kWh/year
EEI:
22.4 %
Dimensions
External Dimension (WxDxH):
777 x 745 x 1895
mm
Internal Dimension (WxDxH):
657 x 580 x 1660 mm
Packed Dimension (WxDxH):
840 x 760 x 2100 mm
Other
GTIN / EAN:
5708181737771
Insulation Density:
38 kg/m³
Temperature Range:
0 to +8 °C
Shelves No & Type:
3 adjustable
Max load on Shelves:
196 kg/m²
Thermometer:
Yes
EPREL No:
1990796
Technical specificationsLock Adjustable shelves GN2/1 Digital controller and temperature display Stainless steel exterior and interior Fan assisted cooling Integrated handle Excellent energy efficiency Adjustable feet with rollers to rear Reversible door (spare parts needed)The UR range of storage coolers offers high quality and reliability, wrapped in a clean design with an integrated handle. It has fan assisted cooling to ensure a stabile temperature throughout the cabinet, which is easily controlled by an electronic thermostat. It comes in various sizes with adjustable shelves, making it easy to customize the interior to fit your needs.Technical specificationsMeasures and Content
Gross / Net Weight:
97 / 90 kg
40ft Container Load :
42 pcs
Gross / Net Volume:
620 / 570 l
Climate Class:
4
Design and Material
Exterior Finish:
SS430
Interior Finish:
SS304
Door No & Type:
1 hinged solid door
Door Reversible:
No
Shelf Dimensions:
GN2/1
Feet / Legs:
2 adjustable feet
Shelf Color:
Grey
Castors:
2 rollers
Lock:
Yes
Interior Light:
No
Cooling and Functions
Type of Controller:
Electronic
Type of Defrost:
Automatic, electric
Refrigerant:
R600a
Refrigerant Charge:
70 g
Type of Cooling:
Fan assisted
Power and Consumption
Input Power:
120 W
Voltage / Frequency:
220-240/50 V/Hz
Noise Level:
45 dB(A)
Energy Class:
A
Energy Consumption:
0.82 kWh/24h
Annual Energy Cons.:
299 kWh/year
EEI:
22.4 %
Dimensions
External Dimension (WxDxH):
777 x 745 x 1895
mm
Internal Dimension (WxDxH):
657 x 580 x 1660 mm
Packed Dimension (WxDxH):
840 x 760 x 2100 mm
Other
GTIN / EAN:
5708181737771
Insulation Density:
38 kg/m³
Temperature Range:
0 to +8 °C
Shelves No & Type:
3 adjustable
Max load on Shelves:
196 kg/m²
Thermometer:
Yes
EPREL No:
1990796
Many customisation possibilities Removable cooling unit for easy service Fast pull-down of temperature Adjustable plate shelves White LED lighting Skinplate exterior/interior Digital controller and temperature display Ventilated cooling Optional lockThe SCL Combi-Line from Serrco offers a range of opportunities. It comes with solid doors as standard but can be customized with different modules/fronts to meet your needs. It features adjustable plate shelves and white LED lighting. The cooling unit is installed as a removable module, which reduces service time from hours to mere minutes.Technical specificationsMeasures and Content
Gross / Net Weight:
80.5 / 72.5 kg
40ft Container Load :
112 pcs
Bottles 330 ml:
107 pcs
Bottles 500 ml PET:
110 pcs
Cans 330 ml:
180 pcs
Cans 500 ml:
145 pcs
Gross / Net Volume:
138 / 124 l
Climate Class:
4
Design and Material
Exterior Finish:
Anthracite RAL 7021
Interior Finish:
Silver
Door No & Type:
1 hinged solid door
Door Reversible:
Yes
Shelf Color:
Silver
Shelf Dimensions:
370 x 428 mm
Bottom Shelf Dimensions:
395 x 460 mm
Feet / Legs:
Adjustable feet
Lock:
Factory Option
Interior Light:
LED
Cooling and Functions
Type of Controller:
Electronic
Type of Cooling:
Ventilated
Type of Defrost:
Automatic
Refrigerant:
R290
Refrigerant Charge:
80 g
Power and Consumption
Energy Class:
C
Energy Consumption:
0.74 kWh/24h
Annual Energy Cons.:
270 kWh/year
Input Power:
200 W
Voltage / Frequency:
220-240/50 V/Hz
Noise Level:
41 dB(A)
Dimensions
External Dimension (WxDxH):
770 x 560 x 820
mm
Internal Dimension (WxDxH):
395 x 470 x 735 mm
Packed Dimension (WxDxH):
825 x 610 x 970 mm
Other
GTIN / EAN:
5708181754907
Temperature Range:
+2 to +10 °C
Shelves No & Type:
2 adjustable
Max load on Shelves:
180 kg/m²
Thermometer:
Yes
EPREL No:
2537487
Technical specificationsMany customisation possibilities Removable cooling unit for easy service Fast pull-down of temperature Adjustable plate shelves White LED lighting Skinplate exterior/interior Digital controller and temperature display Ventilated cooling Optional lockThe SCL Combi-Line from Serrco offers a range of opportunities. It comes with solid doors as standard but can be customized with different modules/fronts to meet your needs. It features adjustable plate shelves and white LED lighting. The cooling unit is installed as a removable module, which reduces service time from hours to mere minutes.Technical specificationsMeasures and Content
Gross / Net Weight:
80.5 / 72.5 kg
40ft Container Load :
112 pcs
Bottles 330 ml:
107 pcs
Bottles 500 ml PET:
110 pcs
Cans 330 ml:
180 pcs
Cans 500 ml:
145 pcs
Gross / Net Volume:
138 / 124 l
Climate Class:
4
Design and Material
Exterior Finish:
Anthracite RAL 7021
Interior Finish:
Silver
Door No & Type:
1 hinged solid door
Door Reversible:
Yes
Shelf Color:
Silver
Shelf Dimensions:
370 x 428 mm
Bottom Shelf Dimensions:
395 x 460 mm
Feet / Legs:
Adjustable feet
Lock:
Factory Option
Interior Light:
LED
Cooling and Functions
Type of Controller:
Electronic
Type of Cooling:
Ventilated
Type of Defrost:
Automatic
Refrigerant:
R290
Refrigerant Charge:
80 g
Power and Consumption
Energy Class:
C
Energy Consumption:
0.74 kWh/24h
Annual Energy Cons.:
270 kWh/year
Input Power:
200 W
Voltage / Frequency:
220-240/50 V/Hz
Noise Level:
41 dB(A)
Dimensions
External Dimension (WxDxH):
770 x 560 x 820
mm
Internal Dimension (WxDxH):
395 x 470 x 735 mm
Packed Dimension (WxDxH):
825 x 610 x 970 mm
Other
GTIN / EAN:
5708181754907
Temperature Range:
+2 to +10 °C
Shelves No & Type:
2 adjustable
Max load on Shelves:
180 kg/m²
Thermometer:
Yes
EPREL No:
2537487
Approx. 56% more energy efficient than previous range Double glazed tempered glass Energy saving variable speed compressor Ventilated cooling for fast pull-down and even temperature Easy access electronic thermostat Adjustable shelves LED interior lightThe DB range of backbars comes with 1, 2, or 3 doors with double glazed tempered glass. Choose between sliding doors or hinged doors. The backbar cooler has a black exterior, a stucco aluminium interior, and white plastic-coated wire shelves for easy maintenance. It has ventilated cooling, easily controlled by an electronic thermostat. Ideal for busy bar environments.
The new range of backbars is highly energy efficient and uses in average 56% less energy compared to the previous models from the same range.Technical specificationsMeasures and Content
Gross / Net Weight:
95 / 88 kg
40ft Container Load :
64 pcs
Bottles 330 ml:
218 pcs
Bottles 500 ml PET:
218 pcs
Cans 330 ml:
380 pcs
Cans 500 ml:
266 pcs
Gross / Net Volume:
300 / 278 l
Climate Class:
4
Design and Material
Exterior Finish:
Black RAL9005
Interior Finish:
Stucco aluminium
Door No & Type:
3 hinged glass doors
Door Reversible:
No
Shelf Color:
White
Shelf Dimensions:
395x320 mm / 432x320mm
Feet / Legs:
4 adjustable feet
Lock:
Yes
Interior Light:
LED
Cooling and Functions
Type of Controller:
Electronic
Type of Cooling:
Ventilated
Type of Defrost:
Automatic
Refrigerant Charge:
90 g
Refrigerant:
R600a
Power and Consumption
Energy Class:
B
Annual Energy Cons.:
657 kWh/year
Energy Consumption:
1.8 kWh/24h
EEI:
13 %
Input Power:
125 W
Voltage / Frequency:
220-240/50 V/Hz
Noise Level:
44 dB(A)
Dimensions
External Dimension (WxDxH):
1350 x 520 x 870
mm
Internal Dimension (WxDxH):
1265 x 418 x 720 mm
Packed Dimension (WxDxH):
1435 x 575 x 940 mm
Other
GTIN / EAN:
5708181714017
Total Display Area:
0.75 m²
Temperature Range:
+2 to +10 °C
Shelves No & Type:
6 wire shelves white
Max load on Shelves:
196 kg/m²
Thermometer:
Yes
Display cabinet family:
VC4
Type of refrigeration:
Supermarket cabinet
EPREL No:
1431321
Max Ambient:
+30°C, 55% RH
Technical specificationsApprox. 56% more energy efficient than previous range Double glazed tempered glass Energy saving variable speed compressor Ventilated cooling for fast pull-down and even temperature Easy access electronic thermostat Adjustable shelves LED interior lightThe DB range of backbars comes with 1, 2, or 3 doors with double glazed tempered glass. Choose between sliding doors or hinged doors. The backbar cooler has a black exterior, a stucco aluminium interior, and white plastic-coated wire shelves for easy maintenance. It has ventilated cooling, easily controlled by an electronic thermostat. Ideal for busy bar environments.
The new range of backbars is highly energy efficient and uses in average 56% less energy compared to the previous models from the same range.Technical specificationsMeasures and Content
Gross / Net Weight:
95 / 88 kg
40ft Container Load :
64 pcs
Bottles 330 ml:
218 pcs
Bottles 500 ml PET:
218 pcs
Cans 330 ml:
380 pcs
Cans 500 ml:
266 pcs
Gross / Net Volume:
300 / 278 l
Climate Class:
4
Design and Material
Exterior Finish:
Black RAL9005
Interior Finish:
Stucco aluminium
Door No & Type:
3 hinged glass doors
Door Reversible:
No
Shelf Color:
White
Shelf Dimensions:
395x320 mm / 432x320mm
Feet / Legs:
4 adjustable feet
Lock:
Yes
Interior Light:
LED
Cooling and Functions
Type of Controller:
Electronic
Type of Cooling:
Ventilated
Type of Defrost:
Automatic
Refrigerant Charge:
90 g
Refrigerant:
R600a
Power and Consumption
Energy Class:
B
Annual Energy Cons.:
657 kWh/year
Energy Consumption:
1.8 kWh/24h
EEI:
13 %
Input Power:
125 W
Voltage / Frequency:
220-240/50 V/Hz
Noise Level:
44 dB(A)
Dimensions
External Dimension (WxDxH):
1350 x 520 x 870
mm
Internal Dimension (WxDxH):
1265 x 418 x 720 mm
Packed Dimension (WxDxH):
1435 x 575 x 940 mm
Other
GTIN / EAN:
5708181714017
Total Display Area:
0.75 m²
Temperature Range:
+2 to +10 °C
Shelves No & Type:
6 wire shelves white
Max load on Shelves:
196 kg/m²
Thermometer:
Yes
Display cabinet family:
VC4
Type of refrigeration:
Supermarket cabinet
EPREL No:
1431321
Max Ambient:
+30°C, 55% RH
Frameless glass door Elegant design Black interior and exterior Extra high glass door Great product presentation Internal vertical and horizontal LED light Fan assisted coolingThe SCU1425 range of bottle coolers takes affordable display refrigeration to a new level of quality. A black exterior and interior give it an elegant touch. The cooler has a frameless full-height glass door, adjustable shelves, and LED interior lighting for optimum product presentation. A fan assisted cooling system ensures even cooling over the whole cabinet. Comes as standard with a right hinged or left hinged door.Technical specificationsMeasures and Content
Gross / Net Weight:
87.5 / 77.5 kg
40ft Container Load :
54 pcs
Gross / Net Volume:
387 / 347 l
Bottles 330 ml:
272 pcs
Bottles 500 ml PET:
238 pcs
Cans 330 ml:
441 pcs
Cans 500 ml:
308 pcs
Climate Class:
4
Design and Material
Exterior Finish:
Black
Interior Finish:
Black ABS
Door No & Type:
1 hinged glass door
Door Reversible:
No
Shelf Dimensions:
492 x 405 mm
Feet / Legs:
2 adjustable feet
Shelf Color:
Black
Castors:
2 rollers
Lock:
Yes
Interior Light:
LED inside door frame
Cooling and Functions
Type of Controller:
Mechanical
Type of Defrost:
Automatic
Refrigerant:
R600a
Refrigerant Charge:
85 g
Type of Cooling:
Fan assisted
Power and Consumption
Input Power:
235 W
Voltage / Frequency:
220-240/50 V/Hz
Noise Level:
45 dB(A)
Energy Class:
D
Energy Consumption:
1.87 kWh/24h
Annual Energy Cons.:
683 kWh/year
EEI:
38.9 %
Dimensions
External Dimension (WxDxH):
595 x 595 x 1990
mm
Internal Dimension (WxDxH):
505 x 462 x 1742 mm
Packed Dimension (WxDxH):
665 x 715 x 2150 mm
Other
GTIN / EAN:
5708181737429
Temperature Range:
+2 to +10 °C
Shelves No & Type:
5 black sheet metal
Max load on Shelves:
196 kg/m²
Max Ambient:
+30°C, 55% RH
Thermometer:
Yes
EPREL No:
575918
Technical specificationsFrameless glass door Elegant design Black interior and exterior Extra high glass door Great product presentation Internal vertical and horizontal LED light Fan assisted coolingThe SCU1425 range of bottle coolers takes affordable display refrigeration to a new level of quality. A black exterior and interior give it an elegant touch. The cooler has a frameless full-height glass door, adjustable shelves, and LED interior lighting for optimum product presentation. A fan assisted cooling system ensures even cooling over the whole cabinet. Comes as standard with a right hinged or left hinged door.Technical specificationsMeasures and Content
Gross / Net Weight:
87.5 / 77.5 kg
40ft Container Load :
54 pcs
Gross / Net Volume:
387 / 347 l
Bottles 330 ml:
272 pcs
Bottles 500 ml PET:
238 pcs
Cans 330 ml:
441 pcs
Cans 500 ml:
308 pcs
Climate Class:
4
Design and Material
Exterior Finish:
Black
Interior Finish:
Black ABS
Door No & Type:
1 hinged glass door
Door Reversible:
No
Shelf Dimensions:
492 x 405 mm
Feet / Legs:
2 adjustable feet
Shelf Color:
Black
Castors:
2 rollers
Lock:
Yes
Interior Light:
LED inside door frame
Cooling and Functions
Type of Controller:
Mechanical
Type of Defrost:
Automatic
Refrigerant:
R600a
Refrigerant Charge:
85 g
Type of Cooling:
Fan assisted
Power and Consumption
Input Power:
235 W
Voltage / Frequency:
220-240/50 V/Hz
Noise Level:
45 dB(A)
Energy Class:
D
Energy Consumption:
1.87 kWh/24h
Annual Energy Cons.:
683 kWh/year
EEI:
38.9 %
Dimensions
External Dimension (WxDxH):
595 x 595 x 1990
mm
Internal Dimension (WxDxH):
505 x 462 x 1742 mm
Packed Dimension (WxDxH):
665 x 715 x 2150 mm
Other
GTIN / EAN:
5708181737429
Temperature Range:
+2 to +10 °C
Shelves No & Type:
5 black sheet metal
Max load on Shelves:
196 kg/m²
Max Ambient:
+30°C, 55% RH
Thermometer:
Yes
EPREL No:
575918
Great value-for-money range Stainless steel cabinet Self-closing door Lock Ventilated cooling Adjustable shelves GN1/1 Strong wheels Digital controller and temperature display Accessory - Pedal for opening doorThe G-line slim upright freezer is designed for busy kitchen environments. It has strong wheels for flexibility and a stainless steel exterior for high durability. It has adjustable shelving and accepts GN1/1 gastronorm pans. A great value-for-money product.Technical specificationsMeasures and Content
Gross / Net Weight:
123 / 110 kg
40ft Container Load :
67 pcs
Gross / Net Volume:
292 / 228 l
Climate Class:
5
Design and Material
Exterior Finish:
SS201
Interior Finish:
SS201
Door No & Type:
1
Door Reversible:
Yes
Shelf Color:
White
Shelf Dimensions:
GN1/1
Lock:
Yes
Interior Light:
LED
Castors:
4 wheels, 2 with brake
Cooling and Functions
Type of Controller:
Electronic
Type of Cooling:
Ventilated
Type of Defrost:
Automatic
Refrigerant Charge:
85 g
Refrigerant:
R290
Power and Consumption
Energy Class:
D
Annual Energy Cons.:
1449 kWh/year
Energy Consumption:
3.97 kWh/24h
EEI:
55.8 %
Input Power:
380 W
Voltage / Frequency:
220-240/50 V/Hz
Noise Level:
42 dB(A)
Dimensions
External Dimension (WxDxH):
484 x 745 x 2100
mm
Internal Dimension (WxDxH):
368 x 580 x 1510 mm
Packed Dimension (WxDxH):
515 x 765 x 2140 mm
Other
GTIN / EAN:
5708181754846
Temperature Range:
-22 to -18 °C
Insulation Density:
38 kg/m³
Shelves No & Type:
3 wire shelves
Max load on Shelves:
13 kg/m²
Thermometer:
Yes
EPREL No:
2368611
Max Ambient:
+40°C, 40% RH
Technical specificationsGreat value-for-money range Stainless steel cabinet Self-closing door Lock Ventilated cooling Adjustable shelves GN1/1 Strong wheels Digital controller and temperature display Accessory - Pedal for opening doorThe G-line slim upright freezer is designed for busy kitchen environments. It has strong wheels for flexibility and a stainless steel exterior for high durability. It has adjustable shelving and accepts GN1/1 gastronorm pans. A great value-for-money product.Technical specificationsMeasures and Content
Gross / Net Weight:
123 / 110 kg
40ft Container Load :
67 pcs
Gross / Net Volume:
292 / 228 l
Climate Class:
5
Design and Material
Exterior Finish:
SS201
Interior Finish:
SS201
Door No & Type:
1
Door Reversible:
Yes
Shelf Color:
White
Shelf Dimensions:
GN1/1
Lock:
Yes
Interior Light:
LED
Castors:
4 wheels, 2 with brake
Cooling and Functions
Type of Controller:
Electronic
Type of Cooling:
Ventilated
Type of Defrost:
Automatic
Refrigerant Charge:
85 g
Refrigerant:
R290
Power and Consumption
Energy Class:
D
Annual Energy Cons.:
1449 kWh/year
Energy Consumption:
3.97 kWh/24h
EEI:
55.8 %
Input Power:
380 W
Voltage / Frequency:
220-240/50 V/Hz
Noise Level:
42 dB(A)
Dimensions
External Dimension (WxDxH):
484 x 745 x 2100
mm
Internal Dimension (WxDxH):
368 x 580 x 1510 mm
Packed Dimension (WxDxH):
515 x 765 x 2140 mm
Other
GTIN / EAN:
5708181754846
Temperature Range:
-22 to -18 °C
Insulation Density:
38 kg/m³
Shelves No & Type:
3 wire shelves
Max load on Shelves:
13 kg/m²
Thermometer:
Yes
EPREL No:
2368611
Max Ambient:
+40°C, 40% RH
Approx. 56% more energy efficient than previous range Double glazed tempered glass Energy saving variable speed compressor Ventilated cooling for fast pull-down and even temperature Easy access electronic thermostat Adjustable shelves LED interior lightThe DB range of backbars comes with 1, 2, or 3 doors with double glazed tempered glass. Choose between sliding doors or hinged doors. The backbar cooler has a black exterior, a stucco aluminium interior, and white plastic-coated wire shelves for easy maintenance. It has ventilated cooling, easily controlled by an electronic thermostat. Ideal for busy bar environments.
The new range of backbars is highly energy efficient and uses in average 56% less energy compared to the previous models from the same range.Technical specificationsMeasures and Content
Gross / Net Weight:
45 / 40 kg
40ft Container Load :
160 pcs
Bottles 330 ml:
70 pcs
Bottles 500 ml PET:
70 pcs
Cans 330 ml:
113 pcs
Cans 500 ml:
96 pcs
Gross / Net Volume:
105 / 92 l
Climate Class:
4
Design and Material
Exterior Finish:
Black RAL9005
Interior Finish:
Stucco aluminium
Door No & Type:
1 hinged glass door
Door Reversible:
Yes
Shelf Color:
White
Shelf Dimensions:
395x350 mm
Feet / Legs:
4 adjustable feet
Lock:
Yes
Interior Light:
LED
Cooling and Functions
Type of Controller:
Electronic
Type of Cooling:
Ventilated
Type of Defrost:
Automatic
Refrigerant Charge:
45 g
Refrigerant:
R600a
Power and Consumption
Energy Class:
A
Annual Energy Cons.:
310 kWh/year
Energy Consumption:
0.85 kWh/24h
EEI:
8 %
Input Power:
95 W
Voltage / Frequency:
220-240/50 V/Hz
Noise Level:
44 dB(A)
Dimensions
External Dimension (WxDxH):
500 x 520 x 870
mm
Internal Dimension (WxDxH):
410 x 418 x 720 mm
Packed Dimension (WxDxH):
585 x 575 x 940 mm
Other
GTIN / EAN:
5708181713980
Total Display Area:
0.29 m²
Temperature Range:
+2 to +10 °C
Shelves No & Type:
2 wire shelves white
Max load on Shelves:
196 kg/m²
Thermometer:
Yes
Display cabinet family:
VC4
Type of refrigeration:
Supermarket cabinet
EPREL No:
1431312
Max Ambient:
+30°C, 55% RH
Technical specificationsApprox. 56% more energy efficient than previous range Double glazed tempered glass Energy saving variable speed compressor Ventilated cooling for fast pull-down and even temperature Easy access electronic thermostat Adjustable shelves LED interior lightThe DB range of backbars comes with 1, 2, or 3 doors with double glazed tempered glass. Choose between sliding doors or hinged doors. The backbar cooler has a black exterior, a stucco aluminium interior, and white plastic-coated wire shelves for easy maintenance. It has ventilated cooling, easily controlled by an electronic thermostat. Ideal for busy bar environments.
The new range of backbars is highly energy efficient and uses in average 56% less energy compared to the previous models from the same range.Technical specificationsMeasures and Content
Gross / Net Weight:
45 / 40 kg
40ft Container Load :
160 pcs
Bottles 330 ml:
70 pcs
Bottles 500 ml PET:
70 pcs
Cans 330 ml:
113 pcs
Cans 500 ml:
96 pcs
Gross / Net Volume:
105 / 92 l
Climate Class:
4
Design and Material
Exterior Finish:
Black RAL9005
Interior Finish:
Stucco aluminium
Door No & Type:
1 hinged glass door
Door Reversible:
Yes
Shelf Color:
White
Shelf Dimensions:
395x350 mm
Feet / Legs:
4 adjustable feet
Lock:
Yes
Interior Light:
LED
Cooling and Functions
Type of Controller:
Electronic
Type of Cooling:
Ventilated
Type of Defrost:
Automatic
Refrigerant Charge:
45 g
Refrigerant:
R600a
Power and Consumption
Energy Class:
A
Annual Energy Cons.:
310 kWh/year
Energy Consumption:
0.85 kWh/24h
EEI:
8 %
Input Power:
95 W
Voltage / Frequency:
220-240/50 V/Hz
Noise Level:
44 dB(A)
Dimensions
External Dimension (WxDxH):
500 x 520 x 870
mm
Internal Dimension (WxDxH):
410 x 418 x 720 mm
Packed Dimension (WxDxH):
585 x 575 x 940 mm
Other
GTIN / EAN:
5708181713980
Total Display Area:
0.29 m²
Temperature Range:
+2 to +10 °C
Shelves No & Type:
2 wire shelves white
Max load on Shelves:
196 kg/m²
Thermometer:
Yes
Display cabinet family:
VC4
Type of refrigeration:
Supermarket cabinet
EPREL No:
1431312
Max Ambient:
+30°C, 55% RH
Tefcold Cold Room Panels 80 mm - CR 240x270x220 WDOur cold room panels are designed to provide a reliable and efficient cooling solution for commercial kitchens. With their durable construction and easy-to-use interlocking system, these panels make it simple to create a customized storage space.Key features include:
80 mm panel insulation for maximum energy efficiency
Easy interlocking system for quick assembly
Modular design allows for flexible configuration and easy access to products
Technical specifications850 mm wide door Only panels - without cooling unit Interlocking connection system 80 mm panel insulation Easy access to products Easy assembly Door position is fixed Anti-slip floor in SS304 stainless steel Shelves available as accessory Ramp available as accessory for easy accessOur range of cold room panels are available with 80 mm or 120 mm of effective polyurethane insulation and comes in various sizes. They have an easy interlocking system which makes assembly quick and hassle-free. The modular panels are interchangeable, so you can move the position of the door and adapt the room to fit your needs. Monoblock refrigeration units can be ordered separately.Technical specificationsMeasures and Content
Gross / Net Weight:
570 / 550 kg
40ft Container Load :
8 pcs
Internal Volume:
11.6 m³
Design and Material
Exterior Finish:
White
Interior Finish:
White
Door No & Type:
1 hinged solid door
Door Reversible:
Yes
Lock:
Yes
Dimensions
External Dimension (WxDxH):
2400 x 2700 x 2200
mm
Internal Dimension (WxDxH):
2240 x 2540 x 2040 mm
Packed Dimension (WxDxH):
2470 x 1860 x 1060 mm
Other
GTIN / EAN:
5708181733933
Insulation Density:
42 kg/m³
Wall Thickness:
80 mm
Max Load on Floor:
1500 kg/m²
Suitable for both 120 l and 240 l waste bins (not included) Stainless steel for easy cleaning and maintenance Ramp for easy waste bin handling Electronic thermostat Automatic defrost Ventilated coolingThe WBC range of waste bin coolers is suitable for both 120 l and 240 l bins (not included). It is available in sizes for 1 or 2 bins. The waste is kept at temperatures fit for fresh produce and thus reduces the degradation of organic waste. It comes complete with a top lid for easy disposal and a ramp for easy handling of the waste bin. A hygienic solution for businesses such as supermarkets, professional kitchens and veterinarians.Technical specificationsMeasures and Content
Gross / Net Weight:
150 / 140 kg
40ft Container Load :
21 pcs
Gross / Net Volume:
540 / 120 l
Design and Material
Exterior Finish:
SS304
Interior Finish:
SS304
Door No & Type:
1 hinged solid door
Cooling and Functions
Type of Controller:
Electronic
Type of Cooling:
Ventilated
Type of Defrost:
Automatic, electric
Refrigerant:
R290
Refrigerant Charge:
50 g
Power and Consumption
Energy Consumption:
3.12 kWh/24h
Annual Energy Cons.:
1139 kWh/year
Input Power:
1250 W
Voltage / Frequency:
220-240/50 V/Hz
Noise Level:
60 dB(A)
Dimensions
External Dimension (WxDxH):
1090 x 985 x 1280
mm
Internal Dimension (WxDxH):
645 x 760 x 1100 mm
Packed Dimension (WxDxH):
1180 x 1080 x 1450 mm
Other
GTIN / EAN:
5708181713584
Temperature Range:
-2 to +8 °C
Thermometer:
Yes
Lid No & Type:
1 hinged solid lid
Technical specificationsSuitable for both 120 l and 240 l waste bins (not included) Stainless steel for easy cleaning and maintenance Ramp for easy waste bin handling Electronic thermostat Automatic defrost Ventilated coolingThe WBC range of waste bin coolers is suitable for both 120 l and 240 l bins (not included). It is available in sizes for 1 or 2 bins. The waste is kept at temperatures fit for fresh produce and thus reduces the degradation of organic waste. It comes complete with a top lid for easy disposal and a ramp for easy handling of the waste bin. A hygienic solution for businesses such as supermarkets, professional kitchens and veterinarians.Technical specificationsMeasures and Content
Gross / Net Weight:
150 / 140 kg
40ft Container Load :
21 pcs
Gross / Net Volume:
540 / 120 l
Design and Material
Exterior Finish:
SS304
Interior Finish:
SS304
Door No & Type:
1 hinged solid door
Cooling and Functions
Type of Controller:
Electronic
Type of Cooling:
Ventilated
Type of Defrost:
Automatic, electric
Refrigerant:
R290
Refrigerant Charge:
50 g
Power and Consumption
Energy Consumption:
3.12 kWh/24h
Annual Energy Cons.:
1139 kWh/year
Input Power:
1250 W
Voltage / Frequency:
220-240/50 V/Hz
Noise Level:
60 dB(A)
Dimensions
External Dimension (WxDxH):
1090 x 985 x 1280
mm
Internal Dimension (WxDxH):
645 x 760 x 1100 mm
Packed Dimension (WxDxH):
1180 x 1080 x 1450 mm
Other
GTIN / EAN:
5708181713584
Temperature Range:
-2 to +8 °C
Thermometer:
Yes
Lid No & Type:
1 hinged solid lid
