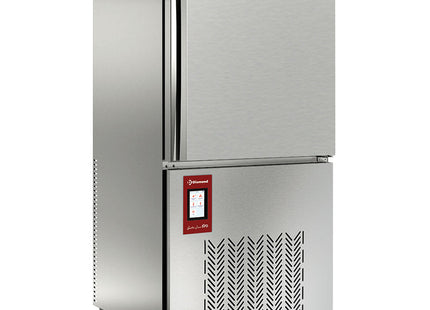

Blast freezer, 10x GN 1/1 - 600x400 (36-25 kg) TOUCH SCREEN

Descriptif

  • Capacity: 10x GN 1/1 or 10x EN 600x400 mm (1x GN 1/1 grid available).
  • Output per cycle: 36kg (+70°C +3°C) or 25kg (+70°C -18°C).
  • Refrigerant R290
  • Core probe as standard.
  • Anti-tilt stainless steel wire structure (removable), plate spacing 65mm.
  • Reversible door (on request: left hinge kit PK-CIG-EV) with integrated handle (not protruding).
  • Hinges (right) with automatic return (90° locking).
  • 60mm thick insulation.
  • 4 adjustable stainless steel feet.

  • TOUCH SCREEN controls with 4,3’ high-definition colour touch screen, allowing the user to customise all the main functions.
  • Choice of 4 cycles: ‘Soft Chill’ or ‘Soft Freeze’ for delicate products, ‘Hard-Chill’ or ‘Hard-Freeze’ for large items, timer control with buzzer at end of cycle or core probe control, also with hold function at end of cycle and visual alarm.
  • One-piece structure in stainless steel (food-grade), inside and AISI 304 outside.
  • Deep-drawn inner base, rounded corners and edges (no rough edges), with drain plug (for high maintenance).
  • Door with magnetic ‘pressure’ seal (easy replacement, no tools required), back door fitted with heating element to prevent frost forming (‘Freeze’ function).
  • Door microswitch to stop the evaporator fan when the door is opened.
  • Class 4 compressor unit, built into the cabinet (accessible from the front), ventilated condenser.
  • Ventilated evaporator (oversized), treated against salt and food acids, completely concealed (not visible), IP45 fan motor.
  • Manual or automatic defrost (start of cycle), with self-evaporating condensate.
  • Injected polyurethane insulation (CFC-free).
  • Unit built in compliance with current CE standards.

- TOUCH SCREEN controls, highly intuitive navigation, 4.3" display, standard cycle for fast cooling or freezing, each cycle 100% customizable. Control by time or temperature. Specific cycles such as continuous cycle, fish, ice cream ICE SOFT and ICE HARD. Display available in 6 languages: Italian, English, French, German, Spanish, Dutch.

ADVANTAGE :

  • Food safety in the cold chain is based on one basic principle: the change in core temperature from +70°C to +3°C in 90 minutes (UK standard) or from +65°C to +10°C in 110 minutes (NF standard) and from +70°C to -18°C in 240 minutes (UK standard) or from +65°C to -18°C in 270 minutes (NF standard), Diamond chiller units guarantee compliance with all these requirements. The unique design of the cabinet, coupled with the fan, guarantees temperature uniformity and prevents the food from drying out and forming frost on the surface.

Technical Specification

  • mm (W x D x H) : 800 x 825 x 1620 - T° : +70°-18° +70°+3° - kW (elec) : 1.48
  • Category: Diamond
  • Range: Refrigeration
  • Subrange: Freezer cells rap. cool.
  • Family: Freezing & Réfroidissement
  • Subfamily: 10x GN 1/1 - 600x400
  • Line: GASTRO LINE EVO
  • Length: 800 mm
  • Width: 825 mm
  • Height: 1620 mm
  • Electric Power: 1.48 kW
  • Weight: 140 kg
  • Restock Info: Contact
  • Supplier Delivery Delay: 42
  • Availability: 6
