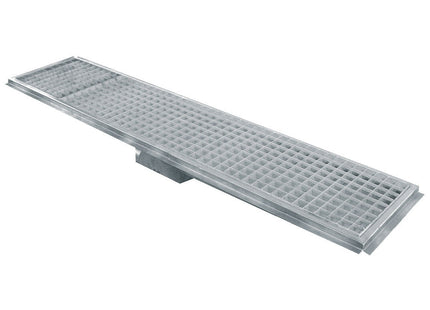

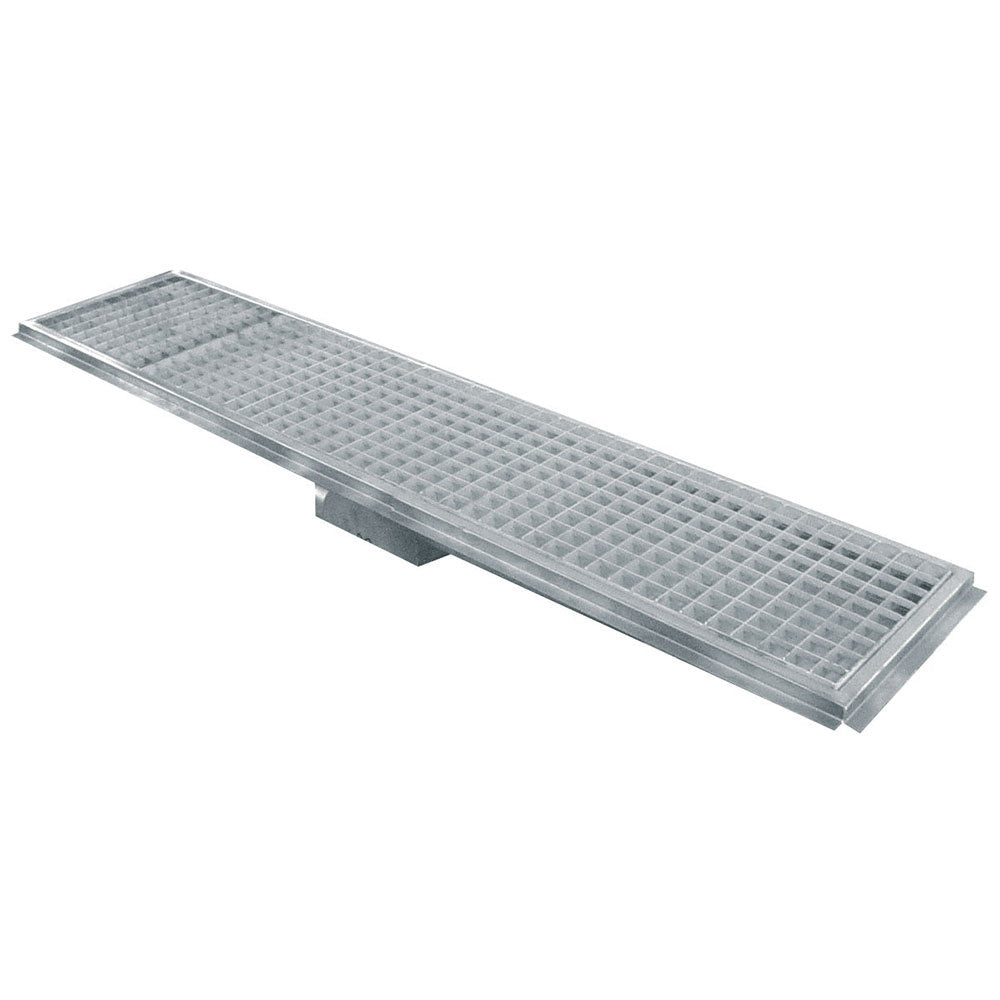

Stainless steel floor drain channel 600x300, lateral discharge

Description

  • Material: Stainless steel AISI304 (1.4301), sheet thickness 2mm.
  • Hygienic round body, diameter 110mm; the round body is stamped without joints and features rounded corners at the bottom plate level.
  • The upper peripheral edge is reinforced with a solid stainless steel bar to withstand mechanical and thermal loads according to EHEDG.
  • The drain body and siphon are designed to prevent stagnant water in the drain body, with water retained only in the siphon according to EHEDG.
  • Floor siphon flow rate: 1 l/s, with strainer.
  • Horizontal outlet DN75, grating in bar grid, class L15kN according to EN1254.
  • Pickled and passivated finish by immersion.

Technical Specification

  • mm (W x D x H) : 600 x 300 x 195
  • Category: Diamond
  • Range: S.S. Furniture - Hygiene
  • Subrange: Cesspit
  • Family: Soudés
  • Subfamily: STAINLESS STEEL
  • Length: 600 mm
  • Width: 300 mm
  • Height: 195 mm
  • Weight: 13 kg
  • Restock Info: Contact
  • Supplier Delivery Delay: 14
  • Availability: 1
Product form

Stainless steel floor drain channel 600x300, lateral discharge

1 in stock Fast delivery

Material: Stainless steel AISI304 (1.4301), sheet thickness 2mm. Hygienic round body, diameter 110mm; the round body is stamped without joints... Read more

5.062,00 kr 4.208,00 kr

Maxigastro - only for companies with VAT registration

To purchase from Maxigastro, you must have a VAT-registered business. We do not sell to private consumers.
You will be asked for your VAT registration number before payment.

    • Guaranteed secure & safe checkout.

      shop pay
    • Fast shipping for orders on stock
    • Directly from the manufacturer to you

    Description

    • Material: Stainless steel AISI304 (1.4301), sheet thickness 2mm.
    • Hygienic round body, diameter 110mm; the round body is stamped without joints and features rounded corners at the bottom plate level.
    • The upper peripheral edge is reinforced with a solid stainless steel bar to withstand mechanical and thermal loads according to EHEDG.
    • The drain body and siphon are designed to prevent stagnant water in the drain body, with water retained only in the siphon according to EHEDG.
    • Floor siphon flow rate: 1 l/s, with strainer.
    • Horizontal outlet DN75, grating in bar grid, class L15kN according to EN1254.
    • Pickled and passivated finish by immersion.

    Technical Specification

    • mm (W x D x H) : 600 x 300 x 195
    • Category: Diamond
    • Range: S.S. Furniture - Hygiene
    • Subrange: Cesspit
    • Family: Soudés
    • Subfamily: STAINLESS STEEL
    • Length: 600 mm
    • Width: 300 mm
    • Height: 195 mm
    • Weight: 13 kg
    • Restock Info: Contact
    • Supplier Delivery Delay: 14
    • Availability: 1
