Refrigerated group " Overlapping " T° -15°-25°

Description

  • Unit width 420 mm, compact design

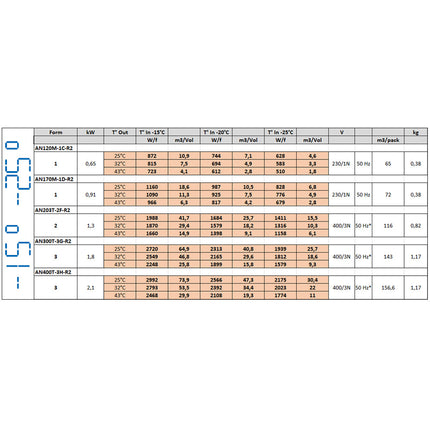

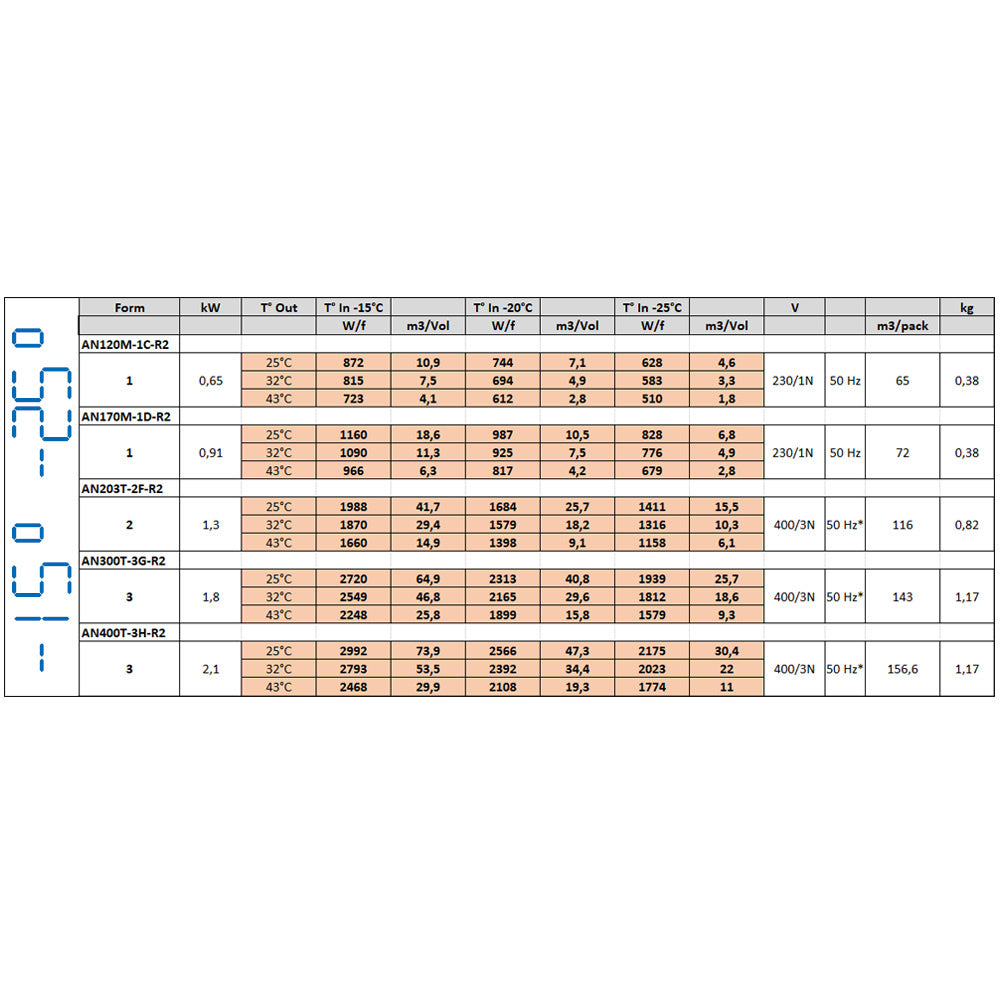

  • Cooling capacity delivered: 925 (W/f) for chamber volume 7,5m³ / 7500 Lit (internal T° -20°C & external T° +32°C)
  • Refrigerant expansion by thermostatic valve
  • Supplied with a cable for door heater connection



  • "Overlapping" refrigeration units.
  • Unit certified in climatic class 5 (40°C Temperature - 40% Humidity).
  • All units are supplied as standard with a high pressure switch and KVL valve.
  • Automatic hot gas defrost with self-evaporation and overflow.
  • The evaporator drain pipe is equipped with a resistor to prevent ice formation.
  • Refrigerant gas R290.
  • Supplied with cables and micro-switch for door and light (Porthole lights supplied as standard).
  • Microprocessor control with touch-sensitive keys.

INFO:
Warning: by default, the ideal operating ambient temperature must not be below 5°C.
If placed outdoors, the unit must be protected from weather conditions.

PLUS:

  • Low-profile 420mm long units. Can be placed on any of our chambers (minimum 600mm panel).
  • All units are supplied as standard with a high-pressure switch. All units are fitted with a thermostatic valve.

Technical Specification

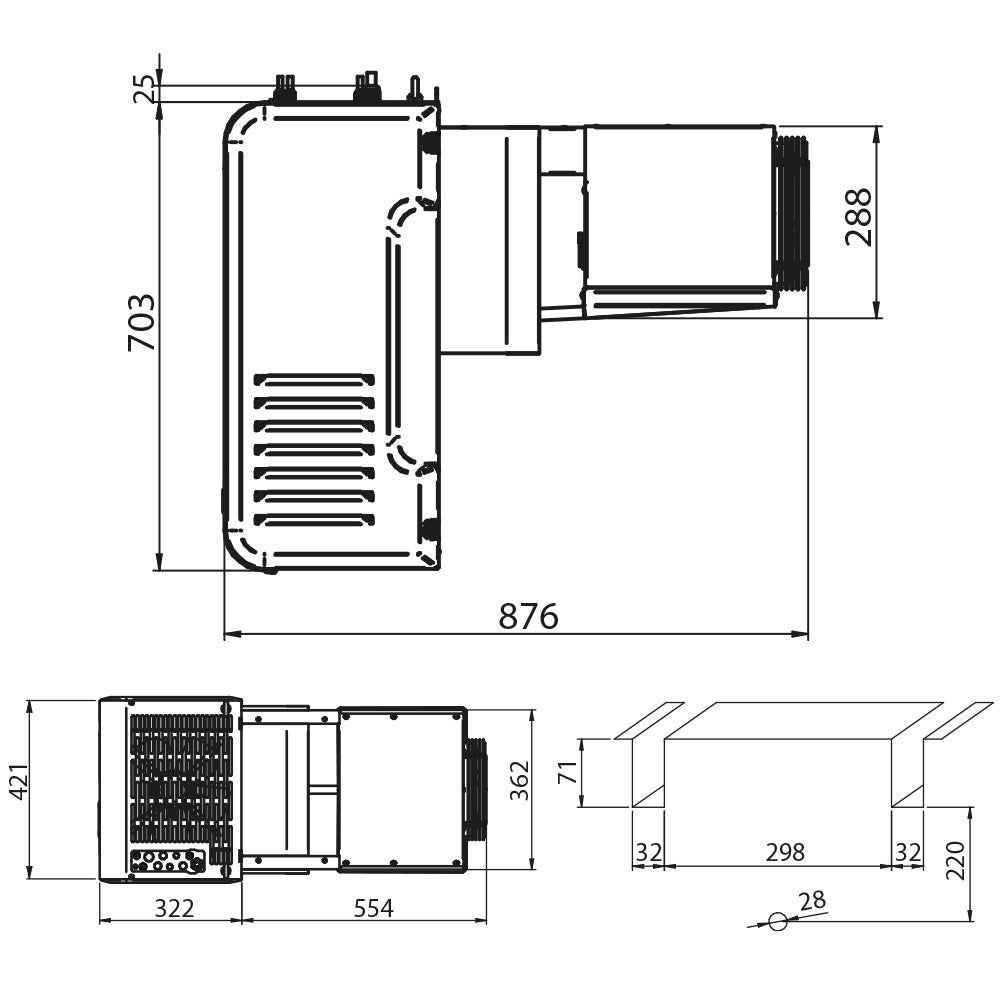

  • mm (W x D x H) : 420 x 320/876 x 728 - T° : -25°-15° - kW (elec) : 0.91
  • Category: Diamond
  • Range: Refrigeration
  • Subrange: Cold & freezing rooms
  • Family: Groupes to chevauchement
  • Subfamily: T°-18° -22°
  • Line: MONOBLOCK
  • Length: 420 mm
  • Width: 320/876 mm
  • Height: 728 mm
  • Electric Power: 0.91 kW
  • Weight: 72 kg
  • Restock Info: Contact
  • Supplier Delivery Delay: 42
  • Availability: 10
