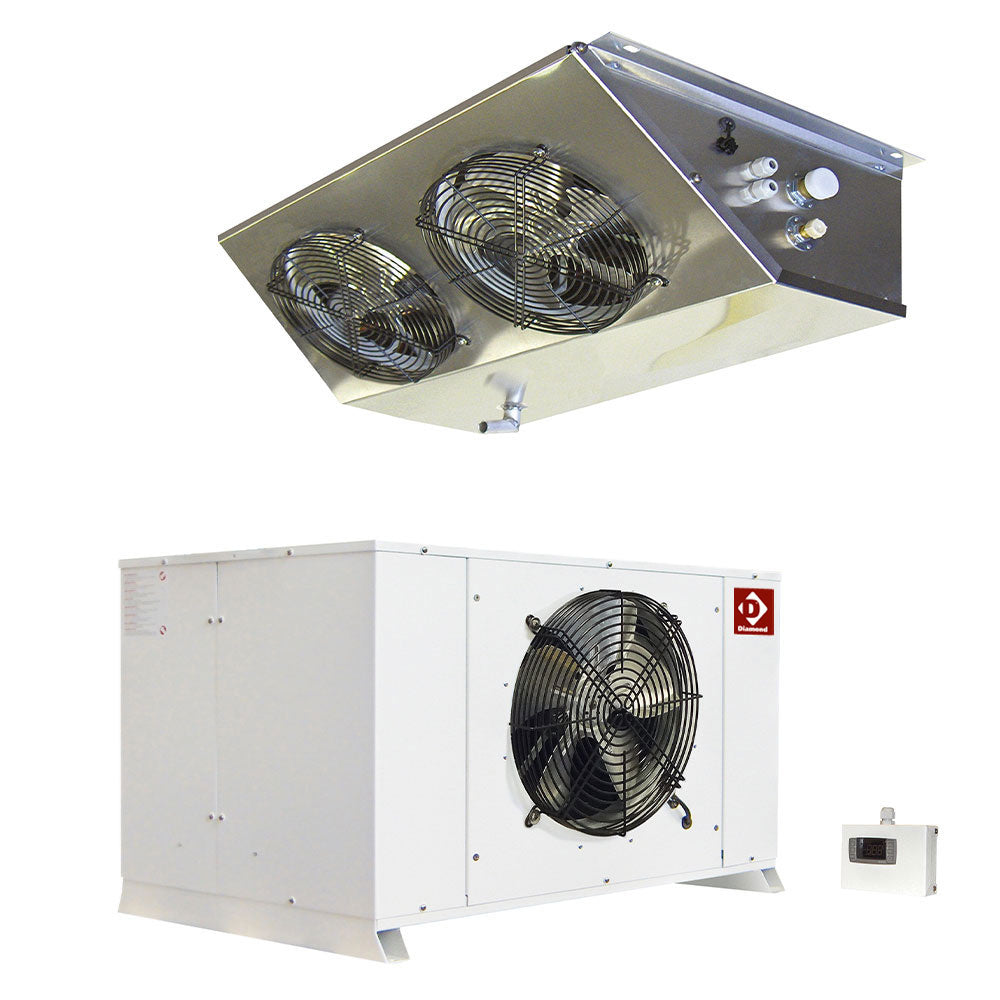

Refrigerated unit "Bi-block"

Description

  • Average capacity 10,94 m³ (inner T° -20° C & outer T° +32° C)
  • Equipped with a high pressure switch (fixed calibration) (C-PMAX).
  • The low temperature (HN) units are supplied with a cable for connecting the door resistor.
  • By design, the condensing unit is ideal for outdoor installation and can be placed anywhere, floor, ceiling, wall,... Hoses (pre-loaded) and cables are provided for connection within a radius of 5 meters (optional 10 meters).
  • All units are equipped with a low pressure switch (fixed calibration), as well as cables for a door and light microswitch (not supplied).
  • Separate "digital" control panel, connected to the unit by a 5 m cable, function control by microprocessor.
  • Automatic defrosting, water flow located below the evaporator. The evaporator drain pipe is equipped with a resistor to prevent ice formation.
  • Group certified in climate class 5 (40°C Temperature - 40% Humidity).
  • Refrigerant gas R452a.

INFO:
Attention: as standard, the ideal ambient operating temperature must not be lower than 10°C, otherwise, provide: a compressor preheating (H-PR), a pressure switch for the condenser fan (H-PVC) and a heated electrical panel (H-TEC).

Technical Specification

  • mm (W x D x H) : 746&915 x 490&475 x 486&265 - T° : -18° -22° - kW (elec) : 1.78 - Voltage : 400/3N 50Hz
  • Category: Diamond
  • Range: Refrigeration
  • Subrange: Cold & freezing rooms
  • Family: Groupes with 2 unités séparés
  • Subfamily: T°-18° -22°
  • Line: BI-BLOCK
  • Length: 746&915 mm
  • Width: 490&475 mm
  • Height: 486&265 mm
  • Electric Power: 1.78 kW
  • Voltage: 400/3N 50Hz
  • Weight: 99 kg
  • Restock Info: /
  • Supplier Delivery Delay: 60
  • Availability: 1
