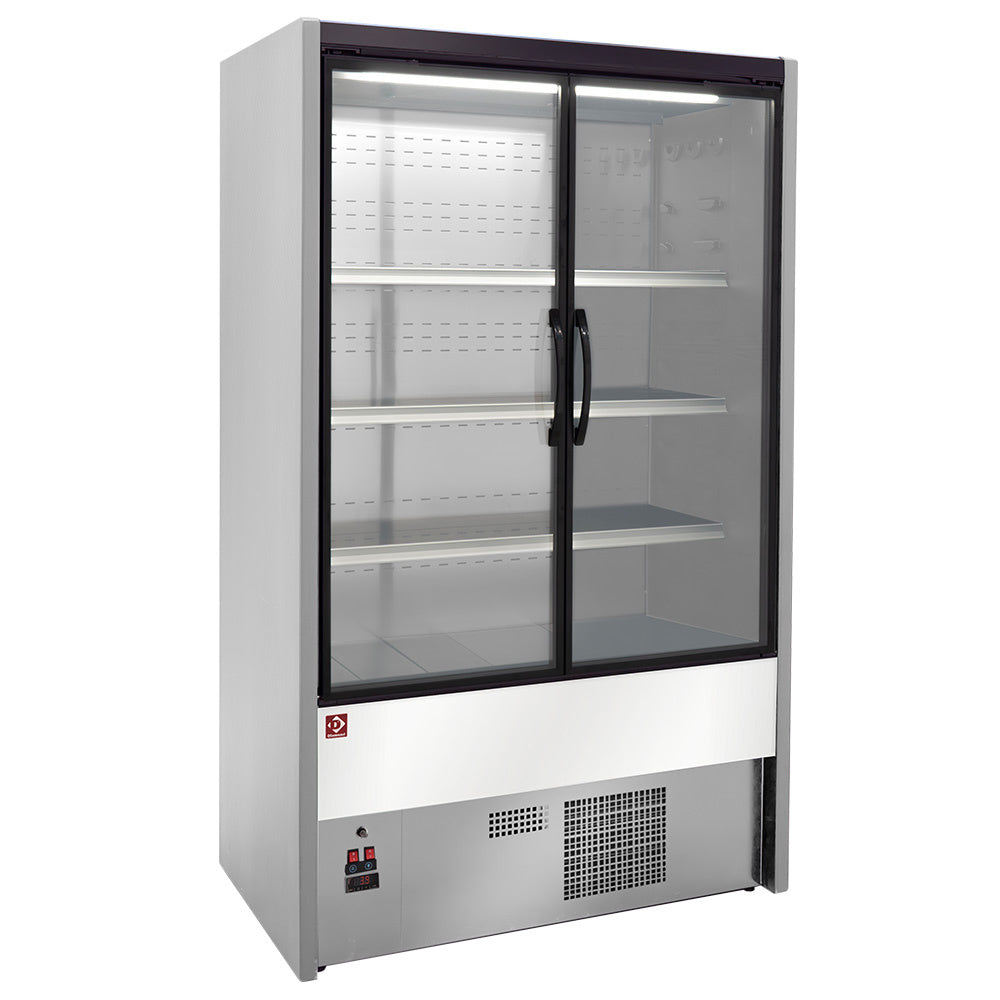

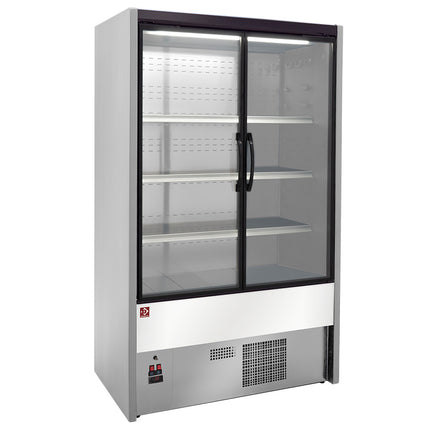

The Diamond Ventilated Refrigerated Wall Element with Swing Doors is a high-performance refrigeration solution designed for commercial kitchens. Constructed from durable materials, including plastic-coated sheet metal and ABS sides, this unit features a perforated stainless steel tank and grid for optimal cooling efficiency. The hinged doors provide easy access to the interior, while the LED top lighting ensures visibility of stored products. Three adjustable stainless steel display shelves (340mm) are included, complete with 'price-holder' mouldings for efficient product presentation. An electronic regulator with digital display allows for precise temperature control, and a ventilated evaporator ensures forced air circulation. Double self-evaporation of condensate, hot gas + electric resistance, provides reliable operation. Built-in compressor unit, climate class 3 (T°+25°C and RH 60%), ensures efficient cooling performance.
Technical specifications
- 2 built-in compressor units.
- Refrigerant gas R290.
- Energy class: B.
- Self-service sale.
- Exterior in plastic-coated sheet metal, sides in ABS.
- Perforated stainless steel tank and grid.
- Hinged doors.
- LED top lighting.
- 3 adjustable stainless steel display shelves (340mm), fitted with ‘price-holder’ mouldings.
- Electronic regulator (digital display).
- Ventilated evaporator (forced air).
- Double self-evaporation of condensate, hot gas + electric resistance.
- Built-in compressor unit, climate class 3 (T°+25°C and RH 60%).
Technical Specification
- mm (W x D x H) : 1800 x 710 x 1995 - T° : +0°+2° - kW (elec) : 1.6
- Category: Diamond
- Range: Refrigeration
- Subfamily: 1800 / GLASS DOORS
- Line: DALLAS LINE
- Length: 1800 mm
- Width: 710 mm
- Height: 1995 mm
- Electric Power: 1.6 kW
- Weight: 236 kg
