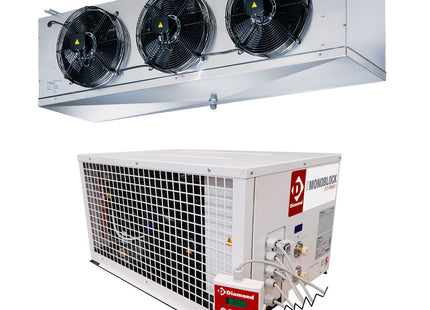

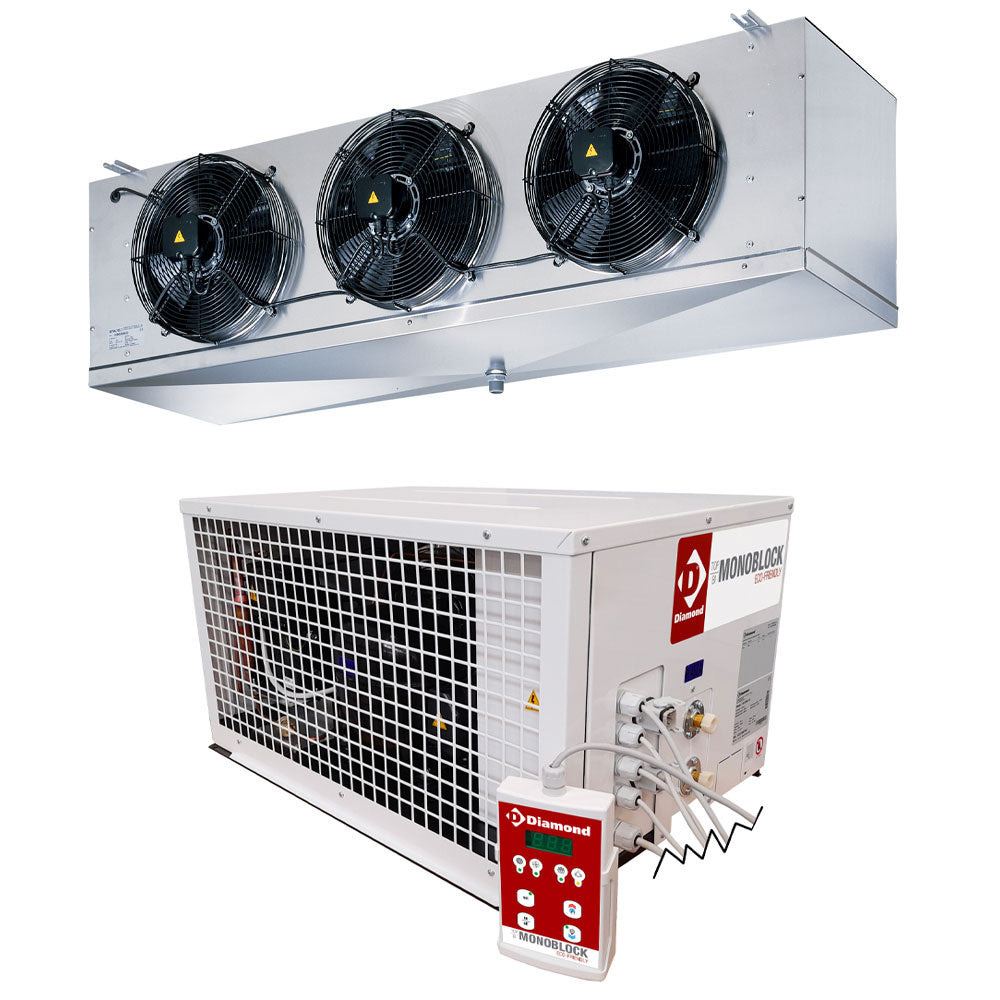

Refrigerated unit "By-block" T° -5°+5°

Description

  • Cooling capacity rendered 3490 (W/f) for chamber volume 34,3 m³/34 300L (internal T° -0°C and external T°+32°C).
  • Refrigerant expansion by thermostatic valve.
  • Also equipped with a high pressure switch (fixed calibration) (C-PMAX-R).



  • Bi-block refrigeration units.
  • Thanks to its design, the condensing unit is ideal for outdoor installation and can be placed anywhere, on the floor, ceiling, wall, etc.
  • Supplied as standard with 2 wall brackets.
  • Hoses (pre-loaded) and cables are supplied for connection within a 5m radius (10m optional).
  • All units are supplied as standard with a high-pressure switch and a KVL valve, as well as cables for the door and light microswitches.
  • Separate touch-sensitive microprocessor control panel connected to the unit by a 10m cable.
  • Automatic defrosting by electric resistance, water drain located below the evaporator. The evaporator drain is fitted with a resistor to prevent ice forming.
  • Unit certified for climate class 5 (40°C temperature - 40% humidity).
  • R452a refrigerant gas.
  • Window light supplied as standard with microswitch for door.

INFO:
Warning: as standard, the ideal ambient operating temperature must not be lower than 10°C. If this is not the case, then, a compressor preheating (H-PR-R), a pressure switch for the condenser fan (H-PVC-R) and a heated electrical panel (H-TEC-R) must be provided. In this case, the operating temperature cannot be lower than -5°C.

PLUS:

  • Easily removable panels for easy access when servicing.
  • Defrosting by electric resistance.
  • All units are supplied with a high-pressure switch as standard. Negative units are fitted with a thermostatic valve.

Technical Specification

  • mm (W x D x H) : 930&1314 x 680&402 x 460&350 - T° : -5°+5° - kW (elec) : 1.65 - Voltage : 400/3N 50Hz
  • Category: Diamond
  • Range: Refrigeration
  • Subrange: Cold & freezing rooms
  • Family: Groupes with 2 unités séparés
  • Subfamily: T°-5° +5°
  • Line: BI-BLOCK
  • Length: 930&1314 mm
  • Width: 680&402 mm
  • Height: 460&350 mm
  • Electric Power: 1.65 kW
  • Voltage: 400/3N 50Hz
  • Weight: 131 kg
  • Restock Info: Contact
  • Supplier Delivery Delay: 42
  • Availability: 2
