Extra shelf space
Stainless steel and gloss black glass frame
Double glazed glass
Anti mist front glass
LED light under each shelf
Rear glass sliding doors
Ventilated cooling

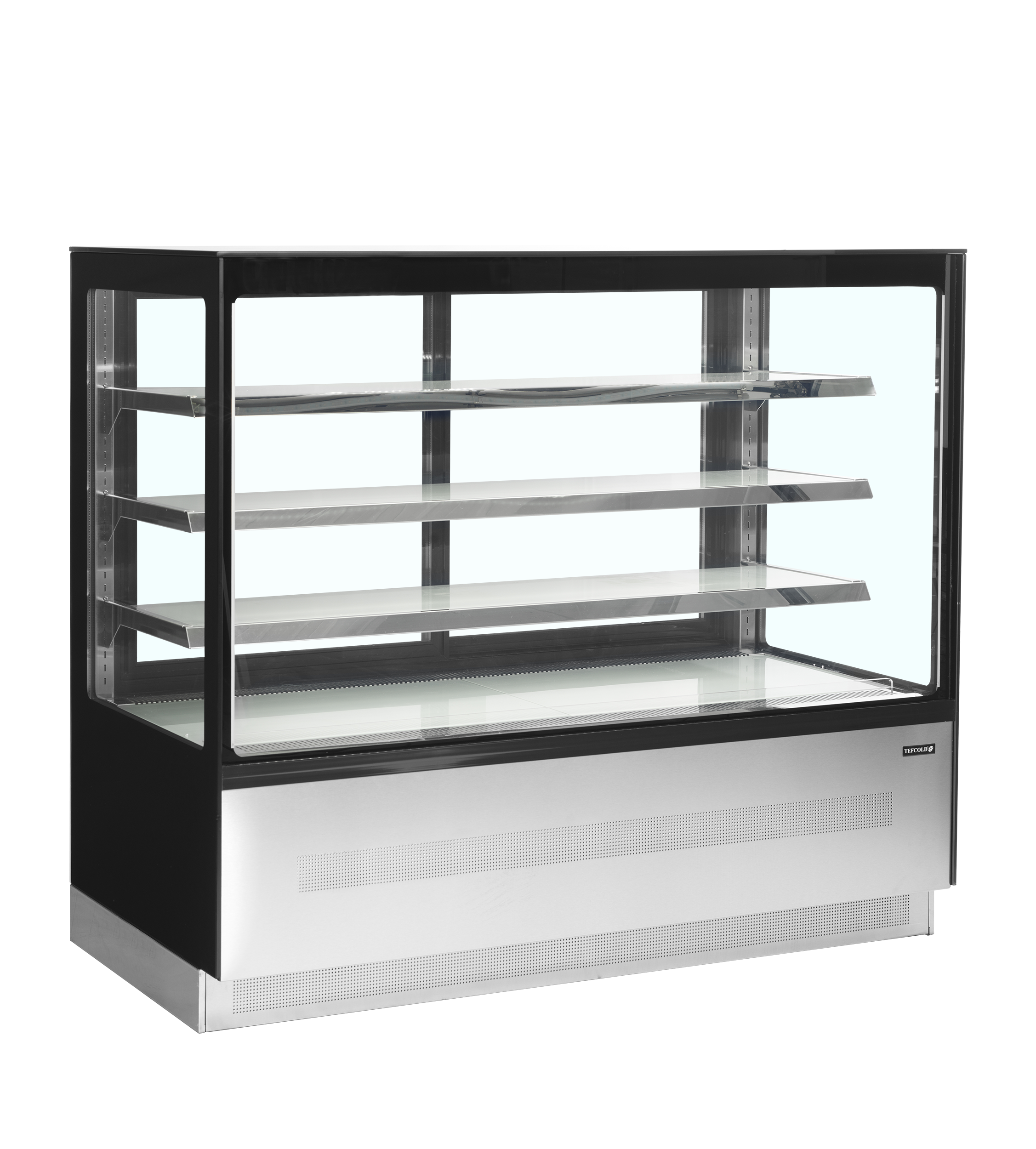

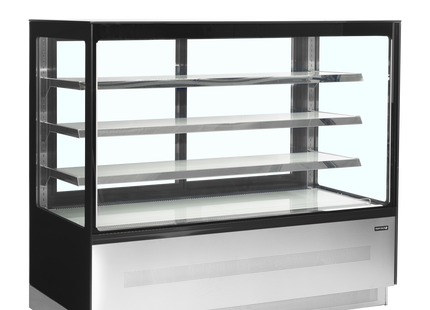

Flat top/glass topThe LPD-3F range of refrigerated display counters has a flat double glazed glass front/top and comes with an extra shelf. It is a premium design made with high quality materials and is available in several sizes. It has great features such as 3 frosted glass shelves with LED lighting underneath, an anti-mist front, and an efficient ventilated cooling system. Sliding doors provide easy access to the content.
Technical specifications
Measures and Content
-
Gross / Net Weight:
336.5 / 267 kg
-
40ft Container Load :
15 pcs
-
Gross / Net Volume:
680 / 400 l
-
Climate Class:
3
Design and Material
-
Exterior Finish:
Stainless steel / Glass
-
Interior Finish:
Stainless steel / Glass
-
Door No & Type:
2 sliding glass doors
-
Shelf Dimensions:
135x33 / 135x33 / 135x33 / 135x44
-
Feet / Legs:
4 adjustable feet
-
Interior Light:
LED
-
Castors:
4 castors
Cooling and Functions
-
Type of Controller:
Electronic
-
Type of Defrost:
Automatic
-
Refrigerant:
R290
-
Refrigerant Charge:
140 g
Power and Consumption
-
Input Power:
830 W
-
Voltage / Frequency:
220-240/50 V/Hz
-
Noise Level:
70 dB(A)
-
Energy Class:
D
-
Energy Consumption:
16.35 kWh/24h
-
Annual Energy Cons.:
5968 kWh/year
-
EEI:
40 %
Dimensions
-
External Dimension (WxDxH):
1504 x 742 x 1350
mm
-
Internal Dimension (WxDxH):
1400 x 600 x 808 mm
-
Packed Dimension (WxDxH):
1585 x 825 x 1480 mm
Other
-
GTIN / EAN:
5708181212728
-
Temperature Range:
0 to +8 °C
-
Shelves No & Type:
3 glass shelves + base
-
Max load on Shelves:
33.62 kg/m²
-
Total Display Area:
2.7 m²
-
Thermometer:
Yes
-
EPREL No:
494639
