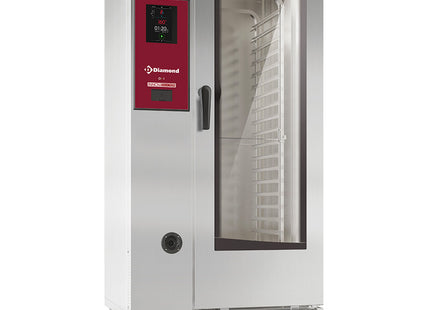

Electric oven "TOUCH" direct steam and convection, 20x GN 1/1+Cleaning

Description

  • Oven "LENGTHWISE", plates GN 1/3, 1/2, 2/3 and 1/1.
  • Load capacity 100kg.
  • 1 transfer trolley and 1 removable loader less than 65mm "anti-tipping".
  • Core temperature probe.
  • Trolley and loader 600x400 EURONORM (on request ref: AC/2P2...).
  • Bottom closing plate integrated in the door.
  • Adjustable stainless steel feet.
  • NB: delivered without grids and without GN plates.



  • Inner and outer construction in stainless steel AISI 304, thermal insulation in ceramic fiber, control panel with stainless steel filter, preventing soiling of the components (ventilated panel), stainless steel feet. Cooking chamber: fully welded, completely watertight, rounded corners and edges without any roughness. Sealing gasket fixed on the front of the cooking chamber. Double-drawn bottom that separates condensation from the grease towards the drain. Standard steam condenser reducing the temperature of the condensate at the drain and limiting the steam outlet when the door is opened. Easily removable platinum door structure. Easily removable heat diffusers. Large motorized door allowing all types of cooking.
  • Double-glazed door: ergonomic and athermal handle, automatic closing with safety device to prevent accidental opening, condensate recovery unit integrated in the door, interior window mounted on hinges for easy cleaning and perfect hygiene. Air circulation between the glass panels guarantees better thermal insulation. Microswitch to stop the fan when opening. Side LED lighting for a global view of the enclosure. Electrical heating: by circular stainless steel heating elements behind the fan baffles, steam by nebulizer. 7" "TOUCH SCREEN" control panel with front access, quick and easy after-sales service, IPx5 protection class (against water jets from the lance).

Optional: Communication module for oven & "TOUCH" cell (see: AC/CMAF-X).

PLUS Version Ct :

  • Direct injection steam (90% saturation).
  • "TOUCH SCREEN" controls, 7" touch screen and high definition color, allowing the user to customize all the main functions of the oven.
  • Favourites management on the home screen.
  • Audible and visual alert for program end.
  • 2 baking modes (programmed, manual).
  • 11 levels of humidification.
  • Memory (pre-programmable) for 1000 recipes, baking in 16 different phases (choice of 16 different types of successive baking).
  • USB port for storage and transfer of various cooking programs (HACCP data management).
  • 7 speed controls.
  • Core probe (1 "sensor")
  • Automatic pre-heating and rapid cooling of the cooking chamber (CCRR).
  • "AUTO-CLEANING" integrated automatic cleaning device (CCNA), 4 different cycles to choose from, " ECONOMIZER " function for saving water and detergents.

Optional: Communication module for oven & "TOUCH" cell (see: AC/CMAF-X).

ADVANTAGE - TYPE of COOKING :

  • Convection of 25° to 300°C.
  • Steam 100°C.
  • Mixed convection/steam from 25° to 250°C.
  • Regeneration and maintaining temperature from 25° to 250°C.

Technical Specification

  • mm (W x D x H) : 911 x 864 x 1794 - kW (elec) : 37.7 - Voltage : 400/3N 50-60Hz
  • Category: Diamond
  • Range: Cook & Chill
  • Subrange: Direct & Convect. steam ovens
  • Family: TOUCH SCREEN
  • Subfamily: 20x GN 1/1 - ELECTRIC
  • Line: Ct SERIES
  • Length: 911 mm
  • Width: 864 mm
  • Height: 1794 mm
  • Electric Power: 37.7 kW
  • Voltage: 400/3N 50-60Hz
  • Weight: 282 kg
  • Restock Info: /
  • Supplier Delivery Delay: 42
  • Availability: 0

Read more

Product form

Electric oven "TOUCH" direct steam and convection, 20x GN 1/1+Cleaning

Out of stock, 1-3 weeks

Oven "LENGTHWISE", plates GN 1/3, 1/2, 2/3 and 1/1. Load capacity 100kg. 1 transfer trolley and 1 removable loader less... Read more

327.838,00 kr
