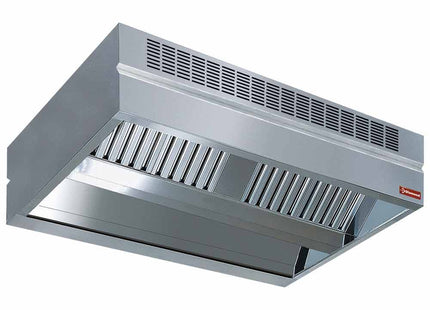

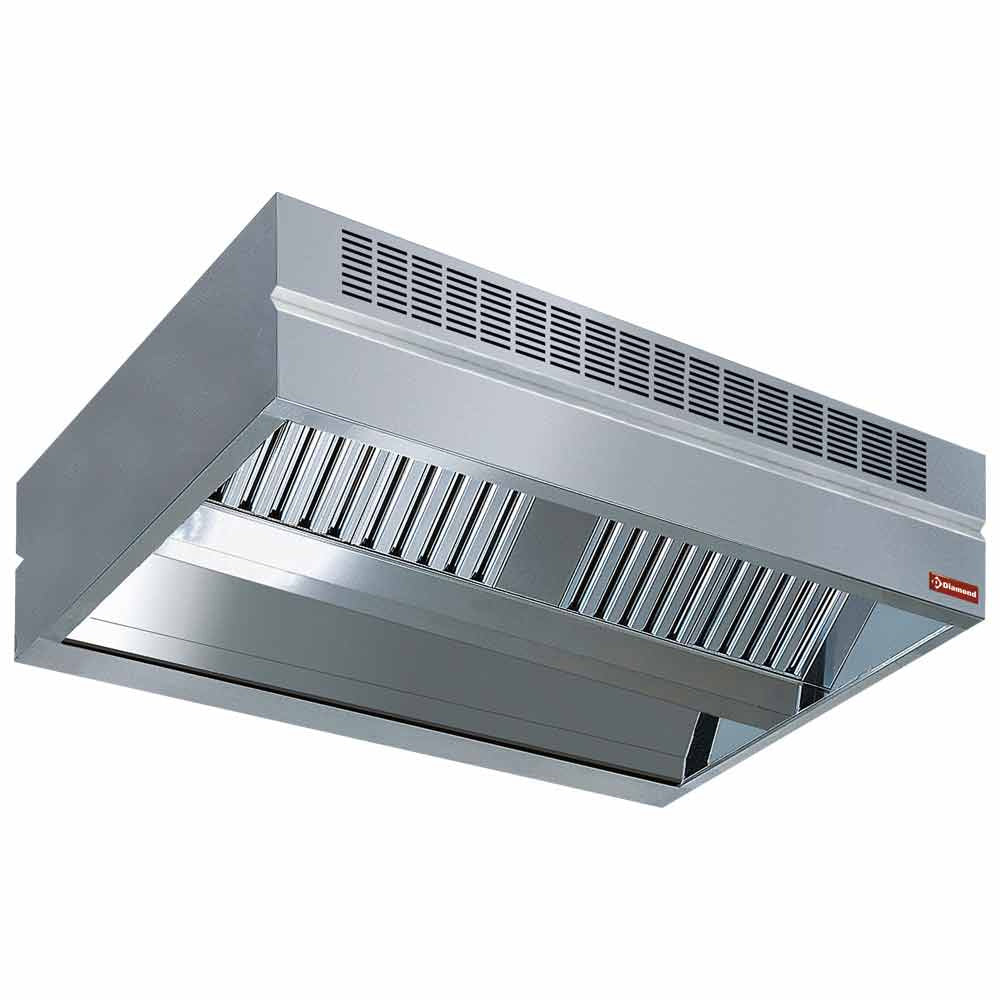

The Diamond Central Cooker Hood with Air Compensation 'AMBIANCE' offers a comprehensive ventilation solution for commercial kitchens. Featuring a stainless steel construction, this hood boasts a labyrinth filter system for effective grease and particle removal. The isolated room for fresh air supply prevents condensation, while the regulator ensures precise control over airflow. Built-in LED lighting provides excellent illumination, meeting IP65 standards for durability. Ideal for restaurants, hotels, and professional kitchens seeking to maintain a clean and healthy environment.
Technical specifications

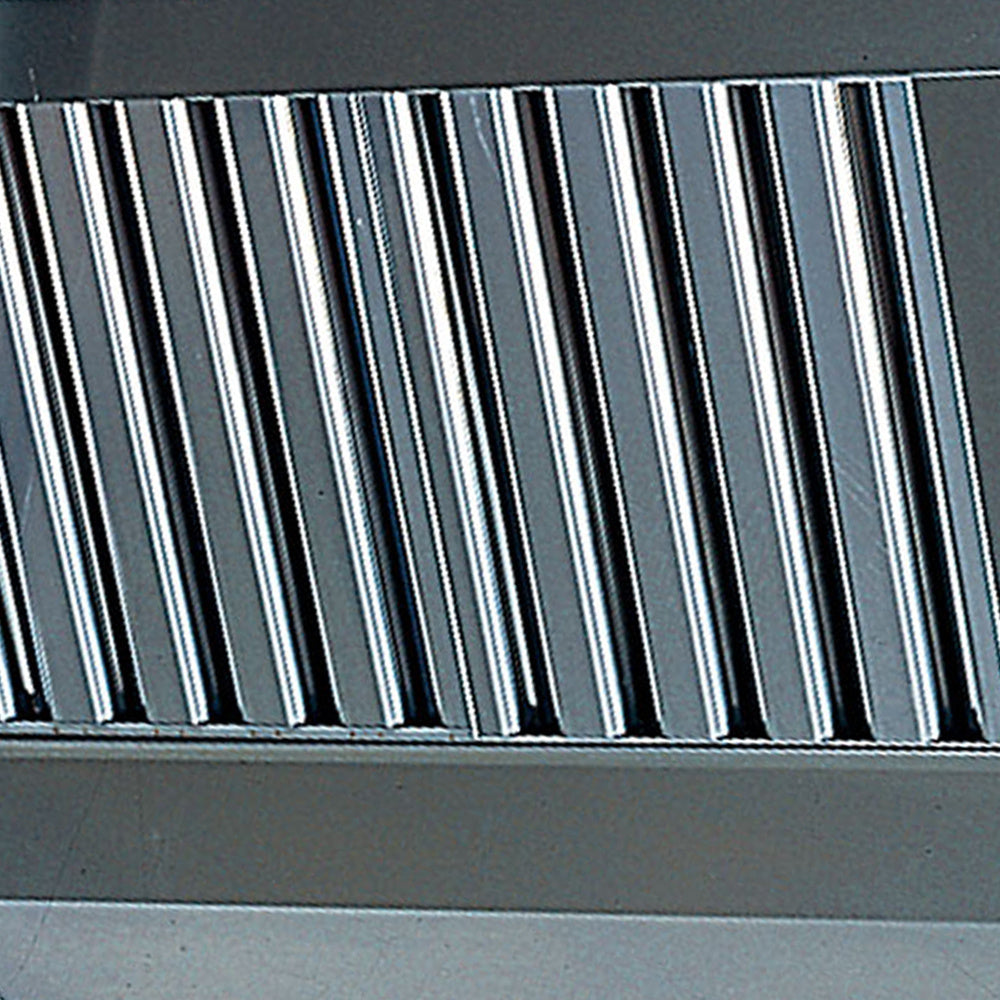

- 12 stainless steel filters "labyrinth" 500x400 mm.
- Manufactured in stainless steel 18/10 AISI 304, finished with flattened folds.
- Invisible sides in stainlees steel AISI 430, sides completely welded.

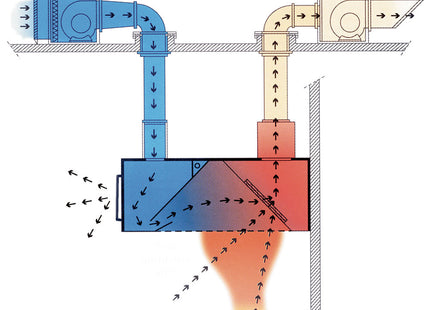

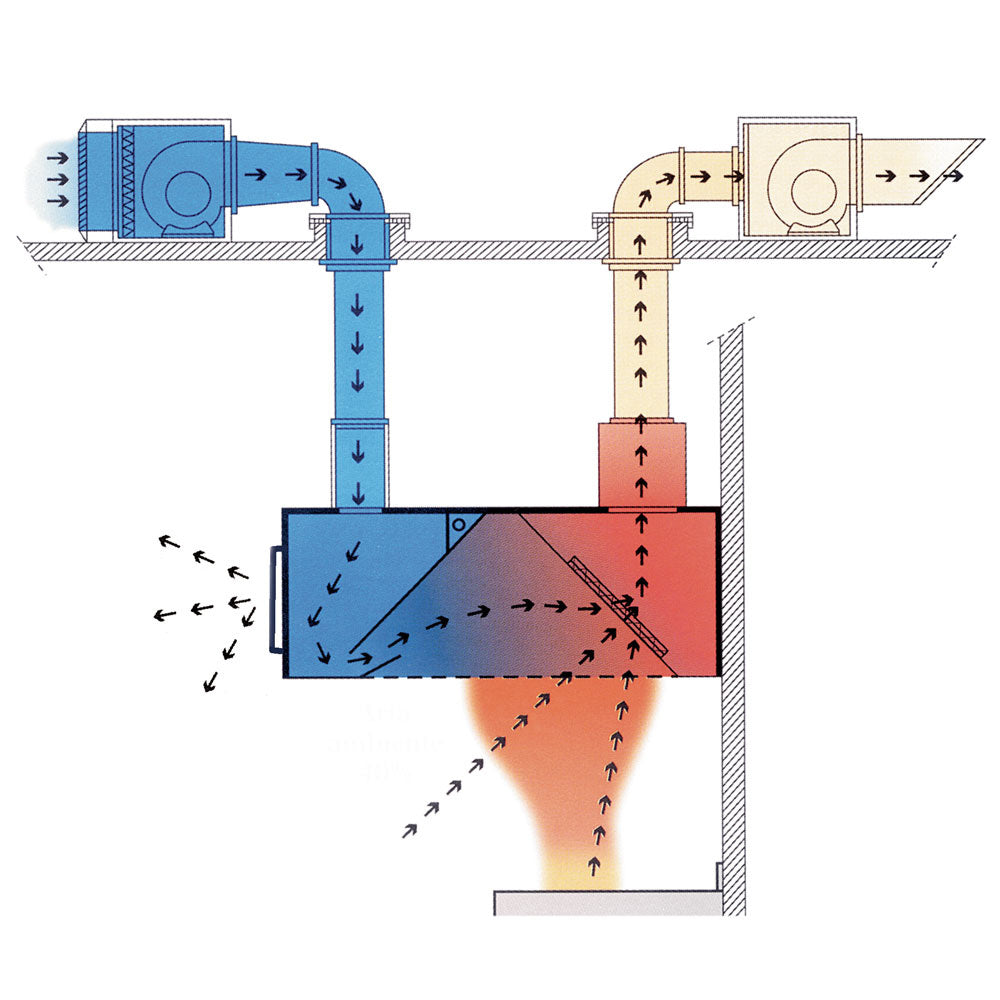

- Isolated room for fresh air supply to prevent condense.
- Regulator from volume of fresh air supply.
- Peripherically welded fat catching canal.
- Evacuation tap beneath.

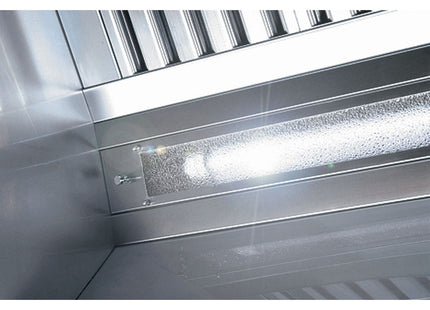

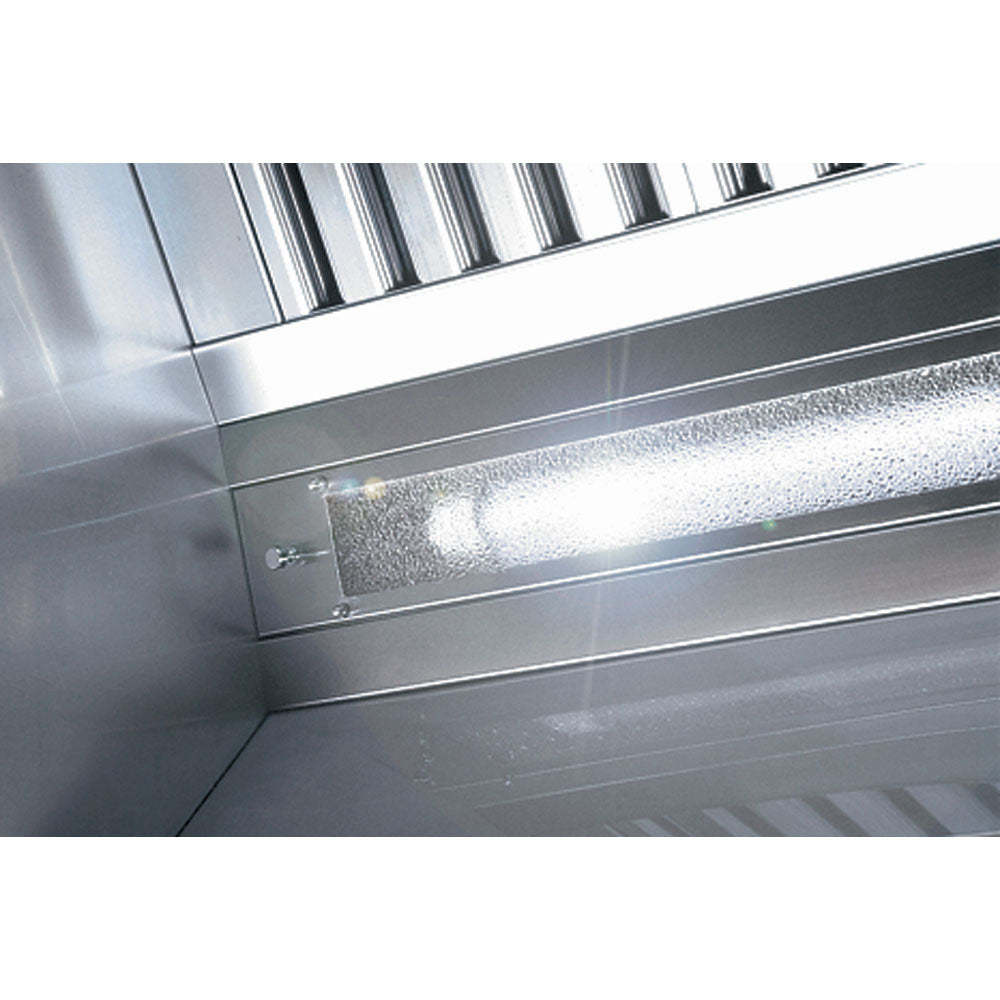

- Built-in LED lighting type "IP65".
Technical Specification
- mm (W x D x H) : 4000 x 2600 x 500
- Category: Diamond
- Range: Extraction - Ventilation
- Line: AMBIANCE LINE
- Length: 4000 mm
- Width: 2600 mm
- Height: 500 mm
- Weight: 240 kg
