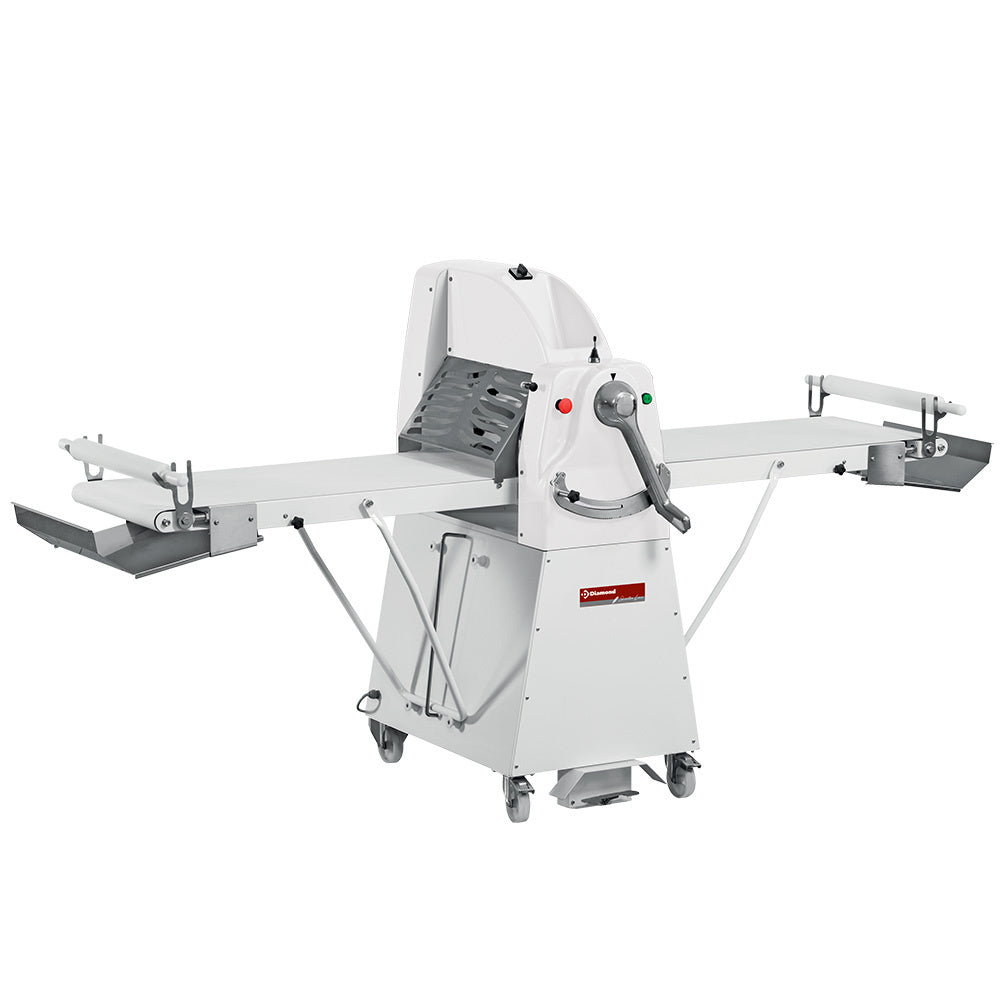

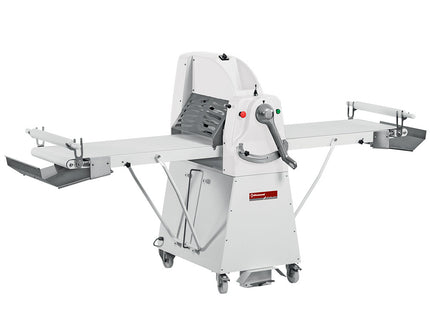

Sheeter , on socle, 500x1000 mm

Description

  • Mechanical controls, mats manipulated by joystick.
  • Base mounted version, 4 wheels, 2 fixed, 2 swivel wheels with brakes.
  • Manual and pedal controls.
  • 1 speed
  • Side tables 1000x500 mm (foldable)
  • Cylinder length 500 mm
  • Roll opening from 0 - 36 mm, rolling diameter 60 mm.
  • Travel speed 35 metres/minute
  • Closed overall dimensions 580x920xh1940
  • Standard: 2 stainless steel harvesting terminals, 2 pastry rollers.
  • Strips made with specific materials for food use.
  • Precise regulation of the thickness of the dough sheet, constant production.
  • Scrapers and supports made with specific materials (POM-C) for food use.
  • Easy disassembly and reassembly of the scrapers, without tools.
  • Chrome-plated and ground steel cylinders.
  • Harvesting bin under the cylinders and under the mats.
  • Belt with double direction of travel (Right & Left).
  • Frame in painted steel (epoxy).
  • Low voltage controls 24V.
  • Emergency stop button type "punch".
  • Roller protection grids, made of stainless steel.
  • Traction system, self-lubricated.
  • Superior flour bin.
  • Possibility to raise the tables, to reduce the space required for storage.
  • The device is built in compliance with the current CE standards.

ADVANTAGE :

  • Easy to use, quick cleaning, these are some of the advantages of our Diamond strip mills. Their robust construction and performance make them ideal for small and medium productions. They can be used to shape all types of pasta (puff pastry, shredded pastry, soft dough, buns, etc.). Manual and pedal controls, leaving the operator's hands free. Side tables that can be lifted or dismantled, moved and stored easily. Available with speed variator (standard with inverter, for more delicate processing)........ or with a single speed (standard).

Technical Specification

  • mm (W x D x H) : 2370 x 2700 x 1380 - kW (elec) : 0.55 - Voltage : 400/3N 50-60Hz
  • Category: Diamond
  • Range: Pastry - Bakery
  • Subrange: Strip mill
  • Family: Belts 500x1000
  • Subfamily: 1 SPEED
  • Line: SHEETER LINE
  • Length: 2370 mm
  • Width: 2700 mm
  • Height: 1380 mm
  • Electric Power: 0.55 kW
  • Voltage: 400/3N 50-60Hz
  • Weight: 240 kg
  • Restock Info: Contact
  • Supplier Delivery Delay: 35
  • Availability: 2

Read more

Product form

Sheeter , on socle, 500x1000 mm

2 in stock Fast delivery

Mechanical controls, mats manipulated by joystick. Base mounted version, 4 wheels, 2 fixed, 2 swivel wheels with brakes. Manual and... Read more

€6.104,00 €5.631,30

Maxigastro - only for companies with VAT registration

To purchase from Maxigastro, you must have a VAT-registered business. We do not sell to private consumers.
You will be asked for your VAT registration number before payment.

    • Guaranteed secure & safe checkout.

      shop pay
    • Fast shipping for orders on stock
    • Directly from the manufacturer to you

    Description

    • Mechanical controls, mats manipulated by joystick.
    • Base mounted version, 4 wheels, 2 fixed, 2 swivel wheels with brakes.
    • Manual and pedal controls.
    • 1 speed
    • Side tables 1000x500 mm (foldable)
    • Cylinder length 500 mm
    • Roll opening from 0 - 36 mm, rolling diameter 60 mm.
    • Travel speed 35 metres/minute
    • Closed overall dimensions 580x920xh1940
    • Standard: 2 stainless steel harvesting terminals, 2 pastry rollers.
    • Strips made with specific materials for food use.
    • Precise regulation of the thickness of the dough sheet, constant production.
    • Scrapers and supports made with specific materials (POM-C) for food use.
    • Easy disassembly and reassembly of the scrapers, without tools.
    • Chrome-plated and ground steel cylinders.
    • Harvesting bin under the cylinders and under the mats.
    • Belt with double direction of travel (Right & Left).
    • Frame in painted steel (epoxy).
    • Low voltage controls 24V.
    • Emergency stop button type "punch".
    • Roller protection grids, made of stainless steel.
    • Traction system, self-lubricated.
    • Superior flour bin.
    • Possibility to raise the tables, to reduce the space required for storage.
    • The device is built in compliance with the current CE standards.

    ADVANTAGE :

    • Easy to use, quick cleaning, these are some of the advantages of our Diamond strip mills. Their robust construction and performance make them ideal for small and medium productions. They can be used to shape all types of pasta (puff pastry, shredded pastry, soft dough, buns, etc.). Manual and pedal controls, leaving the operator's hands free. Side tables that can be lifted or dismantled, moved and stored easily. Available with speed variator (standard with inverter, for more delicate processing)........ or with a single speed (standard).

    Technical Specification

    • mm (W x D x H) : 2370 x 2700 x 1380 - kW (elec) : 0.55 - Voltage : 400/3N 50-60Hz
    • Category: Diamond
    • Range: Pastry - Bakery
    • Subrange: Strip mill
    • Family: Belts 500x1000
    • Subfamily: 1 SPEED
    • Line: SHEETER LINE
    • Length: 2370 mm
    • Width: 2700 mm
    • Height: 1380 mm
    • Electric Power: 0.55 kW
    • Voltage: 400/3N 50-60Hz
    • Weight: 240 kg
    • Restock Info: Contact
    • Supplier Delivery Delay: 35
    • Availability: 2

    Read more
