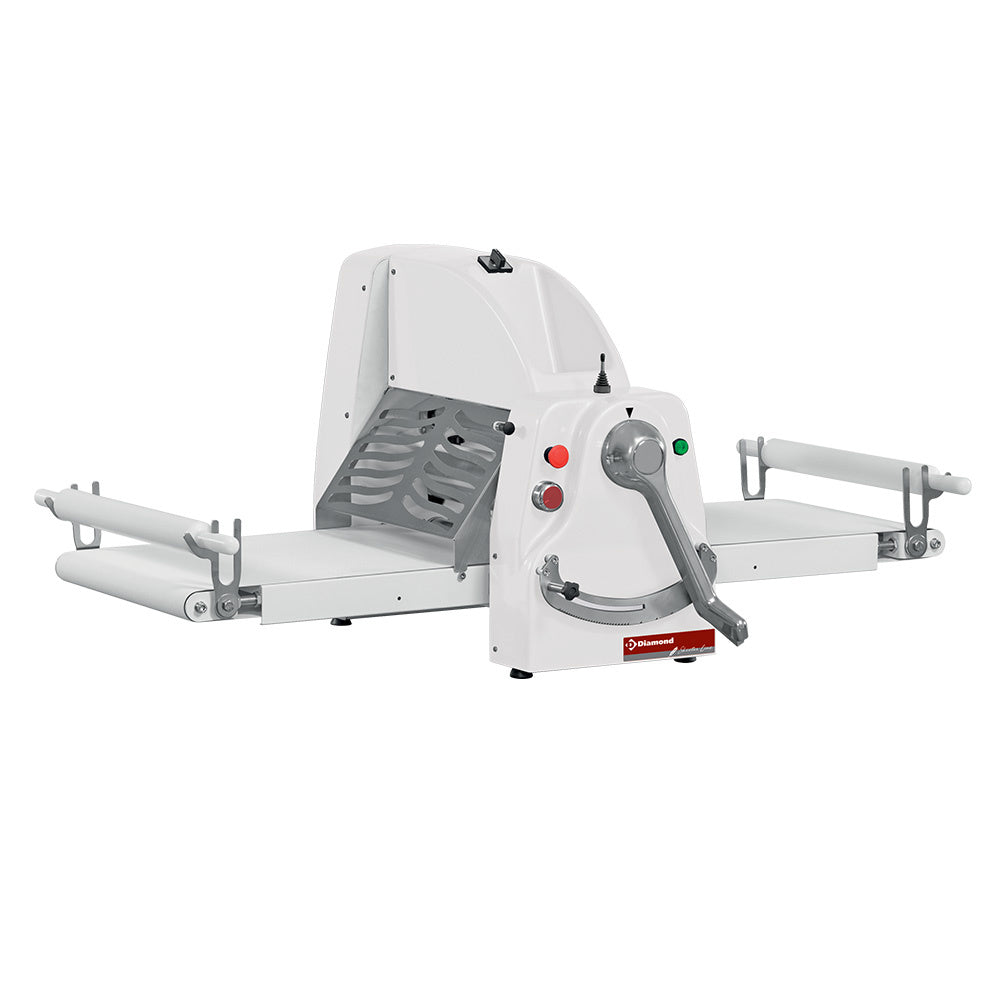

Sheeter, of table, 500x700 mm - Variable speed

Description

  • Mechanical controls, mats manipulated by joystick.
  • Table version (very compact), 4 adjustable cylinders.
  • Manual controls
  • Variable speed (10 rpm to 60 rpm), with Inverter.
  • Side tables 700x500 mm (foldable)
  • Cylinder length 500 mm
  • Roll opening 0 - 36 mm, rolling diameter 60 mm
  • Travel speed 35 metres/minute
  • Closed overall dimensions 380x920xh850.
  • Standard: 2 pastry rollers.
  • Strips made with specific materials for food use.
  • Precise regulation of the thickness of the dough sheet, constant production.
  • Scrapers and supports made with specific materials (POM-C) for food use.
  • Easy disassembly and reassembly of the scrapers, without tools.
  • Chrome-plated and ground steel cylinders.
  • Harvesting bin under the cylinders.
  • Belt with double direction of travel (Right & Left).
  • Frame in painted steel (epoxy).
  • Low voltage controls 24V.
  • Emergency stop button type "punch".
  • Roller protection grids, made of stainless steel.
  • Traction system, self-lubricated.
  • Superior flour bin.
  • Possibility to raise the tables, to reduce the space required for storage.
  • The device is built in compliance with the current CE standards.

ADVANTAGE :

  • Easy to use, quick cleaning, these are some of the advantages of our Diamond strip mills. Their robust construction and performance make them ideal for small and medium productions. They can be used to shape all types of pasta (puff pastry, shredded pastry, soft dough, buns, etc.). Side tables that can be lifted or dismantled, moved and stored easily. Available with speed variator (standard with inverter, for more delicate processing)........ or with a single speed (standard).

Technical Specification

  • mm (W x D x H) : 1520 x 920 x 700 - kW (elec) : 0.55
  • Category: Diamond
  • Range: Pastry - Bakery
  • Subrange: Strip mill
  • Family: Belts 500x700
  • Subfamily: SPEED VARIATOR
  • Line: SHEETER LINE
  • Length: 1520 mm
  • Width: 920 mm
  • Height: 700 mm
  • Electric Power: 0.55 kW
  • Weight: 150 kg
  • Restock Info: Contact
  • Supplier Delivery Delay: 35
  • Availability: 2

Read more

Product form

Sheeter, of table, 500x700 mm - Variable speed

2 in stock Fast delivery

Mechanical controls, mats manipulated by joystick. Table version (very compact), 4 adjustable cylinders. Manual controls Variable speed (10 rpm to... Read more

€5.922,00 €4.917,00

Maxigastro - only for companies with VAT registration

To purchase from Maxigastro, you must have a VAT-registered business. We do not sell to private consumers.
You will be asked for your VAT registration number before payment.

    • Guaranteed secure & safe checkout.

      shop pay
    • Fast shipping for orders on stock
    • Directly from the manufacturer to you

    Description

    • Mechanical controls, mats manipulated by joystick.
    • Table version (very compact), 4 adjustable cylinders.
    • Manual controls
    • Variable speed (10 rpm to 60 rpm), with Inverter.
    • Side tables 700x500 mm (foldable)
    • Cylinder length 500 mm
    • Roll opening 0 - 36 mm, rolling diameter 60 mm
    • Travel speed 35 metres/minute
    • Closed overall dimensions 380x920xh850.
    • Standard: 2 pastry rollers.
    • Strips made with specific materials for food use.
    • Precise regulation of the thickness of the dough sheet, constant production.
    • Scrapers and supports made with specific materials (POM-C) for food use.
    • Easy disassembly and reassembly of the scrapers, without tools.
    • Chrome-plated and ground steel cylinders.
    • Harvesting bin under the cylinders.
    • Belt with double direction of travel (Right & Left).
    • Frame in painted steel (epoxy).
    • Low voltage controls 24V.
    • Emergency stop button type "punch".
    • Roller protection grids, made of stainless steel.
    • Traction system, self-lubricated.
    • Superior flour bin.
    • Possibility to raise the tables, to reduce the space required for storage.
    • The device is built in compliance with the current CE standards.

    ADVANTAGE :

    • Easy to use, quick cleaning, these are some of the advantages of our Diamond strip mills. Their robust construction and performance make them ideal for small and medium productions. They can be used to shape all types of pasta (puff pastry, shredded pastry, soft dough, buns, etc.). Side tables that can be lifted or dismantled, moved and stored easily. Available with speed variator (standard with inverter, for more delicate processing)........ or with a single speed (standard).

    Technical Specification

    • mm (W x D x H) : 1520 x 920 x 700 - kW (elec) : 0.55
    • Category: Diamond
    • Range: Pastry - Bakery
    • Subrange: Strip mill
    • Family: Belts 500x700
    • Subfamily: SPEED VARIATOR
    • Line: SHEETER LINE
    • Length: 1520 mm
    • Width: 920 mm
    • Height: 700 mm
    • Electric Power: 0.55 kW
    • Weight: 150 kg
    • Restock Info: Contact
    • Supplier Delivery Delay: 35
    • Availability: 2

    Read more
