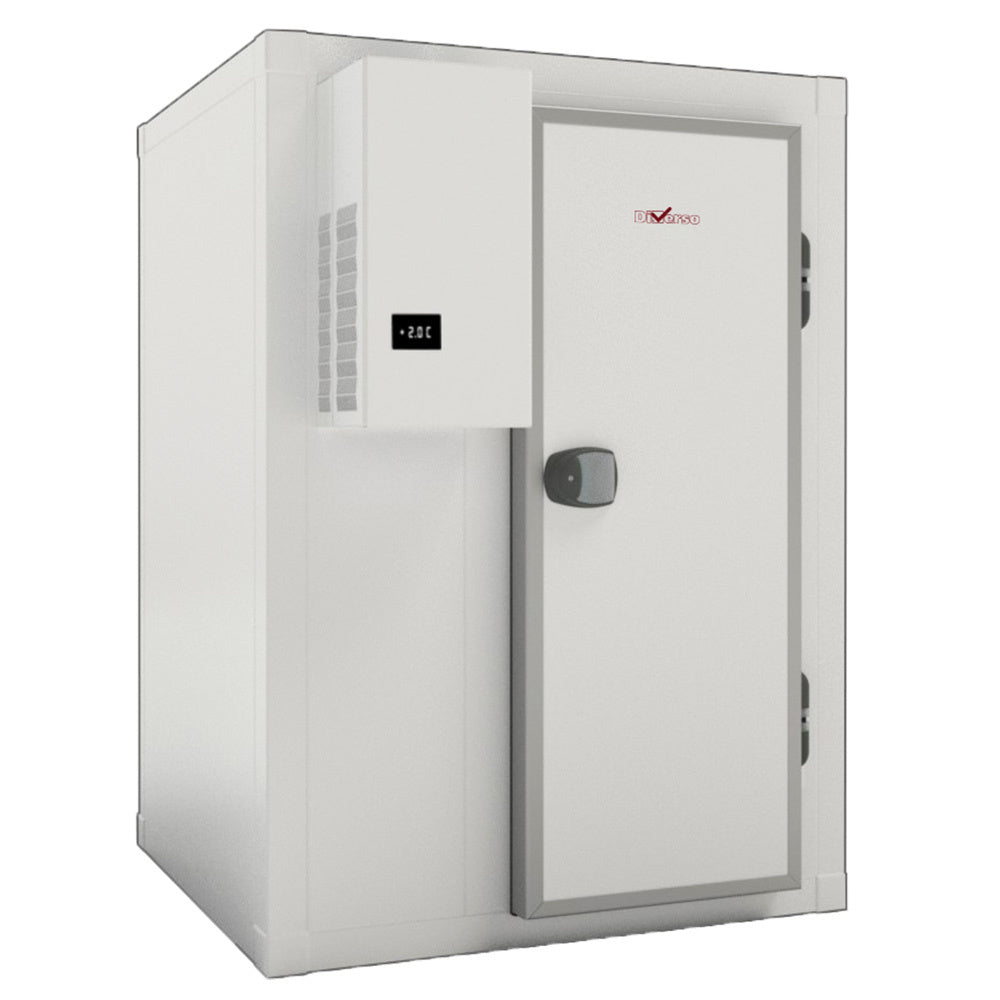

Room ISO 80 with group, int. dim. 1430 x 1230 xh 2030 mm (3,57 m³ )

Description

  • Room supplied with a monoblock refrigeration unit.
  • Internal dimensions 1430 x 1230 x h 2030 mm
  • Internal volume 3,57 m³
  • Door passage usable 700 x h 1900 mm.



  • Room: wall, floor, and ceiling thickness of 80 mm, modulation with panels ranging from 200 to 1200 mm in width (200+200+200...)
  • Panels made of white lacquered galvanized steel, "non-toxic and scratch-resistant"
  • High-density injected polyurethane insulation (43 kg/m³), eco-friendly (CFC-free)
  • Pressure relief valve.
  • Panels locked with incorporated "eccentric" hooks
  • Reinforced 12 mm plywood floor, covered with a "honeycomb" anti-slip phenolic resin, capable of supporting a load of 4000 kg/m² (140 kg point load).
  • 90° angular profiles equipped with specific end caps, also insulated with polyurethane (50 kg/m³) to prevent any potential thermal bridges
  • The corners and edges of the floor, ceiling, and walls are all rounded (R15 mm) and also insulated with polyurethane (50 kg/m³)
  • Swinging door with a thickness of 80 mm, also insulated with polyurethane (43 kg/m³), with hinges on the right, highly robust, reinforced with an anodized aluminum frame, equipped with a magnetic EPDM gasket with "pressure" (easy replacement without tools), adjustable rising hinges and a 100° stop, exterior handle with key lock, interior closure with a safety device.
  • Door seal equipped with a peripheral heating cord.
  • Unit: Overlapping type.
  • Automatic defrosting with condensate auto-evaporation.
  • Refrigerant R452a.
  • Electronic regulation, digital display.
  • Panel certified in classification "B-S3,d0" in accordance with the UNI EN 13501-1:2009 standard.
  • Equipment built in compliance with applicable (CE) standards.

PLUS :

  • Refrigeration unit already mounted on the panel next to the door, very simplified overall assembly, 100% PLUG-IN!!
  • A brand-new manufacturing design, equipped with peripheral angles and panels with linear joints, providing easier assembly and the possibility of expansion at any time, with impeccable finishing level.
  • All angles and corners are rounded, without any projecting moldings, ensuring 100% hygiene!!
  • Floor covered with "honeycomb" phenolic resin for anti-slip properties.
  • Anodized aluminum frame surrounding the door for enhanced protection (cart transit, plate-laden ladders, etc.)
  • Pre-assembly kit for panels included as standard, including ceiling support, making it safer, easier, and faster...
  • On request: adjustable shelves, strip curtains, cart ramps (outdoor and indoor), etc. ...

Technical Specification

  • mm (W x D x H) : 1590 x 1390 x 2190 - T° : -25°-15° - kW (elec) : 0.71
  • Category: Diverso
  • Range: Refrigeration
  • Subrange: Cold rooms + group
  • Family: Isolation 80 mm
  • Subfamily: 3,72 Vol/M3 / GREY
  • Length: 1590 mm
  • Width: 1390 mm
  • Height: 2190 mm
  • Electric Power: 0.71 kW
  • Weight: 200 kg
  • Restock Info: /
  • Supplier Delivery Delay: 42
  • Availability: 0
