- Completely coated with a special ceramic treatment.
- Gear drive system with "worm screw" in oil bath, "self-lubricating".
- Oblique blade, 35° inclination (standard blade extractor);
- Max cutting capacity: 270xh230 mm (Ø 255 mm), thickness 0-30 mm.
- 50 mm space between blade and chassis.
- Elegant and high-performing, made from anodized and polished aluminum alloy casting.
- Hardened steel blade, chromed and ground, fixed protection ring and blade cover with micro-switch (100% secure).
- Reinforced stop, removable stop slide protection.
- Stainless steel ball-bearing carriage, smooth and silent sliding, chromed, ground and polished sliding bar, vulcanized rubber bumper, standard plexiglass protection.
- Pusher for all products (even the smallest ones).
- Invisible screws and stainless steel deflector.
- Ventilated motor, lower electrical parts equipped with a protective cover, sealing ring on the transmission pulley.

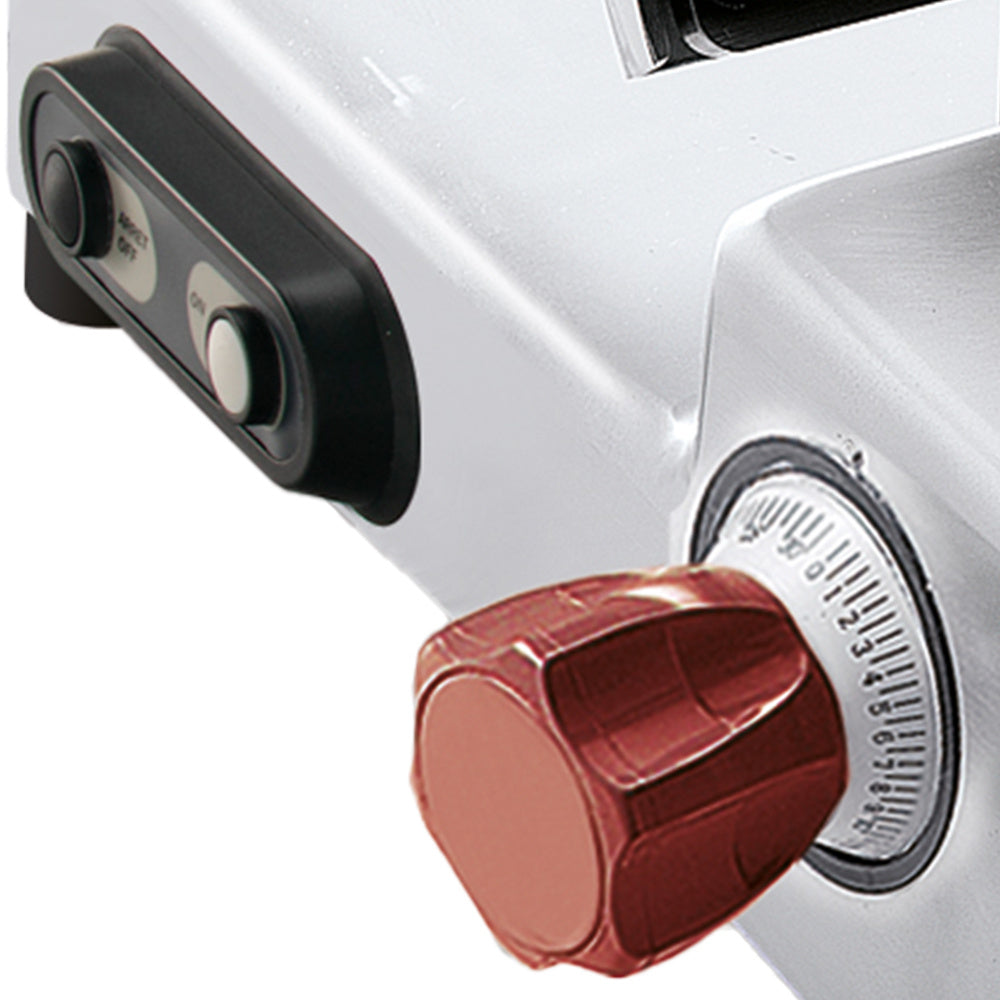

- 24V low voltage controls, IP67 protection rating, waterproof buttons, NVR (No-Voltage Release) to prevent accidental start-ups.
- Integrated sharpener and semi-transparent cover for better visibility, with 2 grinding wheels and lower protection tray.
- Adjustable jacks.
- Device built in compliance with current CE standards.
Important: easy and safe maintenance thanks to:
- its design with rounded shapes without corners, sharp edges or visible screws;
- wide space between blade and chassis;
- "secure detachment" system, allowing the carriage to be removed, with the blade secured by the stop, in position "0";
- removable blade cover;
- protection ring fixed around the blade.
ADVANTAGE : The ceramic coating is ideal for cutting particularly sticky products. It is easy to clean (IP 67) and highly resistant to acids and disinfecting chemicals. Additionally, the removable parts are dishwasher safe.
Technical Specification
- mm (W x D x H) : 575 x 575 x 530 - kW (elec) : 0.4
- Category: Diamond
- Range: Dynamic Preparation
- Subfamily: TRANSMITION GEARS
- Line: TOP LINE
- Length: 575 mm
- Width: 575 mm
- Height: 530 mm
- Electric Power: 0.4 kW
- Weight: 43 kg
