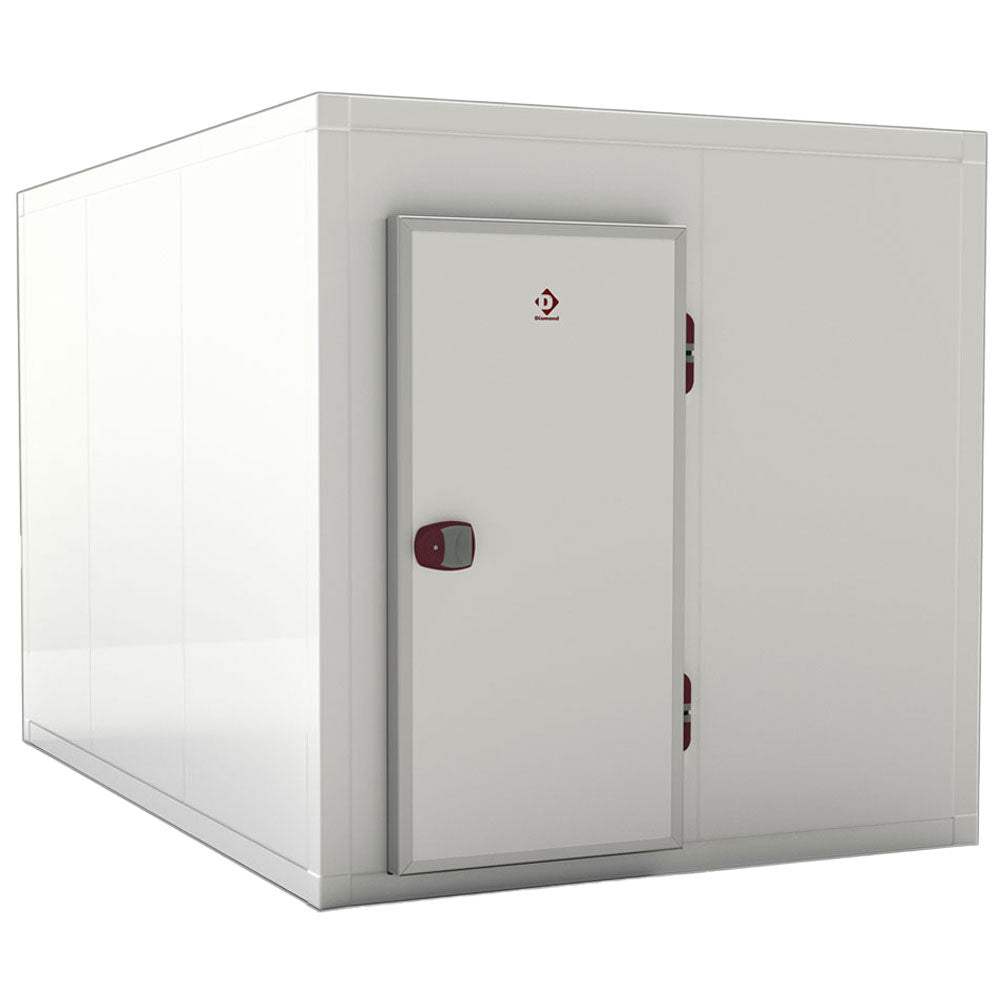

Chamber ISO 100, int. dim. 2230 x 3430 xh 2230 mm (17,06 m³)

Description

  • Internal dimensions: 2230x3430xh2230 mm.
  • Internal volume 17,06 m³.
  • Door with useful passage 900xh1900 mm (choice of door positioning on 4 sides).
  • Door seal fitted with a peripheral heating cord (for negative T°).
  • Vacuum valve (for negative T°).



  • Multipurpose chamber for positive or negative temperature, wall, floor and ceiling thickness 100mm, modulation with panels from 200 to 1200mm wide (200+200+200 etc).
  • Panels made of non-toxic, anti-scratch white-lacquered galvanised sheet steel.
  • High-density injected polyurethane insulation (43kg/m3), environmentally friendly (CFC-free).
  • Panels locked by built-in ‘eccentric’ hooks.
  • Reinforced floor in 12mm multiplex wood, covered with a ‘honeycomb’ non-slip phenolic resin, withstanding a load of 4000kg/m² (140kg point load).
  • Peripheral 90° corners with specific end caps, also insulated with polyurethane (50kg/m3) to prevent any thermal bridging.
  • The corners and edges of the floor, ceiling and walls are all rounded (R15 mm) and also insulated with polyurethane (50kg/m3).
  • 100 mm thick hinged door also insulated with polyurethane (43 kg/m3), with right-hand hinges (left-hand hinges available on request: CGC/BF), very sturdy, reinforced with an anodised aluminium perimeter frame, fitted with an EPDM pressure magnetic seal (easy replacement, no tools required), adjustable upward hinges with 100° stop, external handle with key lock, internal lock with safety device.
  • Panel certified to classification B-S3,d0 in accordance with UNI EN 13501-1:2009.
  • Equipment built in compliance with current EC standards.

PLUS :

  • Maxicold EVO, a brand new manufacturing concept, with peripheral corners and panels with linear joints, for ease of assembly and the possibility of extension at any time, with an impeccable level of finish.
  • The angles and corners are all rounded, with no transfer mouldings - 100% hygiene guaranteed.
  • Floor covered in non-slip phenolic ‘honeycomb’ resin.
  • All-round door frame in anodised aluminium, for extra protection (through transit of trolleys, ladders, etc).
  • Pre-assembly kit for panels supplied as standard, including ceiling support, making assembly safer, easier and quicker.
  • On request: modular shelving, strip curtains, trolley ramps (exterior and interior), etc.

Technical Specification

  • mm (W x D x H) : 2430 x 3630 x 2430
  • Category: Diamond
  • Range: Refrigeration
  • Subrange: Cold & freezing rooms
  • Family: Isolation 100 mm
  • Subfamily: 16,44 Vol/M3 / WHITE
  • Line: MAXICOLD 100 EVO
  • Length: 2430 mm
  • Width: 3630 mm
  • Height: 2430 mm
  • Weight: 730 kg
  • Restock Info: Contact
  • Supplier Delivery Delay: 42
  • Availability: 1
