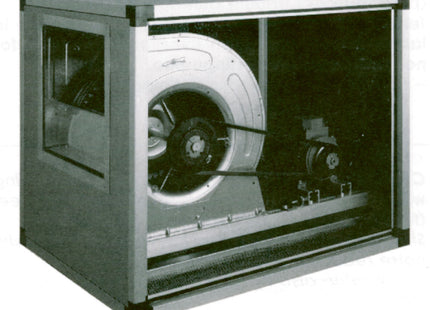

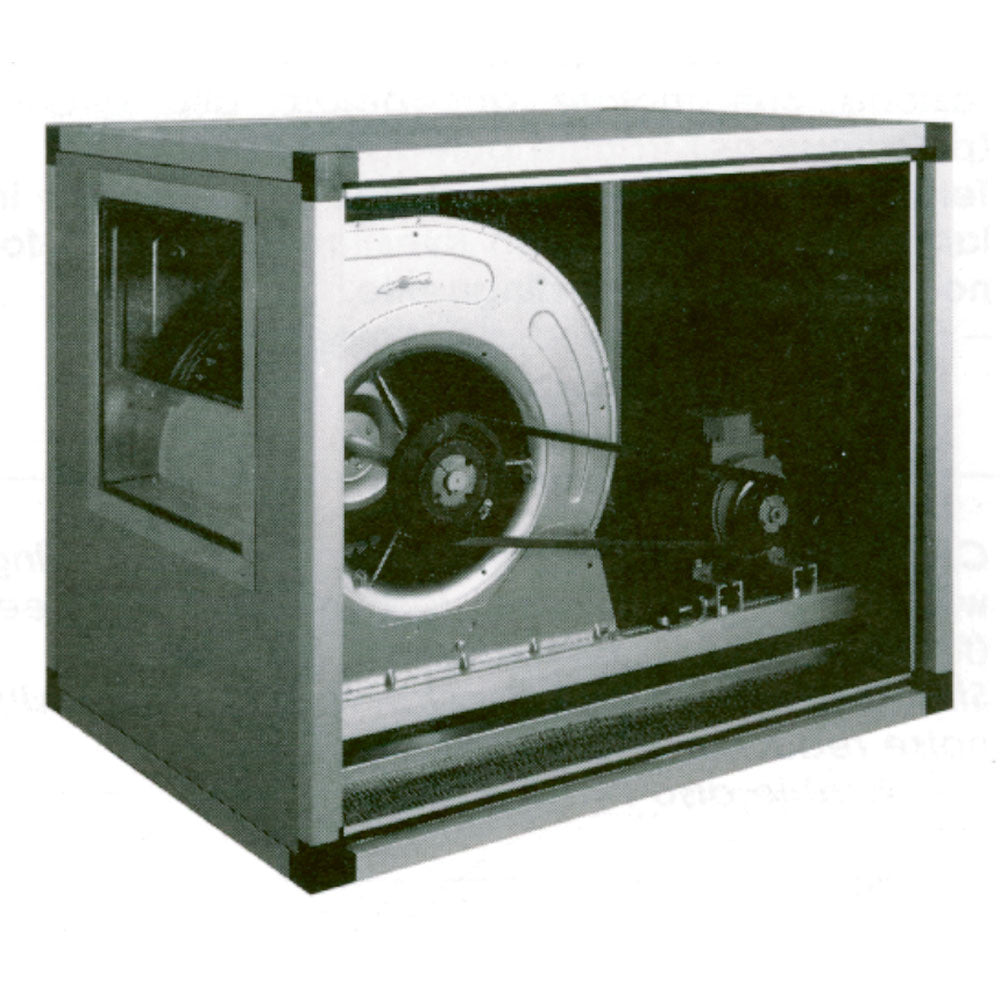

Diamond's Centrifugal Ventilator with Isolated Caisson is a high-quality product designed for commercial kitchens. Made from galvanized steel, this ventilator features a durable construction that withstands the demands of heavy use. The double inlet internal ventilator and belt drive ensure reliable performance and efficient airflow.
Perfect for extraction and ventilation applications, Diamond's Centrifugal Ventilator with Isolated Caisson is a reliable choice for any commercial kitchen operation. With its advanced materials and expert craftsmanship, this product offers unparalleled performance and longevity.
Technical specifications
- Flow: 7000 m³/h (300 Pa pressure drop).
- 1020 r/min.
- Double inlet internal ventilator with belt drive.
- Produced in galvanized steel.
- Aluminium profile frame.
- Side inspection for after-sales service .
- Internal sound insulation.
- Fitted with flexible discharge collars and anti-vibration pads.
- 2-speed closed motor, IP54 degree of protection (max. temperature 80°C).
Technical Specification
- mm (W x D x H) : 750 x 1000 x 750 - kW (elec) : 2.2 - Voltage : 400/3N 50Hz
- Category: Diamond
- Range: Extraction - Ventilation
- Length: 750 mm
- Width: 1000 mm
- Height: 750 mm
- Electric Power: 2.2 kW
- Voltage: 400/3N 50Hz
- Weight: 75 kg
