Energy class: A
Refrigeration unit positioned on the left.
Wall-mounted version with raised rear edge.
Included: 1 grid GN1/1 (530x325mm), per door.
6 adjustable stainless steel feet.
Can be installed on a base.
Interior and exterior made of AISI 304 stainless steel (food grade), monocoque frame
Independent top (removable), in stainless steel (food grade) AISI 304
Stainless steel racks and slides (antitilt), allowing the grids to be positioned as desired, deep-drawn inner bottom and rounded corners and angles (without rough edges)
Doors with ergonomic (not protruding) and reversible handle (see Kit TKDX-H or TKSX-H), closing by "triple chamber" and magnetic "pressure" seal (easy replacement, without tools), hinges (front fixing) with 100° stop, closing with automatic return
Front access to compressor unit, easy inspection
Compressor unit in climate class 5 (40°C Temperature - 40% Humidity, incorporated in the cabinet (right), ventilated condenser.
Ventilated (side) evaporator (oversized), treated against salt and coating food acids, completely hidden (not visible)
Refrigerant gas R290.
Digital" electronic microprocessor (in closed box, 100% waterproof), with HACCP functions, front panel display with blue LED
Automatic defrosting of the evaporator (hot gas), number of defrostings factory program (can be modified as required)
Automatic condensate evaporation (hot gas)
CFC-free polyurethane insulation (60 mm)
The device is built in compliance with all applicable standards (CE).
Exceptional performance thanks to the forced piping of the refrigerated air, uniform temperature.
Delicate products 2 humidity levels.
Microprocessor (100% waterproof), with HACCP functions.
Group of type "monobloc", equipped with an air filter (washable).
Technical Specification
mm (W x D x H) : 2250 x 700 x 880/900(+85) - T° : -2°+8° - kW (elec) : 0.36
Category: Diamond
Range: Refrigeration
Subrange: Refrigeration & Freezing Tables
Family: Refrigerated 4 doors A / dos
Subfamily: 700 MM / GN 1/1
Line: GOLD LINE PLUS
Length: 2250 mm
Width: 700 mm
Height: 880/900(+85) mm
Electric Power: 0.36 kW
Weight: 268 kg
Restock Info: /
Supplier Delivery Delay: 35
Availability: 0
Energy class: A
Sink 300x330xh200 mm built into the top (on the right), equipped with a trap, strainer, and overflow drain (NB faucet on request, hole on the top (33 mm)
"Wall-mounted" version with raised back edge
Included: 1 GN1/1 grid (530x325mm), per door
6 adjustable stainless steel legs.
Installation possible on a base.
Interior and exterior made of food-grade AISI 304 stainless steel, monocoque chassis
Independent (removable) top made of food-grade AISI 304 stainless steel
Stainless steel (anti-tilt) racks and slides, allowing for flexible positioning of grids, with stamped interior bottom and rounded angles and corners (smooth surfaces)
Doors with ergonomic (non-protruding) and reversible handles (see Kit TKDX-H or TKSX-H), closure ensured by "triple-chamber" gasket and "pressure" magnetic seal (easy replacement, no tools required), hinges (frontal attachment) with 100° stop, self-closing feature
Frontal accessibility to the compressor unit, easy inspection
Compressor unit in climate class 5 (40°C Temperature - 40% Humidity), built into the cabinet (on the right), ventilated condenser.
Ventilated (oversized) evaporator (side-mounted), treated against salt and food acids with a "coating," completely concealed (not visible)
Refrigerant R290.
Electronic "digital" microprocessor (in a closed box, 100% waterproof), with HACCP functions, front control screen with blue LED
Automatic defrosting of the evaporator (hot gas), number of factory-programmed defrost cycles (modifiable as desired)
Automatic evaporation of condensate (with hot gas)
CFC-free polyurethane insulation (60 mm)
Appliance built in compliance with all current CE regulations.
PLUS :
Outstanding performance due to forced air refrigeration, ensuring uniform temperature.
Suitable for delicate products with 2 humidity levels.
100% waterproof microprocessor with HACCP functions.
Unit mounted on "extractable" rails, of the "monobloc" type, equipped with a washable air filter.
Technical Specification
mm (W x D x H) : 2250 x 700 x 880/900(+85) - T° : -2°+8° - kW (elec) : 0.36
Category: Diamond
Range: Refrigeration
Subrange: Refrigeration & Freezing Tables
Family: Refrigerated 4 doors A / dos
Subfamily: 700 MM / GN 1/1 + SINK
Line: GOLD LINE PLUS
Length: 2250 mm
Width: 700 mm
Height: 880/900(+85) mm
Electric Power: 0.36 kW
Weight: 268 kg
Restock Info: /
Supplier Delivery Delay: 35
Availability: 0
Energy class: A
Wall-mounted version with raised rear edge.
Included: 1 grid GN1/1 (530x325mm), per door.
6 adjustable stainless steel feet.
Can be installed on a base.
Interior and exterior made of AISI 304 stainless steel (food grade), monocoque frame
Independent top (removable), in stainless steel (food grade) AISI 304
Stainless steel racks and slides (antitilt), allowing the grids to be positioned as desired, deep-drawn inner bottom and rounded corners and angles (without rough edges)
Doors with ergonomic (not protruding) and reversible handle (see Kit TKDX-H or TKSX-H), closing by "triple chamber" and magnetic "pressure" seal (easy replacement, without tools), hinges (front fixing) with 100° stop, closing with automatic return
Front access to compressor unit, easy inspection
Compressor unit in climate class 5 (40°C Temperature - 40% Humidity, incorporated in the cabinet (right), ventilated condenser.
Ventilated (side) evaporator (oversized), treated against salt and coating food acids, completely hidden (not visible)
Refrigerant gas R290.
Digital" electronic microprocessor (in closed box, 100% waterproof), with HACCP functions, front panel display with blue LED
Automatic defrosting of the evaporator (hot gas), number of defrostings factory program (can be modified as required)
Automatic condensate evaporation (hot gas)
CFC-free polyurethane insulation (60 mm)
The device is built in compliance with all applicable standards (CE).
Exceptional performance thanks to the forced piping of the refrigerated air, uniform temperature.
Delicate products 2 humidity levels.
Microprocessor (100% waterproof), with HACCP functions.
Group of type "monobloc", equipped with an air filter (washable).
Technical Specification
mm (W x D x H) : 2250 x 700 x 880/900 (+85) - T° : -2°+8° - kW (elec) : 0.36
Category: Diamond
Range: Refrigeration
Subrange: Refrigeration & Freezing Tables
Family: Refrigerated 4 doors A / dos
Subfamily: 700 MM / GN 1/1
Line: GOLD LINE PLUS
Length: 2250 mm
Width: 700 mm
Height: 880/900 (+85) mm
Electric Power: 0.36 kW
Weight: 268 kg
Restock Info: Contact
Supplier Delivery Delay: 35
Availability: 1
Energy class: A
Included: 1 grid GN1/1 (530x325mm), per door.
6 adjustable stainless steel feet.
Can be installed on a base.
Interior and exterior made of AISI 304 stainless steel (food grade), monocoque frame
Independent top (removable), in stainless steel (food grade) AISI 304
Stainless steel racks and slides (antitilt), allowing the grids to be positioned as desired, deep-drawn inner bottom and rounded corners and angles (without rough edges)
Doors with ergonomic (not protruding) and reversible handle (see Kit TKDX-H or TKSX-H), closing by "triple chamber" and magnetic "pressure" seal (easy replacement, without tools), hinges (front fixing) with 100° stop, closing with automatic return
Front access to compressor unit, easy inspection
Compressor unit in climate class 5 (40°C Temperature - 40% Humidity, incorporated in the cabinet (right), ventilated condenser.
Ventilated (side) evaporator (oversized), treated against salt and coating food acids, completely hidden (not visible)
Refrigerant gas R290.
Digital" electronic microprocessor (in closed box, 100% waterproof), with HACCP functions, front panel display with blue LED
Automatic defrosting of the evaporator (hot gas), number of defrostings factory program (can be modified as required)
Automatic condensate evaporation (hot gas)
CFC-free polyurethane insulation (60 mm)
The device is built in compliance with all applicable standards (CE).
Exceptional performance thanks to the forced piping of the refrigerated air, uniform temperature.
Delicate products 2 humidity levels.
Microprocessor (100% waterproof), with HACCP functions.
Group of type "monobloc", equipped with an air filter (washable).

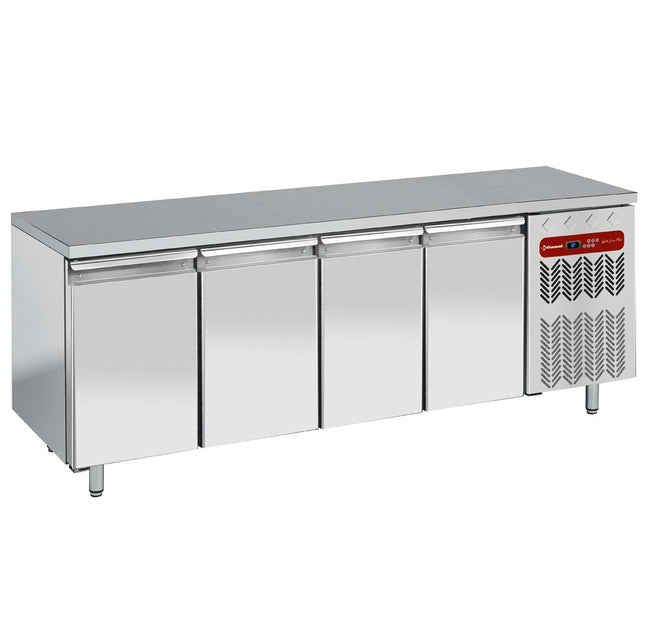

Technical Specification
mm (W x D x H) : 2250 x 700 x 880/900 - T° : -2°+8° - kW (elec) : 0.36
Category: Diamond
Range: Refrigeration
Subrange: Refrigeration & Freezing Tables
Family: Refrigerated 4 doors
Subfamily: 700 MM / GN 1/1
Line: GOLD LINE PLUS
Length: 2250 mm
Width: 700 mm
Height: 880/900 mm
Electric Power: 0.36 kW
Weight: 268 kg
Restock Info: Contact
Supplier Delivery Delay: 35
Availability: 3

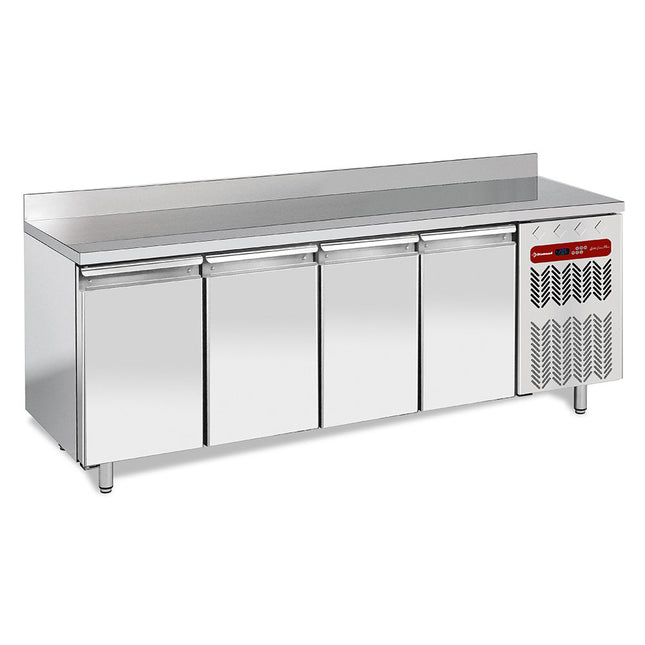

Energy class: D
Wall-mounted version with raised rear edge.
Included: 1 grid GN1/1 (530x325mm), per door
6 adjustable stainless steel feet.
Can be installed on a base.
NB We do not recommend equipping the drawer units
Interior and exterior made of AISI 304 stainless steel (food grade), monocoque frame
Independent top (removable), in stainless steel (food grade) AISI 304
Stainless steel racks and slides (antitilt), allowing the grids to be positioned as desired, deep-drawn inner bottom and rounded corners and angles (without rough edges)
Doors with ergonomic (not protruding) and reversible handles (see Kit, TKDX-H or TKSX-H), closing by "triple chamber" and magnetic "pressure" seal (easy replacement, without tools), hinges (front fixing) with 100° stop, closing with automatic return, counter door with heating resistance
Front access to compressor unit, easy inspection
Compressor unit in climate class 5 (40°C Temperature - 40% Humidity), incorporated in the cabinet (right), ventilated condenser.
Ventilated (side) evaporator (oversized), treated against salt and coating food acids, completely hidden (not visible)
Refrigerant gas R290.
Digital" electronic microprocessor (in closed box, 100% waterproof), with HACCP functions, front panel display with blue LED
Automatic defrosting of the evaporator (hot gas), number of defrostings factory program (can be modified as required)
Automatic condensate evaporation (hot gas)
CFC-free polyurethane insulation (60 mm)
The device is built in compliance with all applicable standards (CE).
NB No possibility of mounting drawers
Exceptional performances thanks to the forced piping of the refrigerated air at a uniform temperature.
Monobloc" type group, equipped with an air filter (washable).
Microprocessor (100% waterproof), with HACCP functions.
Technical Specification
mm (W x D x H) : 2250 x 700 x 880/900 (+85) - T° : -20°-10° - kW (elec) : 0.73
Category: Diamond
Range: Refrigeration
Subrange: Refrigeration & Freezing Tables
Family: Freezing 4 doors A / dos
Subfamily: 700 MM / GN 1/1
Line: GOLD LINE PLUS
Length: 2250 mm
Width: 700 mm
Height: 880/900 (+85) mm
Electric Power: 0.73 kW
Weight: 268 kg
Restock Info: /
Supplier Delivery Delay: 35
Availability: 0

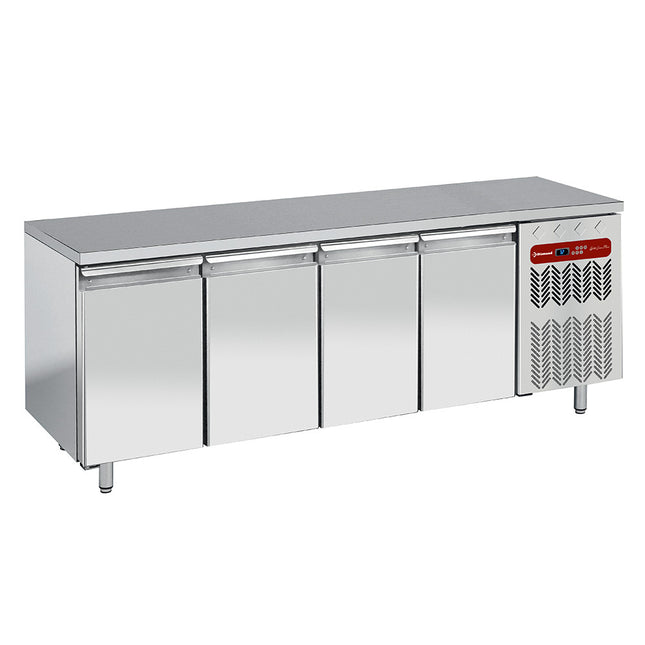

Energy class: D
Included: 1 grid GN1/1 (530x325mm), per door
6 adjustable stainless steel feet.
Can be installed on a base.
NB We do not recommend equipping the drawer units
Interior and exterior made of AISI 304 stainless steel (food grade), monocoque frame
Independent top (removable), in stainless steel (food grade) AISI 304
Stainless steel racks and slides (antitilt), allowing the grids to be positioned as desired, deep-drawn inner bottom and rounded corners and angles (without rough edges)
Doors with ergonomic (not protruding) and reversible handles (see Kit, TKDX-H or TKSX-H), closing by "triple chamber" and magnetic "pressure" seal (easy replacement, without tools), hinges (front fixing) with 100° stop, closing with automatic return, counter door with heating resistance
Front access to compressor unit, easy inspection
Compressor unit in climate class 5 (40°C Temperature - 40% Humidity), incorporated in the cabinet (right), ventilated condenser.
Ventilated (side) evaporator (oversized), treated against salt and coating food acids, completely hidden (not visible)
Refrigerant gas R290.
Digital" electronic microprocessor (in closed box, 100% waterproof), with HACCP functions, front panel display with blue LED
Automatic defrosting of the evaporator (hot gas), number of defrostings factory program (can be modified as required)
Automatic condensate evaporation (hot gas)
CFC-free polyurethane insulation (60 mm)
The device is built in compliance with all applicable standards (CE).
NB No possibility of mounting drawers
Exceptional performances thanks to the forced piping of the refrigerated air at a uniform temperature.
Monobloc" type group, equipped with an air filter (washable).
Microprocessor (100% waterproof), with HACCP functions.
Technical Specification
mm (W x D x H) : 2250 x 700 x 880/900 - T° : -20°-10° - kW (elec) : 0.73
Category: Diamond
Range: Refrigeration
Subrange: Refrigeration & Freezing Tables
Family: Freezing 4 doors
Subfamily: 700 MM / GN 1/1
Line: GOLD LINE PLUS
Length: 2250 mm
Width: 700 mm
Height: 880/900 mm
Electric Power: 0.73 kW
Weight: 268 kg
Restock Info: Contact
Supplier Delivery Delay: 35
Availability: 2
Energy class: A
Refrigeration unit positioned on the left
Included: 1 grid GN1/1 (530x325mm), per door
4 adjustable stainless steel feet.
Can be installed on a base.
Interior and exterior made of AISI 304 stainless steel (food grade), monocoque frame
Independent top (removable), in stainless steel (food grade) AISI 304
Stainless steel racks and slides (antitilt), allowing the grids to be positioned as desired, deep-drawn inner bottom and rounded corners and angles (without rough edges)
Doors with ergonomic (not protruding) and reversible handle (see Kit TKDX-H or TKSX-H), closing by "triple chamber" and magnetic "pressure" seal (easy replacement, without tools), hinges (front fixing) with 100° stop, closing with automatic return
Front access to compressor unit, easy inspection
Compressor unit in climate class 5 (40°C Temperature - 40% Humidity, incorporated in the cabinet (right), ventilated condenser.
Ventilated (side) evaporator (oversized), treated against salt and coating food acids, completely hidden (not visible)
Refrigerant gas R290.
Digital" electronic microprocessor (in closed box, 100% waterproof), with HACCP functions, front panel display with blue LED
Automatic defrosting of the evaporator (hot gas), number of defrostings factory program (can be modified as required)
Automatic condensate evaporation (hot gas)
CFC-free polyurethane insulation (60 mm)
The device is built in compliance with all applicable standards (CE).
Exceptional performance thanks to the forced piping of the refrigerated air, uniform temperature.
Delicate products 2 humidity levels.
Microprocessor (100% waterproof), with HACCP functions.
Group of type "monobloc", equipped with an air filter (washable).
Technical Specification
mm (W x D x H) : 1805 x 700 x 880/900 - T° : -2°+8° - kW (elec) : 0.36
Category: Diamond
Range: Refrigeration
Subrange: Refrigeration & Freezing Tables
Family: Refrigerated 3 doors
Subfamily: 700 MM / GN 1/1
Line: GOLD LINE PLUS
Length: 1805 mm
Width: 700 mm
Height: 880/900 mm
Electric Power: 0.36 kW
Weight: 221 kg
Restock Info: /
Supplier Delivery Delay: 35
Availability: 0
Energy class: A
Refrigeration unit positioned on the left.
Wall-mounted version with raised rear edge.
Included: 1 grid GN1/1 (530x325mm), per door.
4 adjustable stainless steel feet.
Can be installed on a base.
Interior and exterior made of AISI 304 stainless steel (food grade), monocoque frame
Independent top (removable), in stainless steel (food grade) AISI 304
Stainless steel racks and slides (antitilt), allowing the grids to be positioned as desired, deep-drawn inner bottom and rounded corners and angles (without rough edges)
Doors with ergonomic (not protruding) and reversible handle (see Kit TKDX-H or TKSX-H), closing by "triple chamber" and magnetic "pressure" seal (easy replacement, without tools), hinges (front fixing) with 100° stop, closing with automatic return
Front access to compressor unit, easy inspection
Compressor unit in climate class 5 (40°C Temperature - 40% Humidity, incorporated in the cabinet (right), ventilated condenser.
Ventilated (side) evaporator (oversized), treated against salt and coating food acids, completely hidden (not visible)
Refrigerant gas R290.
Digital" electronic microprocessor (in closed box, 100% waterproof), with HACCP functions, front panel display with blue LED
Automatic defrosting of the evaporator (hot gas), number of defrostings factory program (can be modified as required)
Automatic condensate evaporation (hot gas)
CFC-free polyurethane insulation (60 mm)
The device is built in compliance with all applicable standards (CE).
Exceptional performance thanks to the forced piping of the refrigerated air, uniform temperature.
Delicate products 2 humidity levels.
Microprocessor (100% waterproof), with HACCP functions.
Group of type "monobloc", equipped with an air filter (washable).
Technical Specification
mm (W x D x H) : 1805 x 700 x 880/900(+85) - T° : -2°+8° - kW (elec) : 0.36
Category: Diamond
Range: Refrigeration
Subrange: Refrigeration & Freezing Tables
Family: Refrigerated 3 doors A / dos
Subfamily: 700 MM / GN 1/1
Line: GOLD LINE PLUS
Length: 1805 mm
Width: 700 mm
Height: 880/900(+85) mm
Electric Power: 0.36 kW
Weight: 221 kg
Restock Info: /
Supplier Delivery Delay: 35
Availability: 0
Energy class: A
Sink 300x330xh200 mm built into the top (on the right), equipped with siphon, strainer, and overflow drain (NB: tap on request, hole on the top – Ø 33 mm)
“Wall” version with raised rear edge
Supplied with: 1 GN1/1 grid (530x325 mm) per door
4 adjustable stainless steel feet
Can be installed on a base.
Interior and exterior made of AISI 304 stainless steel (food-grade), monocoque frame
Removable top in AISI 304 stainless steel
Stainless steel anti-tilt shelf supports and slides, freely positionable grids, pressed inner bottom with rounded corners (no sharp edges)
Doors with ergonomic (flush) handles, reversible (see Kit TKDX-H or TKSX-H), triple-chamber magnetic pressure gasket (easily replaceable without tools), front-mounted hinges with 100° stop, self-closing system
Front access to compressor unit for easy inspection
Compressor group climate class 5 (40°C – 40% RH), integrated into the unit (right side), ventilated condenser
Oversized lateral ventilated evaporator, coated against salt and food acids, fully hidden
Refrigerant gas R290
Digital microprocessor (in watertight box), HACCP functions, LED display on the front
Automatic hot gas evaporator defrosting (factory-set, programmable)
Automatic hot gas condensate evaporation
60 mm CFC-free polyurethane insulation
CE-compliant.
PLUS :
Exceptional performance thanks to forced air circulation, uniform temperature
Two humidity levels for delicate products
Fully waterproof microprocessor with HACCP
Monoblock group with washable air filter.
Technical Specification
mm (W x D x H) : 1805 x 700 x 880/900(+85) - T° : -2°+8° - kW (elec) : 0.36
Category: Diamond
Range: Refrigeration
Subrange: Refrigeration & Freezing Tables
Family: Refrigerated 3 doors A / dos
Subfamily: 700 MM / GN 1/1 + SINK
Line: GOLD LINE PLUS
Length: 1805 mm
Width: 700 mm
Height: 880/900(+85) mm
Electric Power: 0.36 kW
Weight: 221 kg
Restock Info: 10
Supplier Delivery Delay: 35
Availability: 0
Energy class: A
Wall-mounted version with raised rear edge.
Included: 1 grid GN1/1 (530x325mm), per door.
4 adjustable stainless steel feet.
Can be installed on a base.
Interior and exterior made of AISI 304 stainless steel (food grade), monocoque frame
Independent top (removable), in stainless steel (food grade) AISI 304
Stainless steel racks and slides (antitilt), allowing the grids to be positioned as desired, deep-drawn inner bottom and rounded corners and angles (without rough edges)
Doors with ergonomic (not protruding) and reversible handle (see Kit TKDX-H or TKSX-H), closing by "triple chamber" and magnetic "pressure" seal (easy replacement, without tools), hinges (front fixing) with 100° stop, closing with automatic return
Front access to compressor unit, easy inspection
Compressor unit in climate class 5 (40°C Temperature - 40% Humidity, incorporated in the cabinet (right), ventilated condenser.
Ventilated (side) evaporator (oversized), treated against salt and coating food acids, completely hidden (not visible)
Refrigerant gas R290.
Digital" electronic microprocessor (in closed box, 100% waterproof), with HACCP functions, front panel display with blue LED
Automatic defrosting of the evaporator (hot gas), number of defrostings factory program (can be modified as required)
Automatic condensate evaporation (hot gas)
CFC-free polyurethane insulation (60 mm)
The device is built in compliance with all applicable standards (CE).
Exceptional performance thanks to the forced piping of the refrigerated air, uniform temperature.
Delicate products 2 humidity levels.
Microprocessor (100% waterproof), with HACCP functions.
Group of type "monobloc", equipped with an air filter (washable).
Technical Specification
mm (W x D x H) : 1805 x 700 x 880/900 (+85) - T° : -2°+8° - kW (elec) : 0.36
Category: Diamond
Range: Refrigeration
Subrange: Refrigeration & Freezing Tables
Family: Refrigerated 3 doors A / dos
Subfamily: 700 MM / GN 1/1
Line: GOLD LINE PLUS
Length: 1805 mm
Width: 700 mm
Height: 880/900 (+85) mm
Electric Power: 0.36 kW
Weight: 221 kg
Restock Info: Contact
Supplier Delivery Delay: 35
Availability: 1
Energy class: A
Included: 1 grid GN1/1 (530x325mm), per door.
4 adjustable stainless steel feet.
Can be installed on a base.
Interior and exterior made of AISI 304 stainless steel (food grade), monocoque frame
Independent top (removable), in stainless steel (food grade) AISI 304
Stainless steel racks and slides (antitilt), allowing the grids to be positioned as desired, deep-drawn inner bottom and rounded corners and angles (without rough edges)
Doors with ergonomic (not protruding) and reversible handle (see Kit TKDX-H or TKSX-H), closing by "triple chamber" and magnetic "pressure" seal (easy replacement, without tools), hinges (front fixing) with 100° stop, closing with automatic return
Front access to compressor unit, easy inspection
Compressor unit in climate class 5 (40°C Temperature - 40% Humidity, incorporated in the cabinet (right), ventilated condenser.
Ventilated (side) evaporator (oversized), treated against salt and coating food acids, completely hidden (not visible)
Refrigerant gas R290.
Digital" electronic microprocessor (in closed box, 100% waterproof), with HACCP functions, front panel display with blue LED
Automatic defrosting of the evaporator (hot gas), number of defrostings factory program (can be modified as required)
Automatic condensate evaporation (hot gas)
CFC-free polyurethane insulation (60 mm)
The device is built in compliance with all applicable standards (CE).
Exceptional performance thanks to the forced piping of the refrigerated air, uniform temperature.
Delicate products 2 humidity levels.
Microprocessor (100% waterproof), with HACCP functions.
Group of type "monobloc", equipped with an air filter (washable).
Technical Specification
mm (W x D x H) : 1805 x 700 x 880/900 - T° : -2°+8° - kW (elec) : 0.36
Category: Diamond
Range: Refrigeration
Subrange: Refrigeration & Freezing Tables

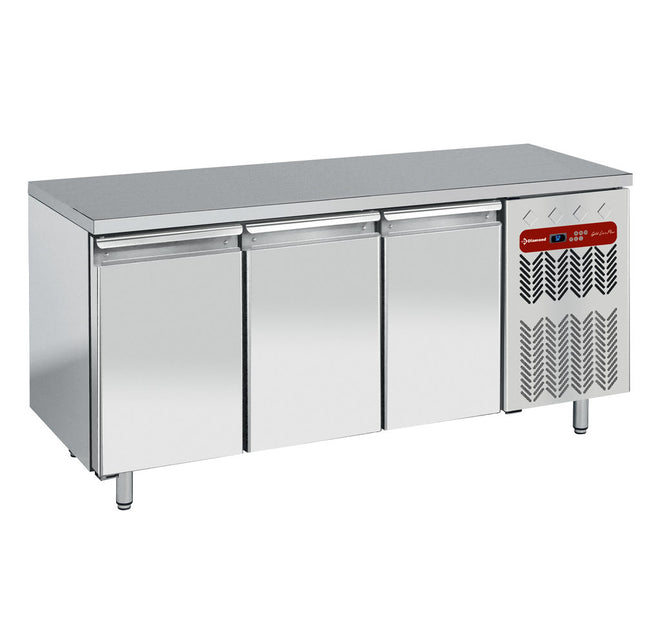

Family: Refrigerated 3 doors
Subfamily: 700 MM / GN 1/1
Line: GOLD LINE PLUS
Length: 1805 mm
Width: 700 mm
Height: 880/900 mm
Electric Power: 0.36 kW
Weight: 221 kg
Restock Info: Contact
Supplier Delivery Delay: 35
Availability: 3
Technical Specification
mm (W x D x H) : 1805 x 700 x 880/900 (+85) - T° : -20°-10° - kW (elec) : 0.73
Category: Good deals Diamond
Range: Refrigeration
Subrange: Refrigeration & Freezing Tables

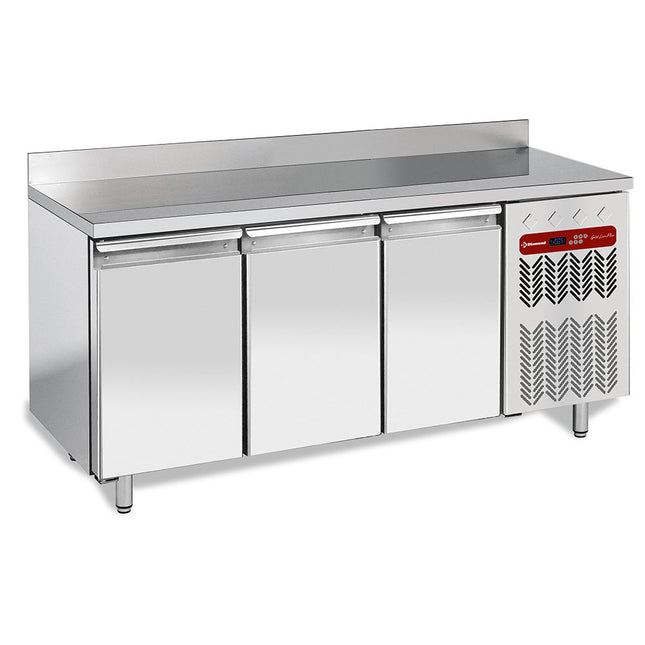

Family: Freezing 3 doors A / dos
Subfamily: 700 MM / GN 1/1
Line: GOLD LINE PLUS
Length: 1805 mm
Width: 700 mm
Height: 880/900 (+85) mm
Electric Power: 0.73 kW
Weight: 221 kg
Restock Info: /
Availability: 1
Energy class: D
Wall-mounted version with raised rear edge.
Included: 1 grid GN1/1 (530x325mm), per door
4 adjustable stainless steel feet.
Can be installed on a base.
NB We do not recommend equipping the drawer units
Interior and exterior made of AISI 304 stainless steel (food grade), monocoque frame
Independent top (removable), in stainless steel (food grade) AISI 304
Stainless steel racks and slides (antitilt), allowing the grids to be positioned as desired, deep-drawn inner bottom and rounded corners and angles (without rough edges)
Doors with ergonomic (not protruding) and reversible handles (see Kit, TKDX-H or TKSX-H), closing by "triple chamber" and magnetic "pressure" seal (easy replacement, without tools), hinges (front fixing) with 100° stop, closing with automatic return, counter door with heating resistance
Front access to compressor unit, easy inspection
Compressor unit in climate class 5 (40°C Temperature - 40% Humidity), incorporated in the cabinet (right), ventilated condenser.
Ventilated (side) evaporator (oversized), treated against salt and coating food acids, completely hidden (not visible)
Refrigerant gas R290.
Digital" electronic microprocessor (in closed box, 100% waterproof), with HACCP functions, front panel display with blue LED
Automatic defrosting of the evaporator (hot gas), number of defrostings factory program (can be modified as required)
Automatic condensate evaporation (hot gas)
CFC-free polyurethane insulation (60 mm)
The device is built in compliance with all applicable standards (CE).
NB No possibility of mounting drawers
Exceptional performances thanks to the forced piping of the refrigerated air at a uniform temperature.
Monobloc" type group, equipped with an air filter (washable).
Microprocessor (100% waterproof), with HACCP functions.
Technical Specification
mm (W x D x H) : 1805 x 700 x 880/900 (+85) - T° : -20°-10° - kW (elec) : 0.73
Category: Diamond
Range: Refrigeration
Subrange: Refrigeration & Freezing Tables
Family: Freezing 3 doors A / dos
Subfamily: 700 MM / GN 1/1
Line: GOLD LINE PLUS
Length: 1805 mm
Width: 700 mm
Height: 880/900 (+85) mm
Electric Power: 0.73 kW
Weight: 221 kg
Restock Info: Contact
Supplier Delivery Delay: 35
Availability: 1
Energy class: D
Included: 1 grid GN1/1 (530x325mm), per door
4 adjustable stainless steel feet.
Can be installed on a base.
NB We do not recommend equipping the drawer units
Interior and exterior made of AISI 304 stainless steel (food grade), monocoque frame
Independent top (removable), in stainless steel (food grade) AISI 304
Stainless steel racks and slides (antitilt), allowing the grids to be positioned as desired, deep-drawn inner bottom and rounded corners and angles (without rough edges)
Doors with ergonomic (not protruding) and reversible handles (see Kit, TKDX-H or TKSX-H), closing by "triple chamber" and magnetic "pressure" seal (easy replacement, without tools), hinges (front fixing) with 100° stop, closing with automatic return, counter door with heating resistance
Front access to compressor unit, easy inspection
Compressor unit in climate class 5 (40°C Temperature - 40% Humidity), incorporated in the cabinet (right), ventilated condenser.
Ventilated (side) evaporator (oversized), treated against salt and coating food acids, completely hidden (not visible)
Refrigerant gas R290.
Digital" electronic microprocessor (in closed box, 100% waterproof), with HACCP functions, front panel display with blue LED
Automatic defrosting of the evaporator (hot gas), number of defrostings factory program (can be modified as required)
Automatic condensate evaporation (hot gas)
CFC-free polyurethane insulation (60 mm)
The device is built in compliance with all applicable standards (CE).
NB No possibility of mounting drawers
Exceptional performances thanks to the forced piping of the refrigerated air at a uniform temperature.
Monobloc" type group, equipped with an air filter (washable).
Microprocessor (100% waterproof), with HACCP functions.
Technical Specification
mm (W x D x H) : 1805 x 700 x 880/900 - T° : -20°-10° - kW (elec) : 0.73
Category: Diamond
Range: Refrigeration
Subrange: Refrigeration & Freezing Tables

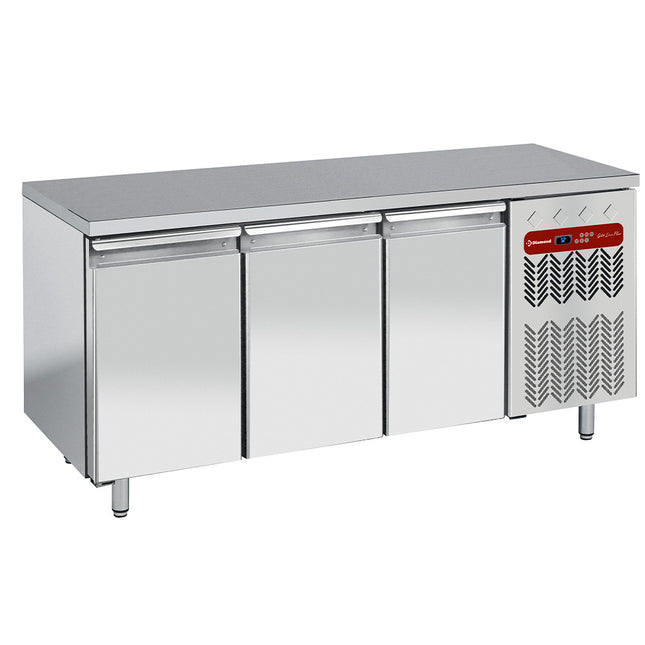

Family: Freezing 3 doors
Subfamily: 700 MM / GN 1/1
Line: GOLD LINE PLUS
Length: 1805 mm
Width: 700 mm
Height: 880/900 mm
Electric Power: 0.73 kW
Weight: 221 kg
Restock Info: Contact
Supplier Delivery Delay: 35
Availability: 1
Energy class: A
Refrigeration unit positioned on the left
Included: 1 grid GN1/1 (530x325mm), per door
4 adjustable stainless steel feet.
Can be installed on a base.
Interior and exterior made of AISI 304 stainless steel (food grade), monocoque frame
Independent top (removable), in stainless steel (food grade) AISI 304
Stainless steel racks and slides (antitilt), allowing the grids to be positioned as desired, deep-drawn inner bottom and rounded corners and angles (without rough edges)
Doors with ergonomic (not protruding) and reversible handle (see Kit TKDX-H or TKSX-H), closing by "triple chamber" and magnetic "pressure" seal (easy replacement, without tools), hinges (front fixing) with 100° stop, closing with automatic return
Front access to compressor unit, easy inspection
Compressor unit in climate class 5 (40°C Temperature - 40% Humidity, incorporated in the cabinet (right), ventilated condenser.
Ventilated (side) evaporator (oversized), treated against salt and coating food acids, completely hidden (not visible)
Refrigerant gas R290.
Digital" electronic microprocessor (in closed box, 100% waterproof), with HACCP functions, front panel display with blue LED
Automatic defrosting of the evaporator (hot gas), number of defrostings factory program (can be modified as required)
Automatic condensate evaporation (hot gas)
CFC-free polyurethane insulation (60 mm)
The device is built in compliance with all applicable standards (CE).
Exceptional performance thanks to the forced piping of the refrigerated air, uniform temperature.
Delicate products 2 humidity levels.
Microprocessor (100% waterproof), with HACCP functions.
Group of type "monobloc", equipped with an air filter (washable).
Technical Specification
mm (W x D x H) : 1355 x 700 x 880/900 - T° : -2°+8° - kW (elec) : 0.36
Category: Diamond
Range: Refrigeration
Subrange: Refrigeration & Freezing Tables
Family: Refrigerated 2 doors
Subfamily: 700 MM / GN 1/1
Line: GOLD LINE PLUS
Length: 1355 mm
Width: 700 mm
Height: 880/900 mm
Electric Power: 0.36 kW
Weight: 173 kg
Restock Info: /
Supplier Delivery Delay: 35
Availability: 0
Energy class: A
Refrigeration unit positioned on the left.
Wall-mounted version with raised rear edge.
Included: 1 grid GN1/1 (530x325mm), per door.
4 adjustable stainless steel feet.
Can be installed on a base.
Interior and exterior made of AISI 304 stainless steel (food grade), monocoque frame
Independent top (removable), in stainless steel (food grade) AISI 304
Stainless steel racks and slides (antitilt), allowing the grids to be positioned as desired, deep-drawn inner bottom and rounded corners and angles (without rough edges)
Doors with ergonomic (not protruding) and reversible handle (see Kit TKDX-H or TKSX-H), closing by "triple chamber" and magnetic "pressure" seal (easy replacement, without tools), hinges (front fixing) with 100° stop, closing with automatic return
Front access to compressor unit, easy inspection
Compressor unit in climate class 5 (40°C Temperature - 40% Humidity, incorporated in the cabinet (right), ventilated condenser.
Ventilated (side) evaporator (oversized), treated against salt and coating food acids, completely hidden (not visible)
Refrigerant gas R290.
Digital" electronic microprocessor (in closed box, 100% waterproof), with HACCP functions, front panel display with blue LED
Automatic defrosting of the evaporator (hot gas), number of defrostings factory program (can be modified as required)
Automatic condensate evaporation (hot gas)
CFC-free polyurethane insulation (60 mm)
The device is built in compliance with all applicable standards (CE).
Exceptional performance thanks to the forced piping of the refrigerated air, uniform temperature.
Delicate products, 2 humidity levels.
Microprocessor (100% waterproof), with HACCP functions.
Group of type "monobloc", equipped with an air filter (washable).
Technical Specification
mm (W x D x H) : 1355 x 700 x 880/900(+85) - T° : -2°+8° - kW (elec) : 0.36
Category: Diamond
Range: Refrigeration
Subrange: Refrigeration & Freezing Tables
Family: Refrigerated 2 doors A / dos
Subfamily: 700 MM / GN 1/1
Line: GOLD LINE PLUS
Length: 1355 mm
Width: 700 mm
Height: 880/900(+85) mm
Electric Power: 0.36 kW
Weight: 173 kg
Restock Info: /
Supplier Delivery Delay: 35
Availability: 0
Energy class: A
Sink 300x330xh200 mm built into the top (on the right), equipped with siphon, strainer, and overflow drain (NB: tap on request, hole on the top – Ø 33 mm)
“Wall” version with raised rear edge
Supplied with: 1 GN1/1 grid (530x325 mm) per door
4 adjustable stainless steel feet
Can be installed on a base.
Interior and exterior made of AISI 304 stainless steel (food-grade), monocoque frame
Removable top in AISI 304 stainless steel
Stainless steel anti-tilt shelf supports and slides, freely positionable grids, pressed inner bottom with rounded corners (no sharp edges)
Doors with ergonomic (flush) handles, reversible (see Kit TKDX-H or TKSX-H), triple-chamber magnetic pressure gasket (easily replaceable without tools), front-mounted hinges with 100° stop, self-closing system
Front access to compressor unit for easy inspection
Compressor group climate class 5 (40°C – 40% RH), integrated into the unit (right side), ventilated condenser
Oversized lateral ventilated evaporator, coated against salt and food acids, fully hidden
Refrigerant gas R290
Digital microprocessor (in watertight box), HACCP functions, LED display on the front
Automatic hot gas evaporator defrosting (factory-set, programmable)
Automatic hot gas condensate evaporation
60 mm CFC-free polyurethane insulation
CE-compliant.
PLUS :
Exceptional performance thanks to forced air circulation, uniform temperature
Two humidity levels for delicate products
Fully waterproof microprocessor with HACCP
Monoblock group with washable air filter.
Technical Specification
mm (W x D x H) : 1355 x 700 x 880/900(+85) - T° : -2°+8° - kW (elec) : 0.36
Category: Diamond
Range: Refrigeration
Subrange: Refrigeration & Freezing Tables
Family: Refrigerated 2 doors A / dos
Subfamily: 700 MM / GN 1/1 + SINK
Line: GOLD LINE PLUS
Length: 1355 mm
Width: 700 mm
Height: 880/900(+85) mm
Electric Power: 0.36 kW
Weight: 173 kg
Restock Info: /
Supplier Delivery Delay: 35
Availability: 0
