Excellent product visibility

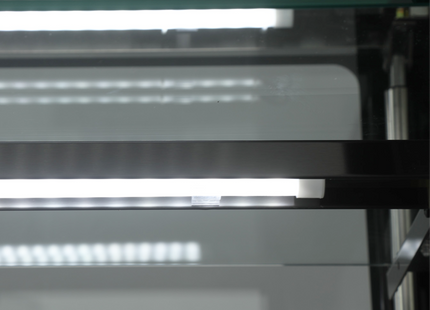

LED light under each shelf
Temperature Class 3M1
Front glass hinges forward if required
Flat top/glass top
Rear glass sliding doors
Digital controller and temperature display

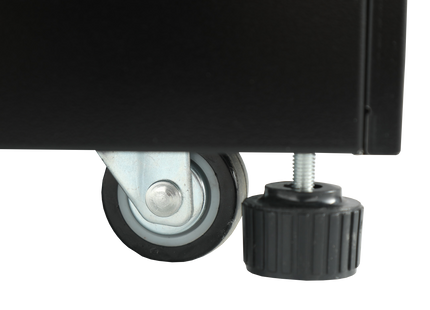

Adjustable feet and castors

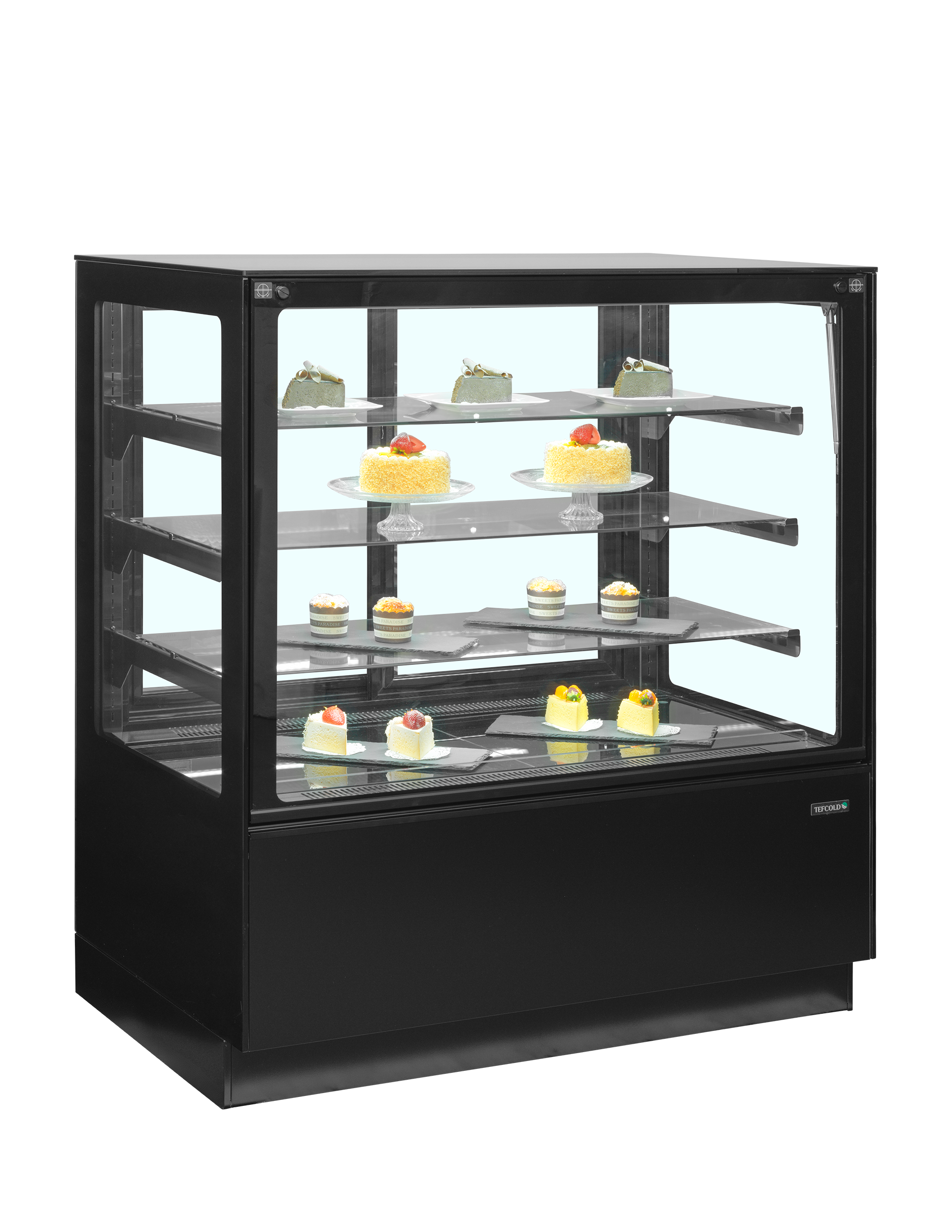

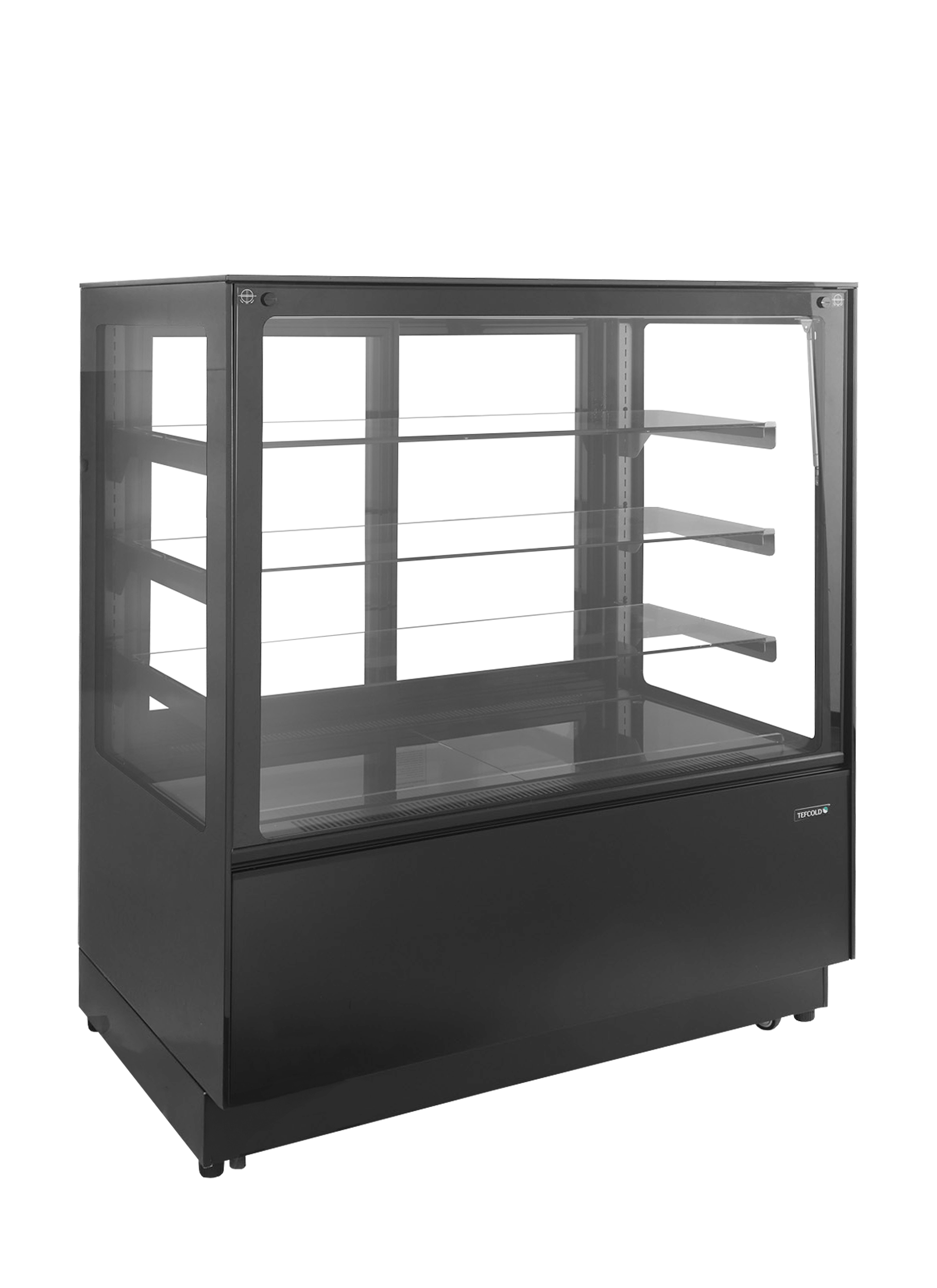

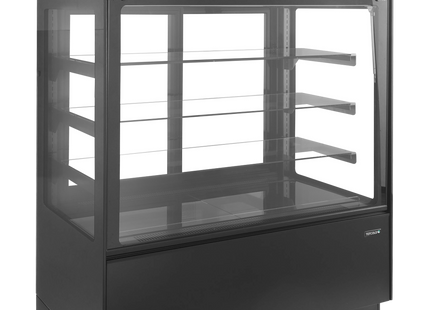

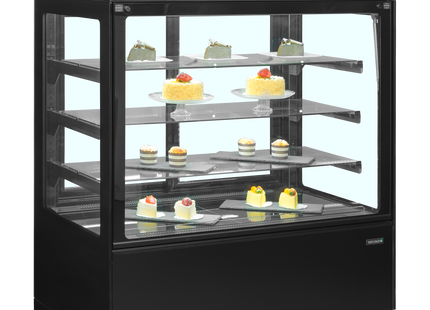

Easy to clean condenser filterThe PDA3-CTF range of refrigerated display counters has a flat glass structure, where the front hinges forward for easy cleaning. It is a premium design made with high quality materials and comes in several sizes. It offers features such as glass shelves with LED lighting underneath, antimist front glass, and an efficient ventilated cooling system.
Technical specifications
Measures and Content
-
Gross / Net Weight:
285 / 213 kg
-
40ft Container Load :
23 pcs
-
Gross / Net Volume:
530 / 338 l
-
Climate Class:
3
Design and Material
-
Exterior Finish:
Black / Glass
-
Interior Finish:
Stainless steel / Glass
-
Door No & Type:
2 sliding glass doors
-
Door Reversible:
Yes
-
Shelf Dimensions:
1116 x 400 mm
-
Interior Light:
LED
-
Castors:
4 wheels
Cooling and Functions
-
Type of Controller:
Electronic
-
Type of Defrost:
Automatic
-
Refrigerant:
R290
-
Refrigerant Charge:
115 g
Power and Consumption
-
Input Power:
610 W
-
Voltage / Frequency:
220-240/50 V/Hz
-
Noise Level:
65 dB(A)
-
Energy Class:
B
-
Annual Energy Cons.:
2091 kWh/year
-
Energy Consumption:
5.73 kWh/24h
-
EEI:
14.5 %
Dimensions
-
External Dimension (WxDxH):
1200 x 750 x 1360
mm
-
Internal Dimension (WxDxH):
1146 x 600 x 808 mm
-
Packed Dimension (WxDxH):
1280 x 820 x 1475 mm
Other
-
GTIN / EAN:
5708181756277
-
Temperature Range:
-1 to +5 °C
-
Shelves No & Type:
3 glass shelves + base
-
Total Display Area:
2.43 m²
-
Thermometer:
Yes
-
EPREL No:
2427352
