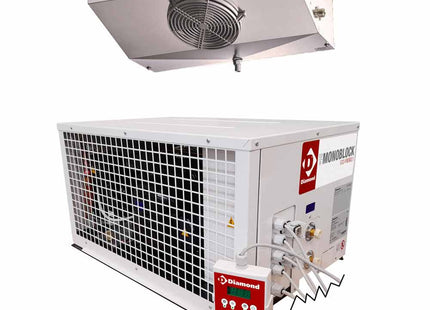

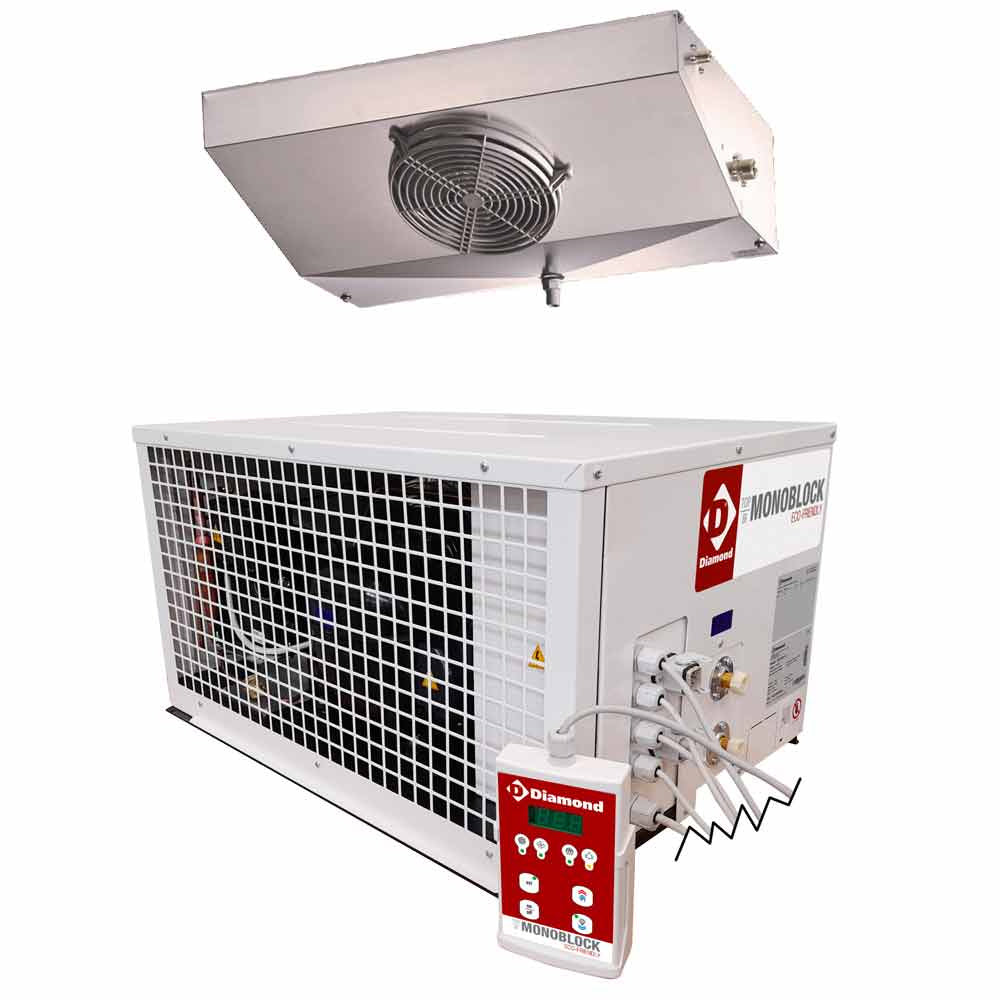

Refrigerant unit "By-block" T° -5°+5°

Description

  • Cooling capacity 981 (W/f) for room volume 6,2 m³ / 6200 Lit (T° internal 0° C & T° external +32° C).
  • Refrigerant expansion by capillary.



  • Bi-block" refrigeration units.
  • Due to its design, the condensing unit is suitable for outdoor installation and can be placed anywhere, floor, ceiling, wall,...
  • Delivered with 2 wall brackets as standard.
  • Pipes (pre-loaded) and cables are supplied for connection within a radius of 5 meters (10 meters optional).
  • All units are supplied as standard with a high pressure switch and KVL valve, as well as cables for door and light microswitches.
  • Control panel with separate touch-sensitive keys, connected to the unit by a 10 m cable
  • Automatic defrosting by electric resistance, water flow located below the evaporator. The evaporator drain pipe is equipped with a resistance to prevent ice formation.
  • Unit certified in climatic class 5 (40°C Temperature - 40% Humidity).
  • Refrigerant gas R452a.
  • Window lights delivered as standard with micro-switch for door.

INFO:
Attention: As standard, the ideal ambient operating temperature must not be lower than 10°C. If this is not the case, you must provide compressor preheating (H-PR-R), a pressure switch for the condenser fan (H-PVC-R) and a heated electrical panel (H-TEC-R). In this case, the operating temperature cannot be lower than -5°C.

PLUS:

  • Easily removable panels for easy access in case of intervention.
  • Defrosting by electric resistance.
  • All units are supplied with a high pressure switch as standard. The negative units are equipped with a thermostatic valve.

Technical Specification

  • mm (W x D x H) : 700&666 x 490&433 x 380&188 - T° : -5°+5° - kW (elec) : 0.81
  • Category: Diamond
  • Range: Refrigeration
  • Subrange: Cold & freezing rooms
  • Family: Groupes with 2 unités séparés
  • Subfamily: T°-5° +5°
  • Line: BI-BLOCK
  • Length: 700&666 mm
  • Width: 490&433 mm
  • Height: 380&188 mm
  • Electric Power: 0.81 kW
  • Weight: 73 kg
  • Restock Info: 18
  • Supplier Delivery Delay: 42
  • Availability: 0
