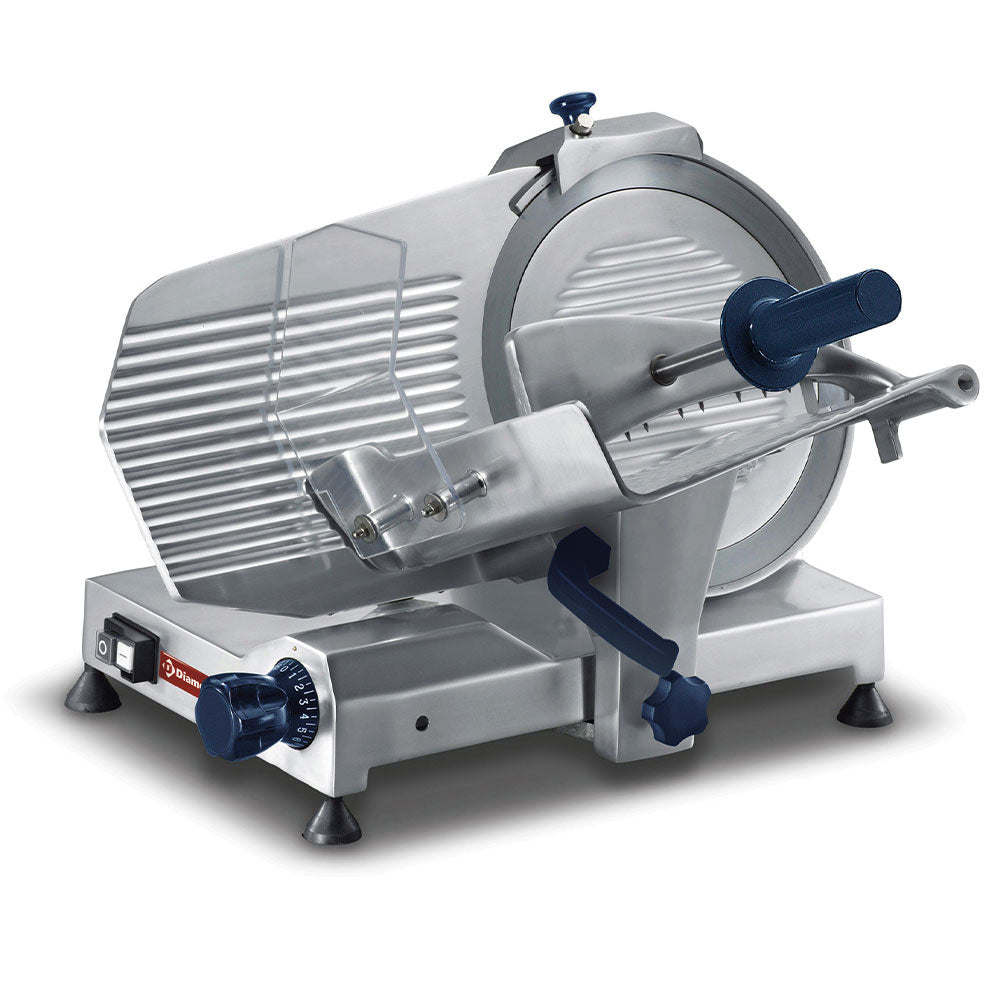

- Compact, but with great cutting capacity, made from anodised and polished aluminium alloy.
- Chrome-plated and ground tempered steel blade, 25° tilt, fixed protection ring and blade cover with microswitch (100% safety).
- Reinforced gauge plate, max. cutting capacity: 250xh185 mm (Ø 210mm), thickness 0-13mm.
- Stainless steel ball-bearing carriage, easy, silent sliding, Plexiglas protection as standard.
- Stainless steel screws and deflector.
- Integrated aluminium sharpener with 2 emery wheels.
- Ventilated motor, lower electrical parts fitted with protective cover.
- Low-voltage 24V controls, IP44 protection, NVR (No-Voltage Release) to prevent unintentional starting.
- Adjustable cylinders.
- Built to comply with current CE standards.
Important: easy and safe cleaning thanks to:
1°) the generous space between the blade and the chassis.
2°) the ‘safe unhooking’ device, enabling the carriage to be removed, with the blade secured by the stop in position ‘0’.
3°) the removable blade cover.
4°) the protective ring fitted around the blade.
Technical Specification
- mm (W x D x H) : 610 x 535 x 510 - kW (elec) : 0.21
- Category: Diamond
- Range: Dynamic Preparation
- Line: BLUE LINE
- Length: 610 mm
- Width: 535 mm
- Height: 510 mm
- Electric Power: 0.21 kW
- Weight: 26 kg
