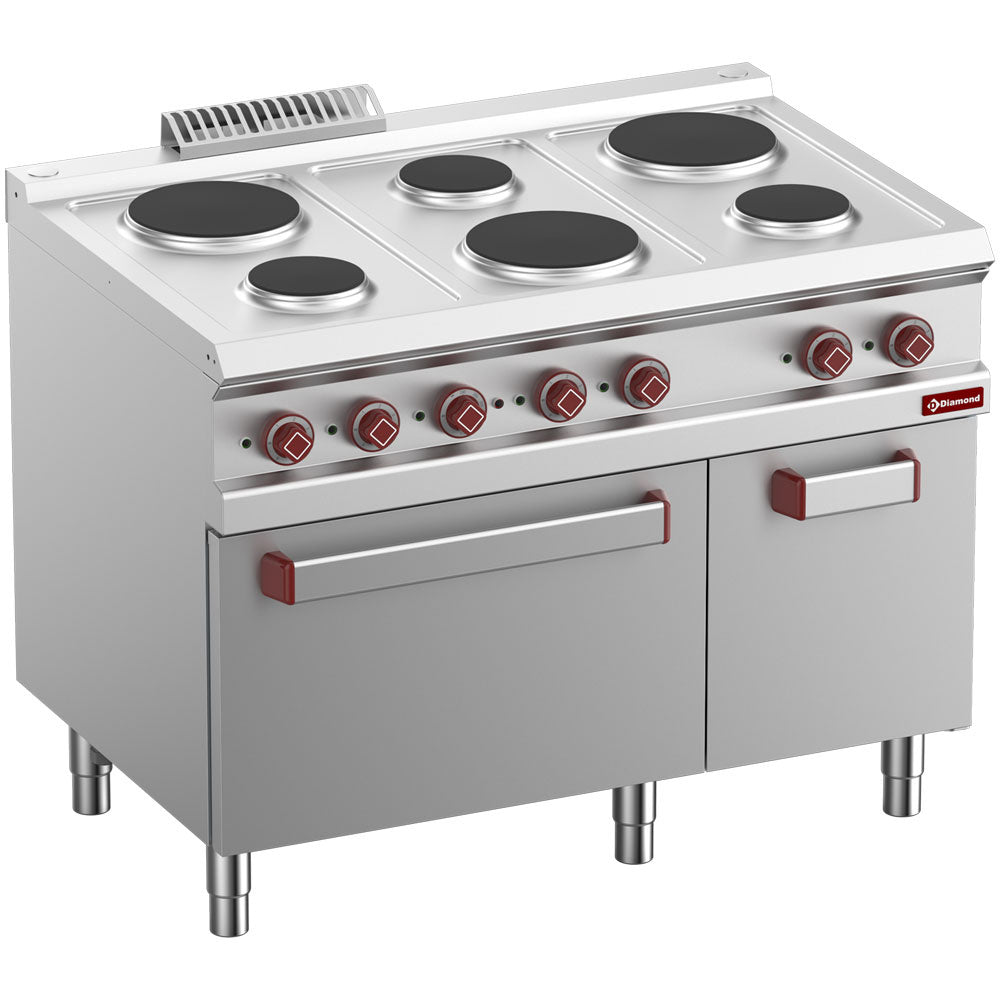

- 6 hobs (3x 1.5kW Ø 150mm and 3x 2.6kW Ø 220mm).
- Electric oven (5,3 kW) dim. 560x660xh310 mm, grill.
- Neutral cabinet GN1/1 dimensions 340x650xh350 mm.
- Made of stainless steel AISI 304, stainless steel adjustable feet.
- Deep-drawn and watertight top (15/10 mm) in AISI 304 stainless steel, IPX5 water resistance.
- Stainless steel AISI 304 rear chimney.
- Cast-iron plates, with stainless steel sealing edge and overheating safety device.
- Heating power regulated by a 7-position switch.
- Electric oven GN 2/1, heating by stainless steel heating elements, placed in the vault and under the oven.
- Oven chamber and double-walled door (deep-drawn) are made of stainless steel and fitted with thermal insulation, side guides on 3 levels. Oven door on spring hinges, stainless steel handle.
- Oven temperature regulation from 125°C to 300°C, by thermostat. Grill with independent regulation, equipped with safety thermostat, supplied with 1 grid.
PLUS:
Possibility of 700+700 "BACK to BACK" or in combination with the new OPTIMA 900 EVO 700+900 range. Top in 15/10 mm thick AISI 304 stainless steel, front edge with drip stop, deep-drawn, watertight worktops, rounded corners inside the tanks, ‘high technology’ quality components. A perfect finish, with attention to detail, superb design and an easy alignment of the modules by the "HEAD to HEAD" connection.
Technical Specification
- mm (W x D x H) : 1100 x 700 x 850/920 - kW (elec) : 17.6 - Voltage : 400-230/3N 50-60Hz
- Category: Diamond
- Range: Cooking
- Subfamily: ELECTRIC
- Line: OPTIMA 700 EVO
- Length: 1100 mm
- Width: 700 mm
- Height: 850/920 mm
- Electric Power: 17.6 kW
- Voltage: 400-230/3N 50-60Hz
- Weight: 136 kg
