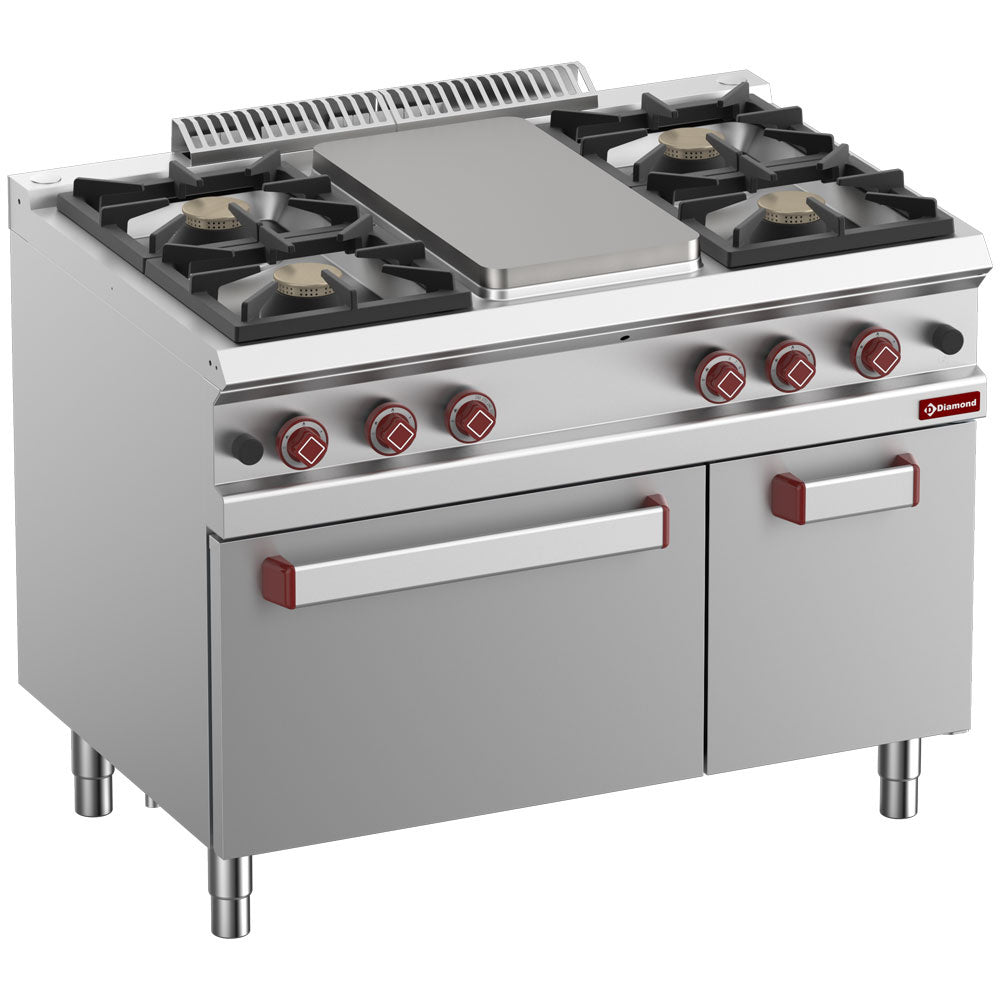

- 4 burners (4x 7 kW) High Efficiency & Flexibility.
- Plate to simmer (5.5 kW), dimensions 320x585 mm.
- Gas oven (6 kW), dimensions 560x660xh310 mm.
- Neutral cabinet GN 1/1 dimensions 340x650xh350 mm.
- Made of stainless steel AISI 304, stainless steel adjustable feet.
- Deep-drawn and watertight top (15/10 mm) in AISI 304 stainless steel, integrated liquid collection basins, IPX5 water resistance.
- Rear chimney in stainless steel AISI 304.
- Oven enclosure and double-walled door (deep-drawn) made of stainless steel and provided with thermal insulation, side guides on 3 levels.
- Oven door on spring hinges, stainless steel handle.
- Sealed cast-iron open-fire burners, brass crown (very high efficiency). Burner from 1.5 to 7 kW regulated by gas valve, pilot light and thermocouple safety device, easy front access for maintenance.
- Upper grids in enamelled cast iron, dimensions 330x300 mm (dishwasher safe).
- Plate to simmer in cast iron, gas heating by a stabilized flame burner. Regulation by a gas thermostatic valve, piezoelectric ignition and safety by thermocouple.
- Gas oven GN 2/1, heating by stainless steel burners with stabilized flame. Oven temperature regulation from 150°C to 290°C, by a thermostatic gas valve, piezoelectric ignition and safety thermocouple, standard included 1 grid.
ADVANTAGE :
Combining power, efficiency and flexibility, our H.E.F. (high efficiency & flexibility) burners will easily adapt to all types of professional cookware. Very high output burners (7 kW), interchangeable as required, brass crown, automatic ignition by pilot light (100% protected) and safety by thermocouple.
ADVANTAGE :
Combining power, efficiency and flexibility, our H.E.F. (high efficiency & flexibility) burners will easily adapt to all types of professional cookware. Very high output burners (7 kW), interchangeable as required, brass crown, automatic ignition by pilot light (100% protected) and safety by thermocouple.
Technical Specification
- mm (W x D x H) : 1100 x 700 x 850/920 - kcal/h (gas) : 33970
- Category: Diamond
- Range: Cooking
- Subfamily: GAS
- Line: OPTIMA 700 EVO
- Length: 1100 mm
- Width: 700 mm
- Height: 850/920 mm
- Weight: 140 kg
