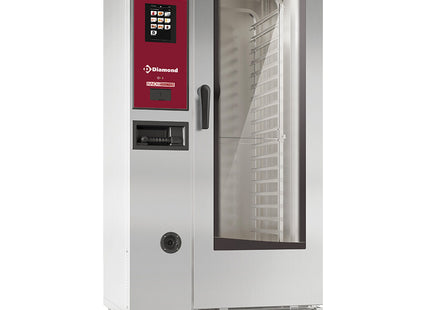

Gas oven "TOUCH" boiler steam and convection 20xGN1/1+ Cleaning

Description

  • Oven "LENGTHWISE", plates GN 1/3, 1/2, 2/3 and 1/1.
  • Load capacity 100Kg.
  • 1 transfer trolley and 1 removable loader less than 65mm "anti-tipping".
  • Core temperature probe.
  • Concealed hand shower with hose reel.
  • Trolley and loader 600x400 EURONORM (on request ref: AC/2P2...).
  • Bottom closing plate integrated in the door.
  • Adjustable stainless steel feet.
  • NB: delivered without grids and without GN plates.



  • Inner and outer construction in stainless steel AISI 304, thermal insulation in ceramic fiber, control panel with stainless steel filter, preventing soiling of the components (ventilated panel), stainless steel feet. Cooking chamber: fully welded, completely watertight, rounded corners and edges without any roughness. Sealing gasket fixed on the front of the cooking chamber. Double-drawn bottom that separates condensation from the grease towards the drain. Standard steam condenser reducing the temperature of the condensate at the drain and limiting the steam outlet when the door is opened. Easily removable platinum door structure. Easily removable heat diffusers. Large motorized door allowing all types of cooking. Unique design of the enclosure coupled with a side fan in AISI 304 stainless steel (CCRR), guarantees uniform heat management and distribution.
  • Triple-glazed door: ergonomic and heat-insulated handle, automatic closing with two-step safety opening to protect against steam release, integrated condensation collector in the door, inner glass mounted on hinges to facilitate cleaning and ensure perfect hygiene. Air circulation between the glass panes ensures better thermal insulation. Micro-switch to stop the fan when the door is opened. Side LED lighting provides full visibility inside the chamber. Gas heating: by pulsed burners and grooved heat exchangers (increase efficiency and allow up to 20% gas savings and a 20% reduction in harmful emissions). Steam generation: by external gas boiler (AISI 304 stainless steel). Control panel: 7" "TOUCH SCREEN" with front access, easy and fast maintenance. Protection rating: IPX5 (against water jets). Certification: "Energy Star".

Optional: Communication module for oven & "TOUCH" cell (see: AC/CMAF-X).

PLUS Version At :

  • Certification "Energy Star".
  • Triple-glazed door
  • Optimized water consumption
  • Steam generated by boiler (100% saturation).
  • TOUCH SCREEN controls 7" touch screen and high definition color, allowing the user to customize all the main functions of the oven.
  • Favourites management on the home screen.
  • Audible and visual alert for end of program.
  • 3 baking modes (automatic, programmed, manual).
  • Humidification regulation from 1% to 100% thanks to its LAMBDA probe (CCHY).
  • A real control of humidity (exclusive patent) also allowing great savings in water consumption "WATER SAVING".
  • Memory (pre-programmable) for 1000 recipes, 16 different cooking phases (choice of 16 different successive cooking types), "AUTOMATIC MODE" automatic cooking according to product type, weight and quantity, 11 special cycles: "LOW T° COOKING" (CCBT) low temperature cooking (T° below 100°C), "BANQUETING" regeneration function, "FRESH PASTA PASTEURIZATION" pasteurization of fresh pasta, "DEHYDRATING" dehydration, etc.
  • 7 speed controls.
  • Core probe (6 sensors).
  • Automatic preheating and rapid cooling of the cooking chamber (CCRR).
  • USB port for storage and transfer of various cooking programs (HACCP data management).
  • "AUTO-CLEANING" integrated automatic cleaning device (CCNA) with boiler descaling, 4 different cycles to choose from, "ECONOMIZER" water and detergents saving function.

Optional: Communication module for oven & "TOUCH" cell (see: AC/CMAF-X).

ADVANTAGE - TYPE of COOKING :

  • Convection from 25°C to 300°C.
  • Steam 100°C.
  • Mixed convection/steam from 25°C to 250°C.
  • Low temperature cooking from 25°C to 99°C.
  • Regeneration and temperature maintenance from 25°C to 250°C.

Technical Specification

  • mm (W x D x H) : 911 x 864 x 1794 - kcal/h (gas) : 46432 - kW (elec) : 1.8
  • Category: Diamond
  • Range: Cook & Chill
  • Subrange: Steam Ovens / Boiler & Convec
  • Family: TOUCH SCREEN
  • Subfamily: 20x GN 1/1 - GAS
  • Line: At SERIES
  • Length: 911 mm
  • Width: 864 mm
  • Height: 1794 mm
  • Electric Power: 1.8 kW
  • Weight: 337 kg
  • Restock Info: /
  • Supplier Delivery Delay: 42
  • Availability: 0

Read more

Product form

Gas oven "TOUCH" boiler steam and convection 20xGN1/1+ Cleaning

Out of stock, 1-3 weeks

Oven "LENGTHWISE", plates GN 1/3, 1/2, 2/3 and 1/1. Load capacity 100Kg. 1 transfer trolley and 1 removable loader less... Read more

€32.042,00

    • Guaranteed secure & safe checkout.

      shop pay
    • Fast shipping for orders on stock
    • Directly from the manufacturer to you

    Description

    • Oven "LENGTHWISE", plates GN 1/3, 1/2, 2/3 and 1/1.
    • Load capacity 100Kg.
    • 1 transfer trolley and 1 removable loader less than 65mm "anti-tipping".
    • Core temperature probe.
    • Concealed hand shower with hose reel.
    • Trolley and loader 600x400 EURONORM (on request ref: AC/2P2...).
    • Bottom closing plate integrated in the door.
    • Adjustable stainless steel feet.
    • NB: delivered without grids and without GN plates.



    • Inner and outer construction in stainless steel AISI 304, thermal insulation in ceramic fiber, control panel with stainless steel filter, preventing soiling of the components (ventilated panel), stainless steel feet. Cooking chamber: fully welded, completely watertight, rounded corners and edges without any roughness. Sealing gasket fixed on the front of the cooking chamber. Double-drawn bottom that separates condensation from the grease towards the drain. Standard steam condenser reducing the temperature of the condensate at the drain and limiting the steam outlet when the door is opened. Easily removable platinum door structure. Easily removable heat diffusers. Large motorized door allowing all types of cooking. Unique design of the enclosure coupled with a side fan in AISI 304 stainless steel (CCRR), guarantees uniform heat management and distribution.
    • Triple-glazed door: ergonomic and heat-insulated handle, automatic closing with two-step safety opening to protect against steam release, integrated condensation collector in the door, inner glass mounted on hinges to facilitate cleaning and ensure perfect hygiene. Air circulation between the glass panes ensures better thermal insulation. Micro-switch to stop the fan when the door is opened. Side LED lighting provides full visibility inside the chamber. Gas heating: by pulsed burners and grooved heat exchangers (increase efficiency and allow up to 20% gas savings and a 20% reduction in harmful emissions). Steam generation: by external gas boiler (AISI 304 stainless steel). Control panel: 7" "TOUCH SCREEN" with front access, easy and fast maintenance. Protection rating: IPX5 (against water jets). Certification: "Energy Star".

    Optional: Communication module for oven & "TOUCH" cell (see: AC/CMAF-X).

    PLUS Version At :

    • Certification "Energy Star".
    • Triple-glazed door
    • Optimized water consumption
    • Steam generated by boiler (100% saturation).
    • TOUCH SCREEN controls 7" touch screen and high definition color, allowing the user to customize all the main functions of the oven.
    • Favourites management on the home screen.
    • Audible and visual alert for end of program.
    • 3 baking modes (automatic, programmed, manual).
    • Humidification regulation from 1% to 100% thanks to its LAMBDA probe (CCHY).
    • A real control of humidity (exclusive patent) also allowing great savings in water consumption "WATER SAVING".
    • Memory (pre-programmable) for 1000 recipes, 16 different cooking phases (choice of 16 different successive cooking types), "AUTOMATIC MODE" automatic cooking according to product type, weight and quantity, 11 special cycles: "LOW T° COOKING" (CCBT) low temperature cooking (T° below 100°C), "BANQUETING" regeneration function, "FRESH PASTA PASTEURIZATION" pasteurization of fresh pasta, "DEHYDRATING" dehydration, etc.
    • 7 speed controls.
    • Core probe (6 sensors).
    • Automatic preheating and rapid cooling of the cooking chamber (CCRR).
    • USB port for storage and transfer of various cooking programs (HACCP data management).
    • "AUTO-CLEANING" integrated automatic cleaning device (CCNA) with boiler descaling, 4 different cycles to choose from, "ECONOMIZER" water and detergents saving function.

    Optional: Communication module for oven & "TOUCH" cell (see: AC/CMAF-X).

    ADVANTAGE - TYPE of COOKING :

    • Convection from 25°C to 300°C.
    • Steam 100°C.
    • Mixed convection/steam from 25°C to 250°C.
    • Low temperature cooking from 25°C to 99°C.
    • Regeneration and temperature maintenance from 25°C to 250°C.

    Technical Specification

    • mm (W x D x H) : 911 x 864 x 1794 - kcal/h (gas) : 46432 - kW (elec) : 1.8
    • Category: Diamond
    • Range: Cook & Chill
    • Subrange: Steam Ovens / Boiler & Convec
    • Family: TOUCH SCREEN
    • Subfamily: 20x GN 1/1 - GAS
    • Line: At SERIES
    • Length: 911 mm
    • Width: 864 mm
    • Height: 1794 mm
    • Electric Power: 1.8 kW
    • Weight: 337 kg
    • Restock Info: /
    • Supplier Delivery Delay: 42
    • Availability: 0

    Read more
