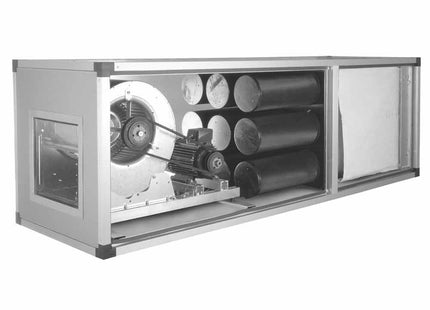

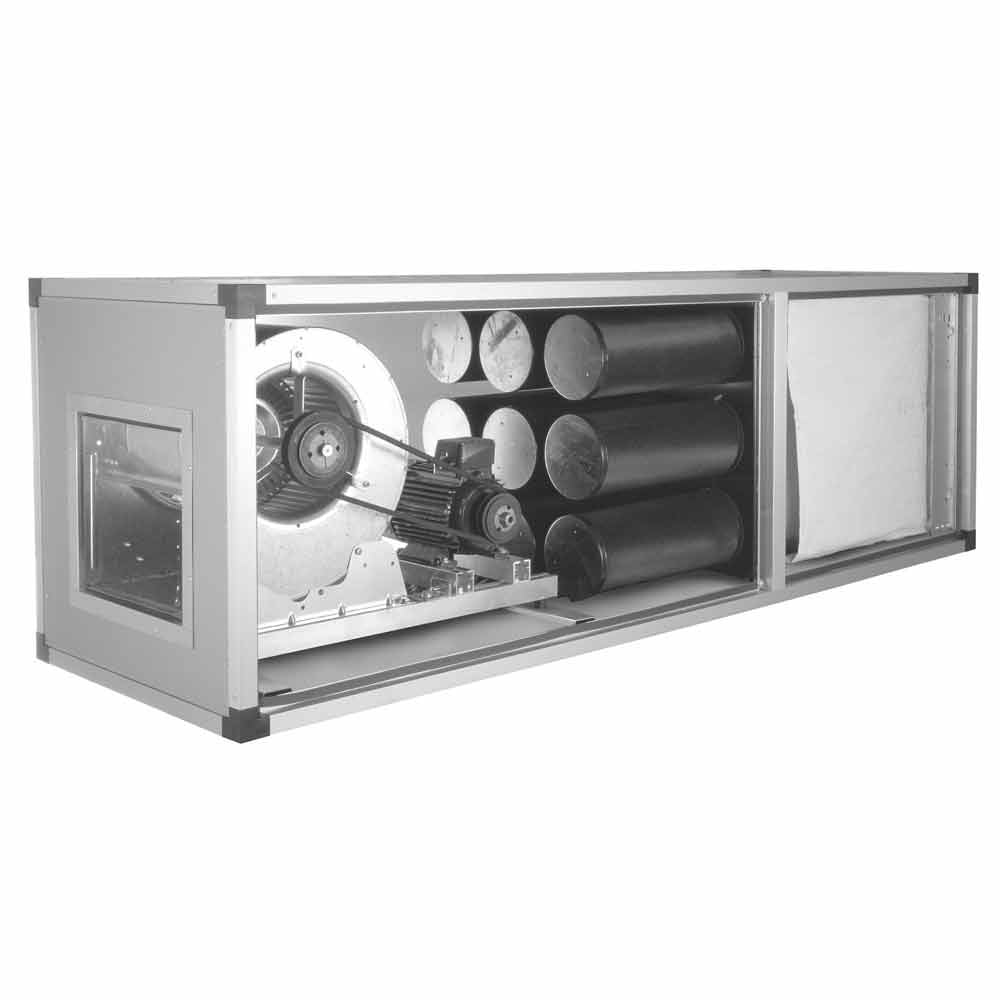

Diamond's Filtering Extraction Group is a high-performance ventilation solution designed for commercial kitchens. Constructed with durable aluminium profiles and isolated double-walled panels, this unit ensures efficient air extraction while maintaining a clean environment. The ventilator features a belt drive with two speed levels, allowing for optimal airflow control. Three double filtering systems provide enhanced filtration capabilities, ensuring the removal of airborne contaminants. Ideal for large commercial kitchens, hotels, or restaurants requiring reliable and efficient ventilation solutions.
Technical specifications
- Profile frame in aluminium.
- Panels with isolated double wall.
- Lateral inspection.
- Ventilator with belt drive, 2 speed levels.
- 3 double filtering.
Technical Specification
- mm (W x D x H) : 1280 x 2240 x 980 - kW (elec) : 3 - Voltage : 400/3N 50Hz
- Category: Diamond
- Range: Extraction - Ventilation
- Subfamily: ACTIVE CHARCOAL
- Length: 1280 mm
- Width: 2240 mm
- Height: 980 mm
- Electric Power: 3 kW
- Voltage: 400/3N 50Hz
- Weight: 400 kg
