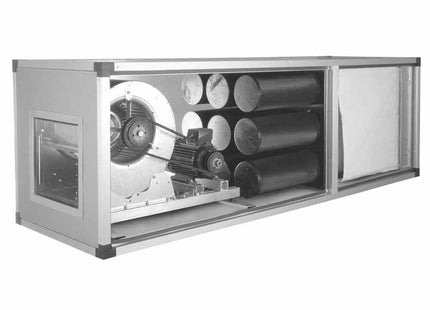

Diamond's filtering extraction group is designed for commercial kitchens that need a high-capacity and efficient extraction system. With a capacity to extract up to 10400 cubic metres per hour, this group is perfect for restaurants and hotels that need to serve large numbers of customers.
The compact design of this group makes it ideal for small kitchens or as an addition to existing equipment. Its functionality ensures that you can easily remove cooking fumes and odours, while its durability means that it will withstand heavy use.
Technical specifications
- Profile frame in aluminium.
- Panels with isolated double wall.
- Lateral inspection.
- Ventilator with belt drive, 2 speed levels.
- 3 double filtering.
Technical Specification
- mm (W x D x H) : 1280 x 2200 x 1280 - kW (elec) : 4.1 - Voltage : 230/3 50Hz
- Category: Diamond
- Range: Extraction - Ventilation
- Subfamily: ACTIVE CHARCOAL
- Length: 1280 mm
- Width: 2200 mm
- Height: 1280 mm
- Electric Power: 4.1 kW
- Voltage: 230/3 50Hz
- Weight: 450 kg
