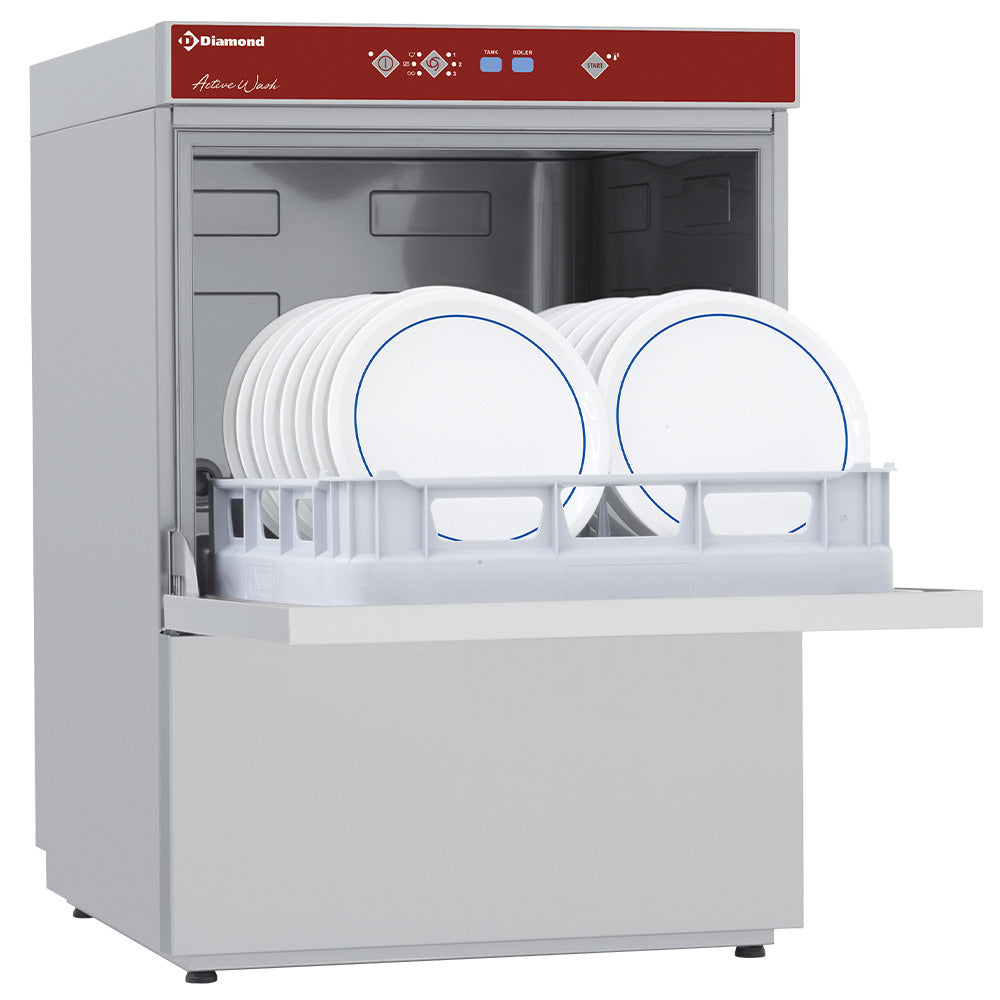

Dishwasher basket 500x500mm + Break Tank

Description

  • Realisation "double walled".
  • With anti-pollution device type AB (Break Tank), Including the rinsing pump (atmospheric boiler)
  • Standard with disharge pump.
  • Charging height dishes diam. 390mm (glass height 355mm)



  • From 60 till 24 baskets/hour, cycles 60'' - 120'' - 150 ''.
  • Washing arm and rinsing (upper and lower) rotating (lower in stainless steel).
  • Self cleaning sprinklers.
  • Double wall door, "stamped", "removable" waterproof seal.
  • Removable control panel.
  • Automatic filling of the tank.
  • Stamped basket runners, no roughness and no limestone scale.
  • Check valve. Hot water rinse, stainless steel boiler (6 Lit., 6 kW).
  • Washing pump in 230V/1N 50Hz.
  • Micro switch, when the door opens.
  • Safety thermostat.
  • Standard: 2 baskets, 1 goblet.
  • Manufactured in stainless steel AISI 304.
  • Fully "pressed" tank (15 Lit., 2,1 kW).
  • Stamped basket runners, no roughness and no limestone scale.
  • "Integrated" tank's filter in "cast" stainless steel.
  • "Peristaltic" dispenser of rinse product supplied as standard.
  • On request: "peristaltic" dosing kit of liquid detergent.
  • "Patented" pump filter allowing to conserve the washing water longer and at good temperature.
  • High output washing pump which guarantees high energy savings.
  • CSD digital control panel (soft touch).
  • EED energy saving.
  • TCD Device which permits to always rinse at 85°C.
  • DRD accelerated preheating phase.
  • DID automatic diagnostic in case of problems.
  • ADD display of boiler and tank temperature (HACCP conform)
  • CID door with automatic closure (Soft Contact).
  • NB: machines guaranteed for "osmosis" water supply.

ADVANTAGE - SAVE THE PLANET :
State-of-the-art technologies, energy-saving, energy-saving technologies, water and detergent, thanks to a more contained tank and its "patented" filter to keep the washing water at a good temperature , as well as a high efficiency wash pump (double flux).

BREAK TANK : The "break tank" is an AB type "anti-pollution" device (UK standards) 1) It prevents the tank water (with detergents) to flow back into the distribution system 2) Its pump guarantees a constant pressure during the whole rinsing, the drying and hygiene are guaranteed by a T° of 85°C... until the last drop of water!

Technical Specification

  • mm (W x D x H) : 600 x 630 x 830 - kW (elec) : 6.5 - Voltage : 400-230/3N 50Hz
  • Category: Diamond
  • Range: Washing
  • Subrange: Dishwashers
  • Family: Baskets 500x500 mm
  • Subfamily: DOUBLE SKIN / BREAK TANK
  • Line: ACTIVE WASH
  • Length: 600 mm
  • Width: 630 mm
  • Height: 830 mm
  • Electric Power: 6.5 kW
  • Voltage: 400-230/3N 50Hz
  • Weight: 64 kg
  • Restock Info: /
  • Supplier Delivery Delay: 35
  • Availability: 0

Read more

Product form

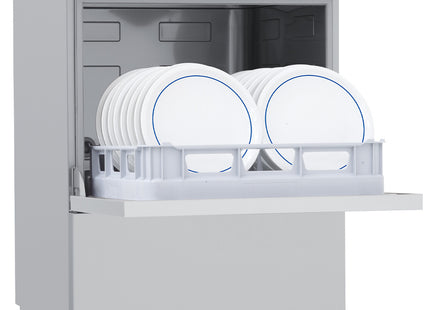

Dishwasher basket 500x500mm + Break Tank

Out of stock, 1-3 weeks

Realisation "double walled". With anti-pollution device type AB (Break Tank), Including the rinsing pump (atmospheric boiler) Standard with disharge pump.... Read more

€3.573,00 €2.967,00

Maxigastro - only for companies with VAT registration

To purchase from Maxigastro, you must have a VAT-registered business. We do not sell to private consumers.
You will be asked for your VAT registration number before payment.

    • Guaranteed secure & safe checkout.

      shop pay
    • Fast shipping for orders on stock
    • Directly from the manufacturer to you

    Description

    • Realisation "double walled".
    • With anti-pollution device type AB (Break Tank), Including the rinsing pump (atmospheric boiler)
    • Standard with disharge pump.
    • Charging height dishes diam. 390mm (glass height 355mm)



    • From 60 till 24 baskets/hour, cycles 60'' - 120'' - 150 ''.
    • Washing arm and rinsing (upper and lower) rotating (lower in stainless steel).
    • Self cleaning sprinklers.
    • Double wall door, "stamped", "removable" waterproof seal.
    • Removable control panel.
    • Automatic filling of the tank.
    • Stamped basket runners, no roughness and no limestone scale.
    • Check valve. Hot water rinse, stainless steel boiler (6 Lit., 6 kW).
    • Washing pump in 230V/1N 50Hz.
    • Micro switch, when the door opens.
    • Safety thermostat.
    • Standard: 2 baskets, 1 goblet.
    • Manufactured in stainless steel AISI 304.
    • Fully "pressed" tank (15 Lit., 2,1 kW).
    • Stamped basket runners, no roughness and no limestone scale.
    • "Integrated" tank's filter in "cast" stainless steel.
    • "Peristaltic" dispenser of rinse product supplied as standard.
    • On request: "peristaltic" dosing kit of liquid detergent.
    • "Patented" pump filter allowing to conserve the washing water longer and at good temperature.
    • High output washing pump which guarantees high energy savings.
    • CSD digital control panel (soft touch).
    • EED energy saving.
    • TCD Device which permits to always rinse at 85°C.
    • DRD accelerated preheating phase.
    • DID automatic diagnostic in case of problems.
    • ADD display of boiler and tank temperature (HACCP conform)
    • CID door with automatic closure (Soft Contact).
    • NB: machines guaranteed for "osmosis" water supply.

    ADVANTAGE - SAVE THE PLANET :
    State-of-the-art technologies, energy-saving, energy-saving technologies, water and detergent, thanks to a more contained tank and its "patented" filter to keep the washing water at a good temperature , as well as a high efficiency wash pump (double flux).

    BREAK TANK : The "break tank" is an AB type "anti-pollution" device (UK standards) 1) It prevents the tank water (with detergents) to flow back into the distribution system 2) Its pump guarantees a constant pressure during the whole rinsing, the drying and hygiene are guaranteed by a T° of 85°C... until the last drop of water!

    Technical Specification

    • mm (W x D x H) : 600 x 630 x 830 - kW (elec) : 6.5 - Voltage : 400-230/3N 50Hz
    • Category: Diamond
    • Range: Washing
    • Subrange: Dishwashers
    • Family: Baskets 500x500 mm
    • Subfamily: DOUBLE SKIN / BREAK TANK
    • Line: ACTIVE WASH
    • Length: 600 mm
    • Width: 630 mm
    • Height: 830 mm
    • Electric Power: 6.5 kW
    • Voltage: 400-230/3N 50Hz
    • Weight: 64 kg
    • Restock Info: /
    • Supplier Delivery Delay: 35
    • Availability: 0

    Read more
