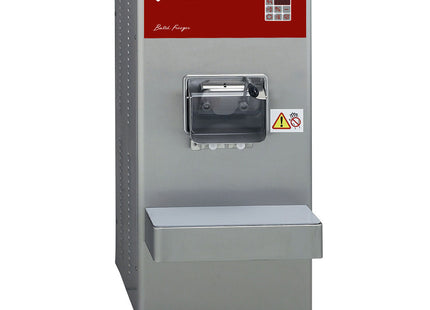

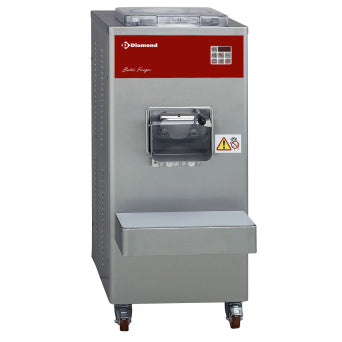

Diamond's Automatic Vertical Ice-Cream Turbine is a high-performance condenser designed for commercial kitchens. With a water condensing capacity of 80 liters/hour, this unit is perfect for ice cream production and other cold work applications. The turbine features automatic extraction and a compact design, making it easy to install and maintain. Its stainless steel construction ensures durability and resistance to corrosion.
Technical specifications
- Water condenser.
- Vertical turbine with automatic extraction.
- Minimum mixing capacity 7 lit. and maximum 12 lit.
- Noise level below 70 dB.
- Vertical evaporator cylinders for a larger exchange surface.
- Cycle with time control or temperature control.
- Exclusive distribution device.
- System self diagnosis.
- Cycle time: 8/12 min.
- Hourly production: 75 litres.
NB: mainly for cold work.
Technical Specification
- mm (W x D x H) : 490 x 700 x 1150 - kW (elec) : 7.5 - Voltage : 400/3N 50Hz
- Category: Diamond
- Range: Ice cream
- Subfamily: WATER CONDENSEUR
- Length: 490 mm
- Width: 700 mm
- Height: 1150 mm
- Electric Power: 7.5 kW
- Voltage: 400/3N 50Hz
- Weight: 260 kg
