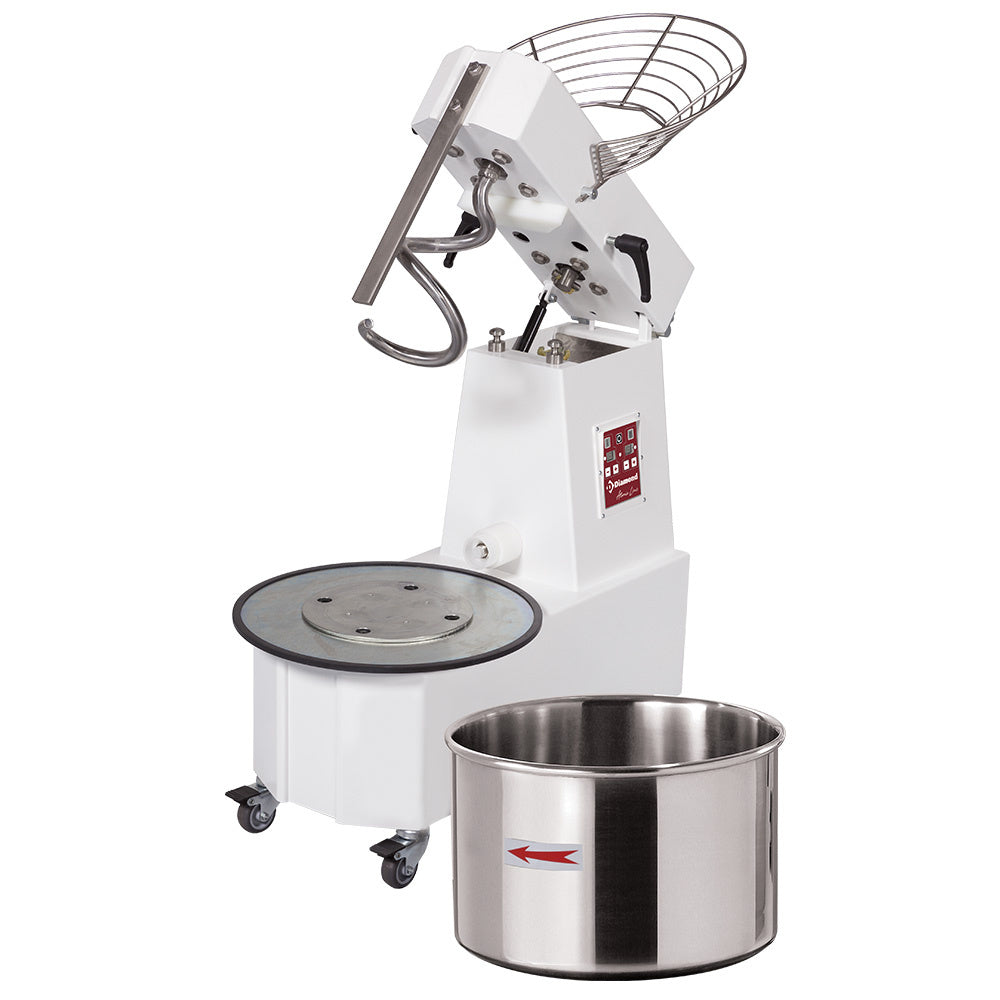

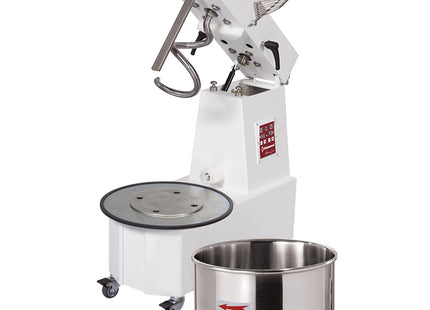

Spiral mixer 33 liters tilting head, removable bowl, 2 speeds, - Automatic, digital, on wheels

Description

  • Tilting head and removable bowl.
  • 2 Speeds (Spiral : 1st speed 100 rpm. and 2nd speed 200rpm) & (Tank : 1st speed 10rpm. and 2nd speed 20rpm and timer) with possibility of automatic or manual programming with timer or continuous.
  • Diameter of the spiral 22 mm.
  • Diameter of the tank 400 mm height 260 mm (33 liters) = 25 kg dough.



  • Digital control panel (manual or automatic operation)
  • Frame made of painted steel.
  • Rotating tank in AISI 304 stainless steel.
  • High hardness stainless steel spiral adjustable in height (intervention by a specialized technician), dividing coulter and screws in AISI 304 stainless steel.
  • Stainless steel spiral connection unit, waterproof and very solid (reinforced!).
  • Stainless steel grate with a micro safety switch.
  • Transmission by oil bath gear motor, very robust (oversized), reliable, efficient, designed for intensive use.
  • Suspended engine, better ventilation, easy maintenance
  • Low voltage controls 24 V. (IP55).
  • Comes standard with wheels, 2 of which are equipped with brakes.
  • The device is built in compliance with the current CE standards.

NB: This machine is designed for dough production with a maximum moisture content of 60%.

ADVANTAGE :
The Diamond automatic kneaders will not only allow you to select the speed, but also to program the kneading time for each speed, without requiring your intervention! They can therefore be adapted to any type of mixture. Very intuitive, easy-to-use digital controls. Tilting head and removable bowl make it easier to extract the dough. Delivered on wheels, two of which are equipped with brakes.

Technical Specification

  • mm (W x D x H) : 420 x 785 x 700 - kW (elec) : 1.4 - Voltage : 230/3 50Hz
  • Category: Diamond
  • Range: Pizza - Pasta
  • Subrange: Spiral mixer
  • Family: 33 Lit. / Tête relev. Cuve amo
  • Subfamily: 2 SPEEDS - AUTOMATIC
  • Line: ATOMIX LINE
  • Length: 420 mm
  • Width: 785 mm
  • Height: 700 mm
  • Electric Power: 1.4 kW
  • Voltage: 230/3 50Hz
  • Weight: 105 kg
  • Restock Info: Contact
  • Supplier Delivery Delay: 35
  • Availability: 1

Read more

Product form

Spiral mixer 33 liters tilting head, removable bowl, 2 speeds, - Automatic, digital, on wheels

1 in stock Fast delivery

Tilting head and removable bowl. 2 Speeds (Spiral : 1st speed 100 rpm. and 2nd speed 200rpm) & (Tank :... Read more

12.420,00 zł 10.310,00 zł

Maxigastro - only for companies with VAT registration

To purchase from Maxigastro, you must have a VAT-registered business. We do not sell to private consumers.
You will be asked for your VAT registration number before payment.

    • Guaranteed secure & safe checkout.

      shop pay
    • Fast shipping for orders on stock
    • Directly from the manufacturer to you

    Description

    • Tilting head and removable bowl.
    • 2 Speeds (Spiral : 1st speed 100 rpm. and 2nd speed 200rpm) & (Tank : 1st speed 10rpm. and 2nd speed 20rpm and timer) with possibility of automatic or manual programming with timer or continuous.
    • Diameter of the spiral 22 mm.
    • Diameter of the tank 400 mm height 260 mm (33 liters) = 25 kg dough.



    • Digital control panel (manual or automatic operation)
    • Frame made of painted steel.
    • Rotating tank in AISI 304 stainless steel.
    • High hardness stainless steel spiral adjustable in height (intervention by a specialized technician), dividing coulter and screws in AISI 304 stainless steel.
    • Stainless steel spiral connection unit, waterproof and very solid (reinforced!).
    • Stainless steel grate with a micro safety switch.
    • Transmission by oil bath gear motor, very robust (oversized), reliable, efficient, designed for intensive use.
    • Suspended engine, better ventilation, easy maintenance
    • Low voltage controls 24 V. (IP55).
    • Comes standard with wheels, 2 of which are equipped with brakes.
    • The device is built in compliance with the current CE standards.

    NB: This machine is designed for dough production with a maximum moisture content of 60%.

    ADVANTAGE :
    The Diamond automatic kneaders will not only allow you to select the speed, but also to program the kneading time for each speed, without requiring your intervention! They can therefore be adapted to any type of mixture. Very intuitive, easy-to-use digital controls. Tilting head and removable bowl make it easier to extract the dough. Delivered on wheels, two of which are equipped with brakes.

    Technical Specification

    • mm (W x D x H) : 420 x 785 x 700 - kW (elec) : 1.4 - Voltage : 230/3 50Hz
    • Category: Diamond
    • Range: Pizza - Pasta
    • Subrange: Spiral mixer
    • Family: 33 Lit. / Tête relev. Cuve amo
    • Subfamily: 2 SPEEDS - AUTOMATIC
    • Line: ATOMIX LINE
    • Length: 420 mm
    • Width: 785 mm
    • Height: 700 mm
    • Electric Power: 1.4 kW
    • Voltage: 230/3 50Hz
    • Weight: 105 kg
    • Restock Info: Contact
    • Supplier Delivery Delay: 35
    • Availability: 1

    Read more
