- Cooling capacity rendered 3490 (W/f) for chamber volume 34,3 m³/34 300L (internal T° -0°C and external T°+32°C).
- Refrigerant expansion by thermostatic valve.
- Also equipped with a high pressure switch (fixed calibration) (C-PMAX-R).

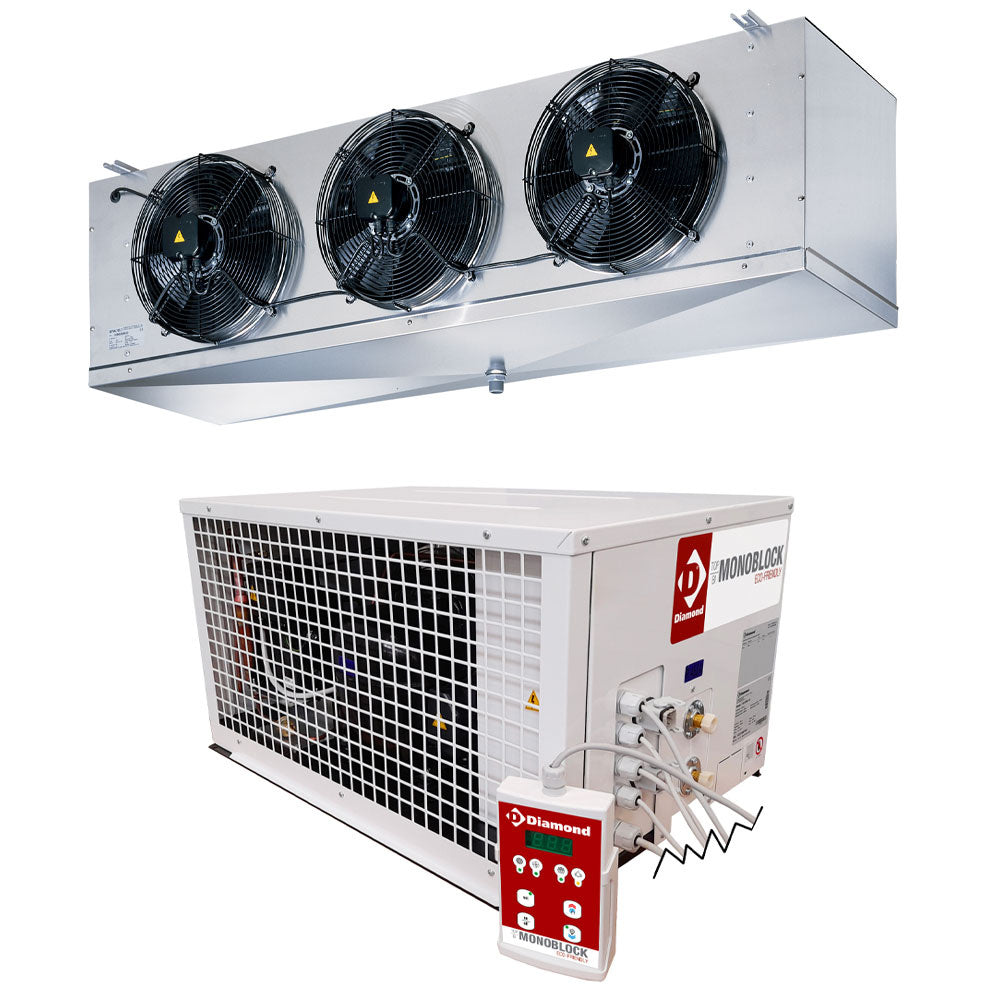

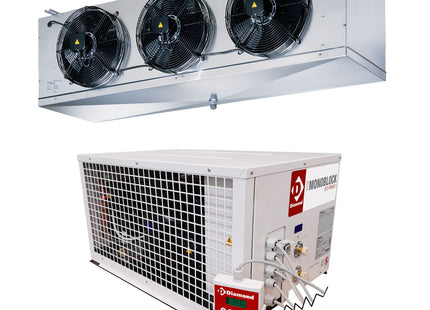

- Bi-block refrigeration units.
- Thanks to its design, the condensing unit is ideal for outdoor installation and can be placed anywhere, on the floor, ceiling, wall, etc.
- Supplied as standard with 2 wall brackets.
- Hoses (pre-loaded) and cables are supplied for connection within a 5m radius (10m optional).
- All units are supplied as standard with a high-pressure switch and a KVL valve, as well as cables for the door and light microswitches.
- Separate touch-sensitive microprocessor control panel connected to the unit by a 10m cable.
- Automatic defrosting by electric resistance, water drain located below the evaporator. The evaporator drain is fitted with a resistor to prevent ice forming.
- Unit certified for climate class 5 (40°C temperature - 40% humidity).
- R452a refrigerant gas.
- Window light supplied as standard with microswitch for door.
INFO:
Warning: as standard, the ideal ambient operating temperature must not be lower than 10°C. If this is not the case, then, a compressor preheating (H-PR-R), a pressure switch for the condenser fan (H-PVC-R) and a heated electrical panel (H-TEC-R) must be provided. In this case, the operating temperature cannot be lower than -5°C.
PLUS:
- Easily removable panels for easy access when servicing.
- Defrosting by electric resistance.
- All units are supplied with a high-pressure switch as standard. Negative units are fitted with a thermostatic valve.
Technical Specification
- mm (W x D x H) : 930&1314 x 680&402 x 460&350 - T° : -5°+5° - kW (elec) : 1.65 - Voltage : 400/3N 50Hz
- Category: Diamond
- Range: Refrigeration
- Subfamily: T°-5° +5°
- Line: BI-BLOCK
- Length: 930&1314 mm
- Width: 680&402 mm
- Height: 460&350 mm
- Electric Power: 1.65 kW
- Voltage: 400/3N 50Hz
- Weight: 131 kg
