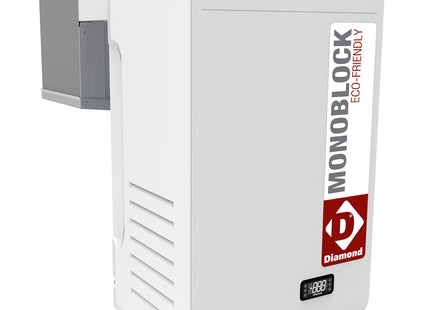

Refrigerated group "overlapping" T° -5°+5°

Description

  • Unit width 400mm, small footprint.
  • Cooling capacity rendered 1302 (W/f) for chamber volume 10,6 m³/10 600L (internal T° 0°C and external T° +32°C).
  • Refrigerant expansion by capillary.



  • Overlapping refrigeration units.
  • Climatic class 5 certified (40°C temperature - 40% humidity).
  • All units supplied as standard with high-pressure switch and KVL valve.
  • Automatic hot gas defrost with self-evaporation and overflow.
  • The evaporator drain is fitted with a resistor to prevent ice formation.
  • R452a refrigerant gas.
  • Supplied with cables and microswitch for door and light (light window supplied as standard).
  • Microprocessor control with touch-sensitive keys.

INFO:
Warning: as standard, the ideal ambient operating temperature must not be lower than 10°C. If this is not the case, then, a compressor preheating (A-PR-R), a pressure switch for the condenser fan (A-PVC-R) and a heated electrical panel (A-TEC-R) must be provided. In this case, the operating temperature cannot be lower than -5°C. Placed outdoors, the unit must be protected from weather elements.

PLUS:

  • 400mm long units with small footprint, can be fitted to all our chambers (minimum 600mm panel).
  • All units are supplied with a high-pressure switch as standard. Negative units are fitted with a thermostatic valve.

Technical Specification

  • mm (W x D x H) : 400 x 320(796) x 714 - T° : -5°+5° - kW (elec) : 0.97
  • Category: Diamond
  • Range: Refrigeration
  • Subrange: Cold & freezing rooms
  • Family: Groupes to chevauchement
  • Subfamily: T°-5° +5°
  • Line: MONOBLOCK
  • Length: 400 mm
  • Width: 320(796) mm
  • Height: 714 mm
  • Electric Power: 0.97 kW
  • Weight: 71 kg
  • Restock Info: /
  • Supplier Delivery Delay: 42
  • Availability: 0

Read more

Product form

Refrigerated group "overlapping" T° -5°+5°

Out of stock, 1-3 weeks

Unit width 400mm, small footprint. Cooling capacity rendered 1302 (W/f) for chamber volume 10,6 m³/10 600L (internal T° 0°C and... Read more

10.788,00 zł 8.957,00 zł

Maxigastro - only for companies with VAT registration

To purchase from Maxigastro, you must have a VAT-registered business. We do not sell to private consumers.
You will be asked for your VAT registration number before payment.

    • Guaranteed secure & safe checkout.

      shop pay
    • Fast shipping for orders on stock
    • Directly from the manufacturer to you

    Description

    • Unit width 400mm, small footprint.
    • Cooling capacity rendered 1302 (W/f) for chamber volume 10,6 m³/10 600L (internal T° 0°C and external T° +32°C).
    • Refrigerant expansion by capillary.



    • Overlapping refrigeration units.
    • Climatic class 5 certified (40°C temperature - 40% humidity).
    • All units supplied as standard with high-pressure switch and KVL valve.
    • Automatic hot gas defrost with self-evaporation and overflow.
    • The evaporator drain is fitted with a resistor to prevent ice formation.
    • R452a refrigerant gas.
    • Supplied with cables and microswitch for door and light (light window supplied as standard).
    • Microprocessor control with touch-sensitive keys.

    INFO:
    Warning:     as standard, the ideal ambient operating temperature must not be lower than 10°C. If this is not the case, then, a compressor preheating (A-PR-R), a pressure switch for the condenser fan (A-PVC-R) and a heated electrical panel (A-TEC-R) must be provided. In this case, the operating temperature cannot be lower than -5°C. Placed outdoors, the unit must be protected from weather elements.

    PLUS:

    • 400mm long units with small footprint, can be fitted to all our chambers (minimum 600mm panel).
    • All units are supplied with a high-pressure switch as standard. Negative units are fitted with a thermostatic valve.

    Technical Specification

    • mm (W x D x H) : 400 x 320(796) x 714 - T° : -5°+5° - kW (elec) : 0.97
    • Category: Diamond
    • Range: Refrigeration
    • Subrange: Cold & freezing rooms
    • Family: Groupes to chevauchement
    • Subfamily: T°-5° +5°
    • Line: MONOBLOCK
    • Length: 400 mm
    • Width: 320(796) mm
    • Height: 714 mm
    • Electric Power: 0.97 kW
    • Weight: 71 kg
    • Restock Info: /
    • Supplier Delivery Delay: 42
    • Availability: 0

    Read more
