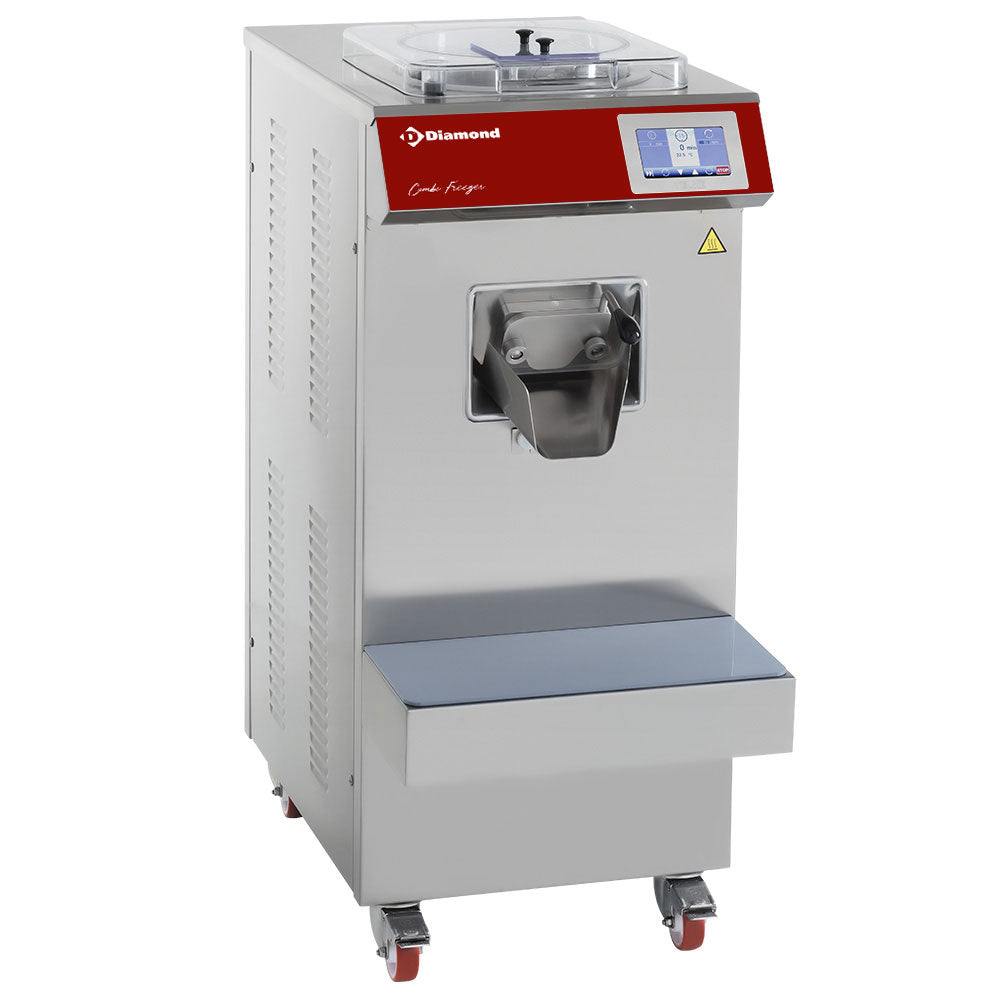

Diamond's Pasteurization Appliance Combined with Ice-Cream Turbine is a multifunctional pastoturbine designed for mixing, heating, pasteurizing, cooling and lashing all creams, sauces and mixes. This appliance features an intuitive and easy-to-use Touch Screen control panel with 18 pre-installed cycles for ice cream, pastry, and gastronomy.
The device allows for manual or fully automatic cycle operation, eliminating the need for handling or transferring products. Its vertical evaporator cylinders provide a larger exchange surface, ensuring efficient pasteurization and lashing processes.
Technical specifications
- Water condenser.
- Multifunctional pastoturbine for mixing, heating, pasteurizing, cooling and lashing all creams, sauces and mixes.
- Adjustable times and temperatures.
- Intuitive and easy to use "Touch Screen" control panel (18 pre-installed cycles: 9 for ice cream, 7 for pastry, 2 for gastronomy) with the possibility of inserting new recipes.
- Manual or fully automatic cycle.
- Pasteurization and lashing are carried out in a single cylinder, avoiding any handling or transfer.
- Vertical evaporator cylinders for a larger exchange surface.
- Exclusive distribution device.
- System self diagnosis.
- Mix per cycle: 4/8 litres.
- Cycle time: 8/40 min.
- Hourly production: 20/60 litres.
Technical Specification
- mm (W x D x H) : 510 x 700 x 1150 - kW (elec) : 6.7 - Voltage : 230/3 50Hz
- Category: Diamond
- Range: Ice cream
- Subfamily: WATER CONDENSEUR
- Length: 510 mm
- Width: 700 mm
- Height: 1150 mm
- Electric Power: 6.7 kW
- Voltage: 230/3 50Hz
- Weight: 310 kg
