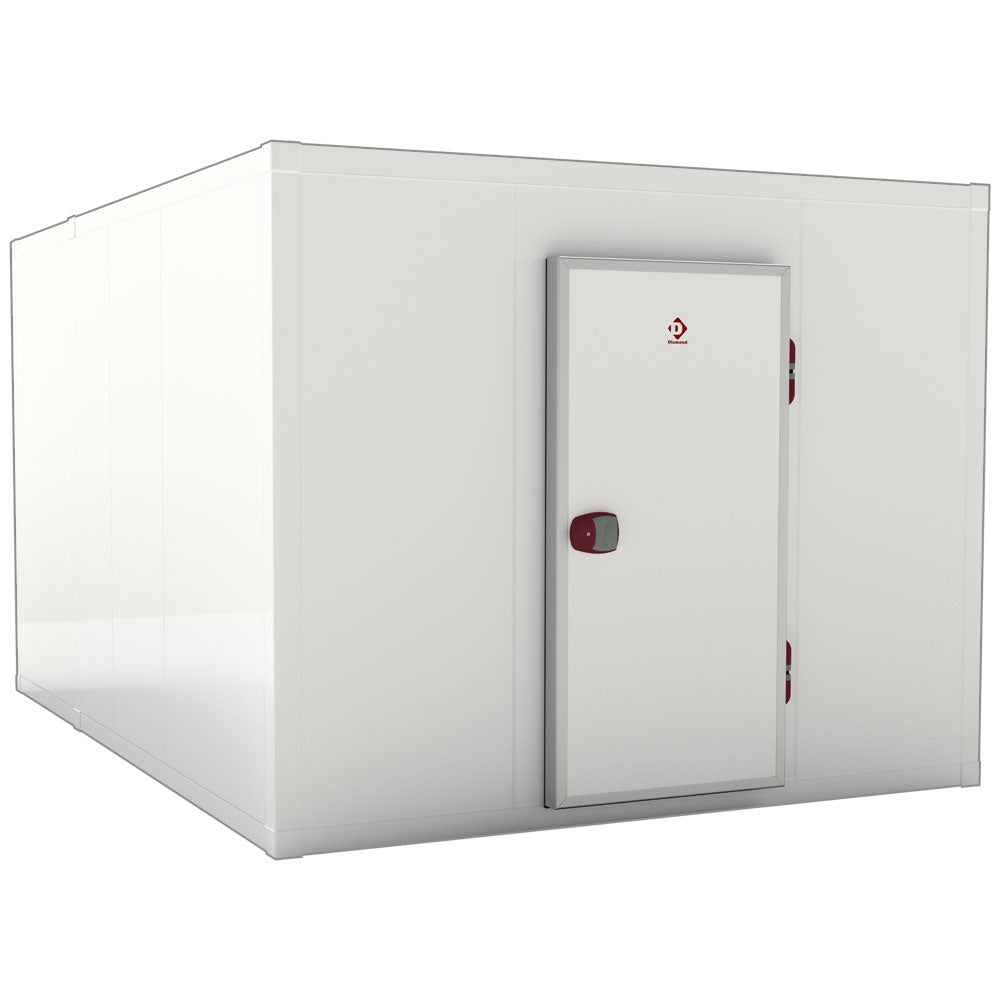

Chamber ISO 100, int. dim. 2830 x 5230 xh 2230 mm (33,01 m³)

Description

  • Internal dimensions: 2830x5230xh2230 mm.
  • Internal volume 33,01 m³.
  • Door with useful passage 900xh1900 mm (choice of door positioning on 4 sides).
  • Door seal fitted with a peripheral heating cord (for negative T°).
  • Vacuum valve (for negative T°).

  • Multipurpose chamber for positive or negative temperature, wall, floor and ceiling thickness 100mm, modulation with panels from 200 to 1200mm wide (200+200+200 etc).
  • Panels made of non-toxic, anti-scratch white-lacquered galvanised sheet steel.
  • High-density injected polyurethane insulation (43kg/m3), environmentally friendly (CFC-free).
  • Panels locked by built-in ‘eccentric’ hooks.
  • Reinforced floor in 12mm multiplex wood, covered with a ‘honeycomb’ non-slip phenolic resin, withstanding a load of 4000kg/m² (140kg point load).
  • Peripheral 90° corners with specific end caps, also insulated with polyurethane (50kg/m3) to prevent any thermal bridging.
  • The corners and edges of the floor, ceiling and walls are all rounded (R15 mm) and also insulated with polyurethane (50kg/m3).
  • 100 mm thick hinged door also insulated with polyurethane (43 kg/m3), with right-hand hinges (left-hand hinges available on request: CGC/BF), very sturdy, reinforced with an anodised aluminium perimeter frame, fitted with an EPDM pressure magnetic seal (easy replacement, no tools required), adjustable upward hinges with 100° stop, external handle with key lock, internal lock with safety device.
  • Panel certified to classification B-S3,d0 in accordance with UNI EN 13501-1:2009.
  • Equipment built in compliance with current EC standards.

PLUS :

  • Maxicold EVO, a brand new manufacturing concept, with peripheral corners and panels with linear joints, for ease of assembly and the possibility of extension at any time, with an impeccable level of finish.
  • The angles and corners are all rounded, with no transfer mouldings - 100% hygiene guaranteed.
  • Floor covered in non-slip phenolic ‘honeycomb’ resin.
  • All-round door frame in anodised aluminium, for extra protection (through transit of trolleys, ladders, etc).
  • Pre-assembly kit for panels supplied as standard, including ceiling support, making assembly safer, easier and quicker.
  • On request: modular shelving, strip curtains, trolley ramps (exterior and interior), etc.

Technical Specification

  • mm (W x D x H) : 3030 x 5430 x 2430
  • Category: Diamond
  • Range: Refrigeration
  • Subrange: Cold & freezing rooms
  • Family: Isolation 100 mm
  • Subfamily: 32,39 Vol/M3 / WHITE
  • Line: MAXICOLD 100 EVO
  • Length: 3030 mm
  • Width: 5430 mm
  • Height: 2430 mm
  • Weight: 1110 kg
  • Restock Info: Contact
  • Supplier Delivery Delay: 42
  • Availability: 2

Read more

Product form

Chamber ISO 100, int. dim. 2830 x 5230 xh 2230 mm (33,01 m³)

2 in stock Fast delivery

Internal dimensions: 2830x5230xh2230 mm. Internal volume 33,01 m³. Door with useful passage 900xh1900 mm (choice of door positioning on 4... Read more

44.251,00 zł

    • Guaranteed secure & safe checkout.

      shop pay
    • Fast shipping for orders on stock
    • Directly from the manufacturer to you

    Description

    • Internal dimensions: 2830x5230xh2230 mm.
    • Internal volume 33,01 m³.
    • Door with useful passage 900xh1900 mm (choice of door positioning on 4 sides).
    • Door seal fitted with a peripheral heating cord (for negative T°).
    • Vacuum valve (for negative T°).

    • Multipurpose chamber for positive or negative temperature, wall, floor and ceiling thickness 100mm, modulation with panels from 200 to 1200mm wide (200+200+200 etc).
    • Panels made of non-toxic, anti-scratch white-lacquered galvanised sheet steel.
    • High-density injected polyurethane insulation (43kg/m3), environmentally friendly (CFC-free).
    • Panels locked by built-in ‘eccentric’ hooks.
    • Reinforced floor in 12mm multiplex wood, covered with a ‘honeycomb’ non-slip phenolic resin, withstanding a load of 4000kg/m² (140kg point load).
    • Peripheral 90° corners with specific end caps, also insulated with polyurethane (50kg/m3) to prevent any thermal bridging.
    • The corners and edges of the floor, ceiling and walls are all rounded (R15 mm) and also insulated with polyurethane (50kg/m3).
    • 100 mm thick hinged door also insulated with polyurethane (43 kg/m3), with right-hand hinges (left-hand hinges available on request: CGC/BF), very sturdy, reinforced with an anodised aluminium perimeter frame, fitted with an EPDM pressure magnetic seal (easy replacement, no tools required), adjustable upward hinges with 100° stop, external handle with key lock, internal lock with safety device.
    • Panel certified to classification B-S3,d0 in accordance with UNI EN 13501-1:2009.
    • Equipment built in compliance with current EC standards.

    PLUS :

    • Maxicold EVO, a brand new manufacturing concept, with peripheral corners and panels with linear joints, for ease of assembly and the possibility of extension at any time, with an impeccable level of finish.
    • The angles and corners are all rounded, with no transfer mouldings - 100% hygiene guaranteed.
    • Floor covered in non-slip phenolic ‘honeycomb’ resin.
    • All-round door frame in anodised aluminium, for extra protection (through transit of trolleys, ladders, etc).
    • Pre-assembly kit for panels supplied as standard, including ceiling support, making assembly safer, easier and quicker.
    • On request: modular shelving, strip curtains, trolley ramps (exterior and interior), etc.

    Technical Specification

    • mm (W x D x H) : 3030 x 5430 x 2430
    • Category: Diamond
    • Range: Refrigeration
    • Subrange: Cold & freezing rooms
    • Family: Isolation 100 mm
    • Subfamily: 32,39 Vol/M3 / WHITE
    • Line: MAXICOLD 100 EVO
    • Length: 3030 mm
    • Width: 5430 mm
    • Height: 2430 mm
    • Weight: 1110 kg
    • Restock Info: Contact
    • Supplier Delivery Delay: 42
    • Availability: 2

    Read more
