Can be multiplexed - Create uninterrupted continuous line
Temperature Class 3M1
Heavy duty shelving with strengthening bar
Adjustable extra deep shelves to maximise capacity
Tilting function for better product display
Internal vertical LED light
Base plus 4 shelves
Glass end walls as standard

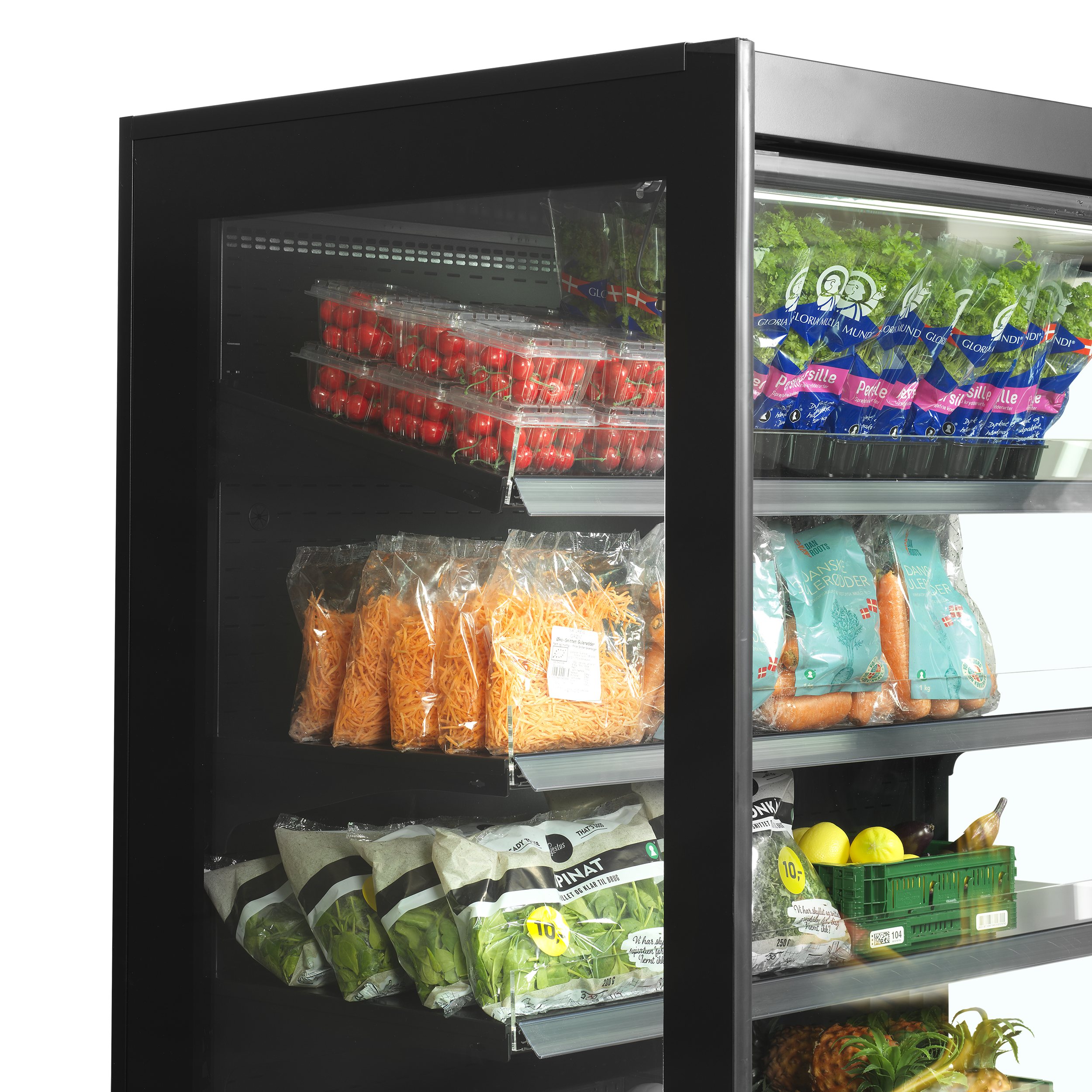

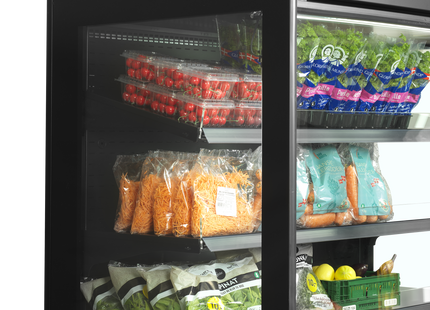

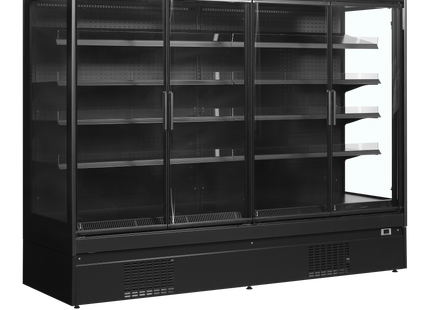

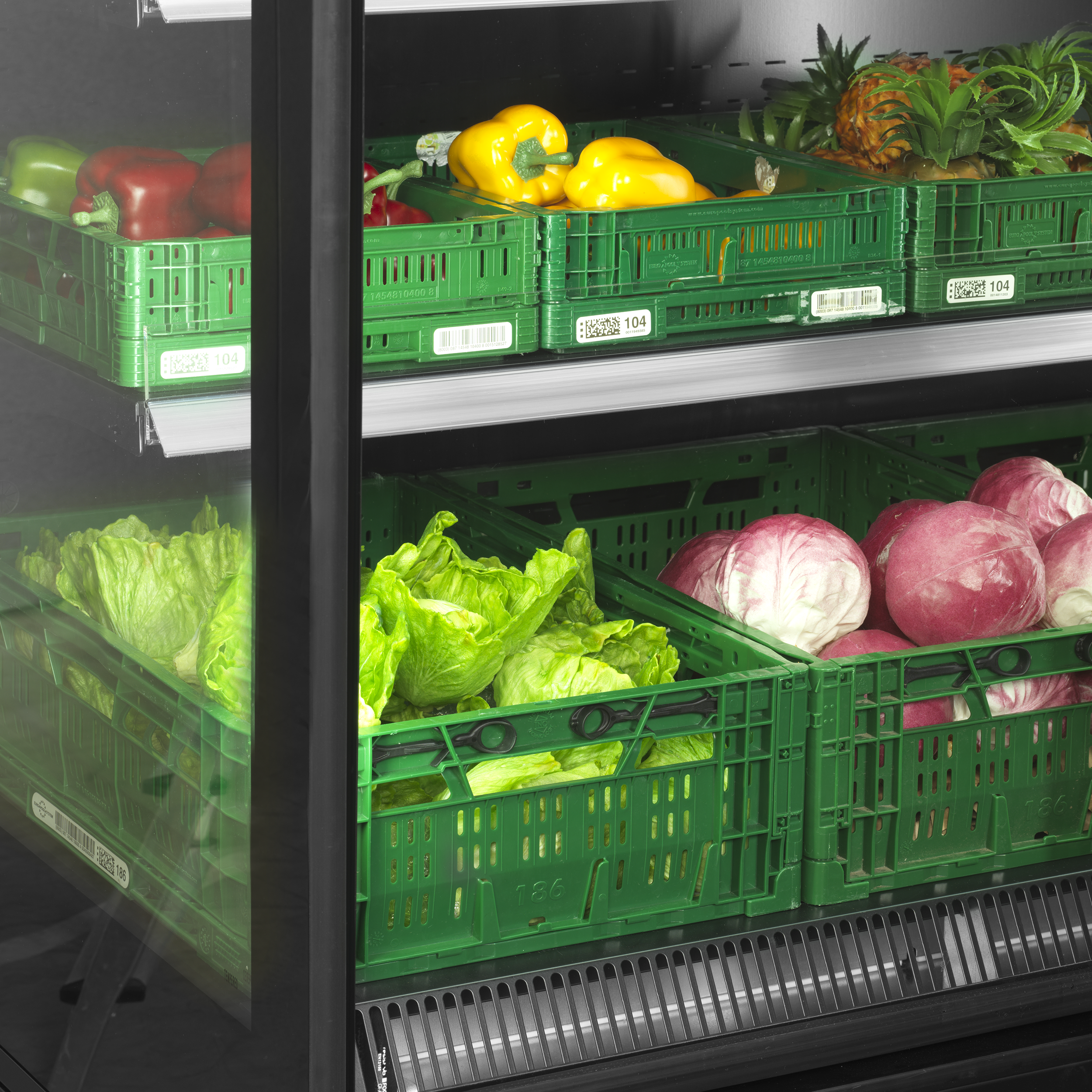

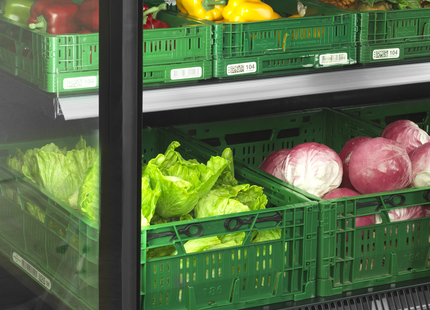

Multiplexing kit as accessoryThe EXTRA range of multideck coolers with doors and extra deep shelves is perfect for grocery shops and supermarkets. It comes in different sizes and offers great product presentation with glass doors, glass end walls, and adjustable shelves with tilting function. The EXTRA models can be multiplexed with a union kit to create uninterrupted continued shopping lines throughout the store. Despite the spaciousness of the cabinet, it has a low energy consumption.
Technical specifications
Measures and Content
-
Gross / Net Weight:
700 / 640 kg
-
40ft Container Load :
8 pcs
-
Gross / Net Volume:
1785 / 1540 l
-
Climate Class:
3
Design and Material
-
Exterior Finish:
Black / Glass
-
Interior Finish:
Black
-
Door No & Type:
4 hinged glass doors
-
Door Reversible:
No
-
Shelf Color:
Black
-
Feet / Legs:
6 adjustable feet
-
Castors:
Option
-
Interior Light:
2 x Vertically LED
Cooling and Functions
-
Type of Controller:
Electronic
-
Type of Defrost:
Automatic, hot gas
-
Refrigerant:
R290
-
Refrigerant Charge:
2x144 g
Power and Consumption
-
Energy Class:
C
-
Energy Consumption:
15.75 kWh/24h
-
Annual Energy Cons.:
5748 kWh/year
-
EEI:
29.5 %
-
Input Power:
2200 W
-
Voltage / Frequency:
220-240/50 V/Hz
-
Noise Level:
53 dB(A)
Dimensions
-
External Dimension (WxDxH):
2562 x 898 x 2035
mm
-
Internal Dimension (WxDxH):
2500 x 610 x 1399 mm
-
Packed Dimension (WxDxH):
2700 x 975 x 2230 mm
Other
-
GTIN / EAN:
5708181706753
-
Total Display Area:
3.63 m²
-
Temperature Range:
+2 to +6 °C
-
Shelves No & Type:
4 black sheet, tilting + base
-
Max load on Shelves:
100 kg/m²
-
Thermometer:
Yes
-
EPREL No:
1275860
